Hose clamp 20450715

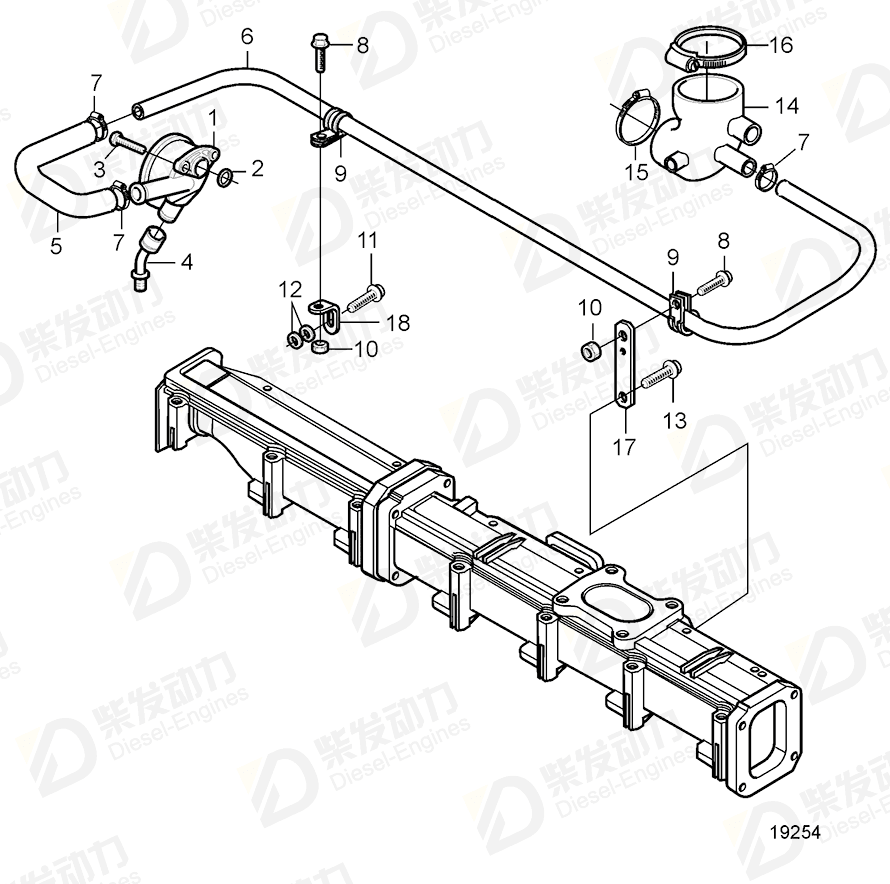

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil separator | 20412322 | 1 | |
| 2 | Gasket | 20405943 | 1 | |
| 3 | Flange screw | 20450728 | 2 | |
| 4 | Connector | 20405938 | 1 | |
| 5 | Hose | 20405629 | 1 | |
| 6 | Breather pipe | 20498075 | 1 | TAD722VE, module: 1501 0 2505 / 2511 |
| 7 | Hose clamp | 20405755 | 3 | |
| 8 | Flange screw | 984734 | 2 | |
| 9 | Clamp | 20405532 | 2 | |
| 10 | Flange nut | 990940 | 2 | |
| 11 | Flange screw | 20405792 | 1 | |
| 12 | Bushing | 20450730 | 2 | |
| 13 | Flange screw | 20412324 | 1 | |
| 14 | Manifold, stage 1 | 20450765 | 1 | SN00990956- |
| 14 | Pipe | 20499597 | 1 | |
| 14 | Pipe, stage 1 | 20506110 | 1 | SN-00990955 |
| 15 | Clip | 21019685 | 1 | |
| 16 | Hose clamp | 20450715 | 1 | |
| 17 | Connecting plate | 20450724 | 1 | |
| 18 | Bracket | 20450726 | 1 |
| Item | Part Name | Part No. |
| 16 | Hose clamp 20450715 | 20450715 |
| Details | |
| Engine model | TAD650VE, TAD660VE TAD720VE, TAD721VE TAD720VE, TAD721VE, TAD722VE TAD722VE TAD750VE TAD750VE, TAD760VE TD720VE |
| Application | Crankcase Ventilation Crankcase Ventilation, Earlier Production Crankcase Ventilation. Flat Valve Cover Crankcase Ventilation. High Mounted Turbo Crankcase Ventilation. High Mounted Turbo. Exhaust Outlet Front. Stage 2 and Tier 2 Crankcase Ventilation. High Mounted Turbo. Stage 1&2 and Tier 1&2 Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 2, Tier 2. Crankcase Ventilation. Low Mounted Turbo. Stage 1&2 and Tier 1&2 Crankcase Ventilation. Low Mounted Turbo. Stage 2, Tier 2. Not Turnable Pipe Elbow. (35°) Crankcase Ventilation. Standard Valve Cover Crankcase Ventilation. Standard Valve Cover, Earlier Production |
| Specification | |
| Descriptions | 22Timing gear casing将已选物品添加至购物车 24Timing gear casing将已选物品添加至购物车 |
