Hose clamp 926244

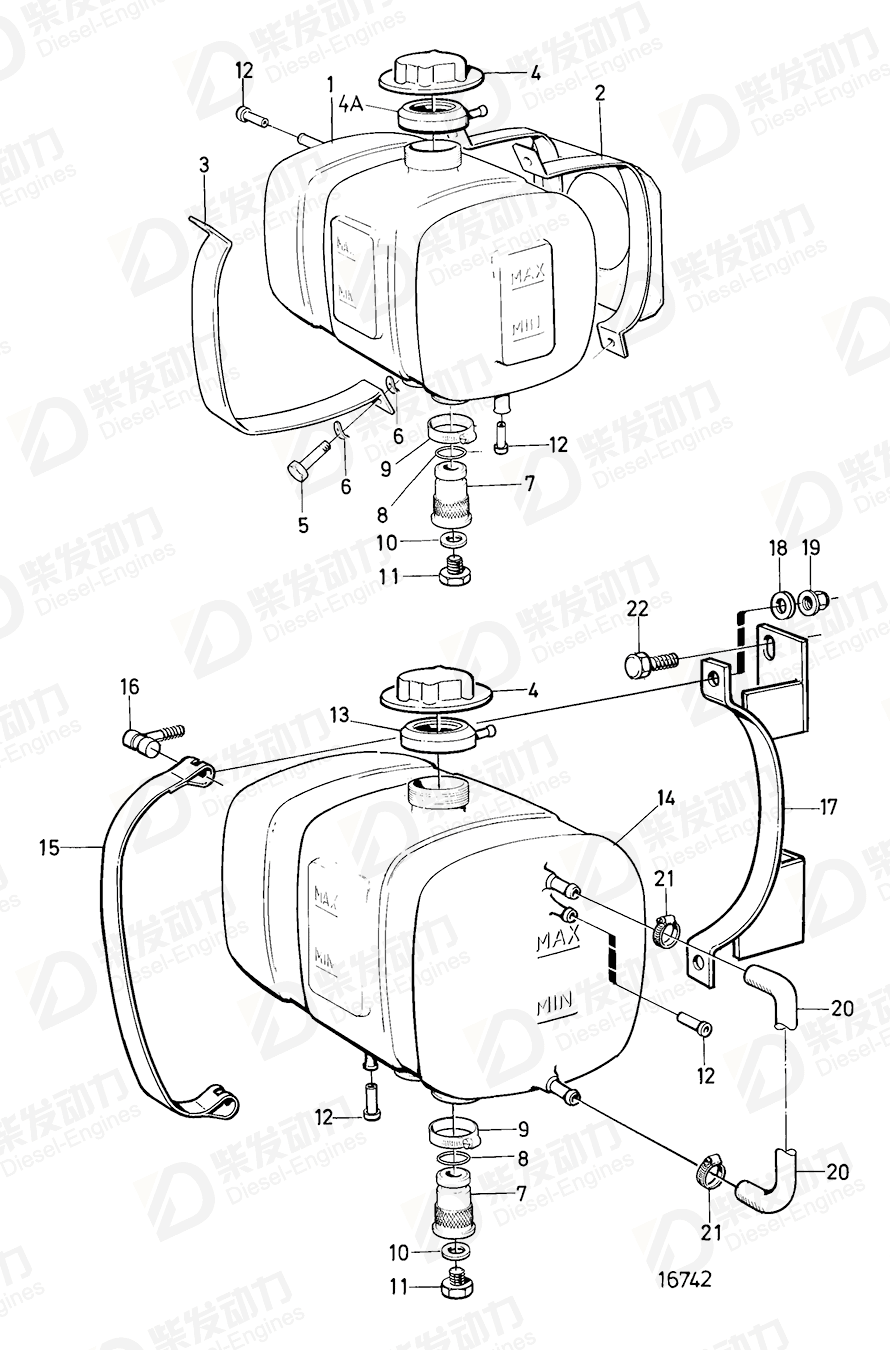

| No. | Part Name | Part Number | Qty | Description |
| 1 | Expansion tank | 4804536 | 1 | 8L |
| 2 | Attaching plate | 4952322 | 1 | |
| 3 | Strip | 4804283 | 2 | |
| 4 | Pressure cap | 1542591 | 1 | 50kPa |
| 5 | Hexagon screw | 955294 | 4 | |
| 6 | Spring washer | 941907 | 8 | |
| 7 | Nipple | 11031743 | 1 | |
| 8 | O-ring | 960164 | 1 | |
| 9 | Hose clamp | 926244 | 1 | |
| 10 | Gasket | 11994 | 1 | |
| 11 | Plug | 947660 | 1 | (836268) |
| 12 | Throttle sleeve | 865754 | 2 | |
| 13 | Rubber collar | 11110005 | 1 | (11033334) |
| 14 | Expansion tank | 11033385 | 1 | 12L |
| 15 | Tensioning band | 11075152 | 2 | |
| 16 | Pin | 11025992 | 4 | |
| 17 | Bracket | 865573 | 2 | |
| 18 | Washer | 966674 | 4 | |
| 19 | Flange lock nut | 948645 | 4 | |
| 20 | Hose | 13776 | 1 | L=450mm early type |
| 21 | Hose clamp | 994556 | 2 | |
| 22 | Hexagon screw | 955294 | 4 | |
| 4A | Collar | 11033334 | 1 | Early type |
| Item | Part Name | Part No. |
| 9 | Hose clamp 926244 | 926244 |
| Details | |
| Engine model | TD1030ME, TWD1030ME TD45B TD61A, TD61AW, TD71A, TD71AW, TID71A |
| Application | Expansion Tank of Plastic, 8 and 12L Expansion Tank with Installation Components Radiator and Fan Protection with Installation Components |
