Hose clamp 942921

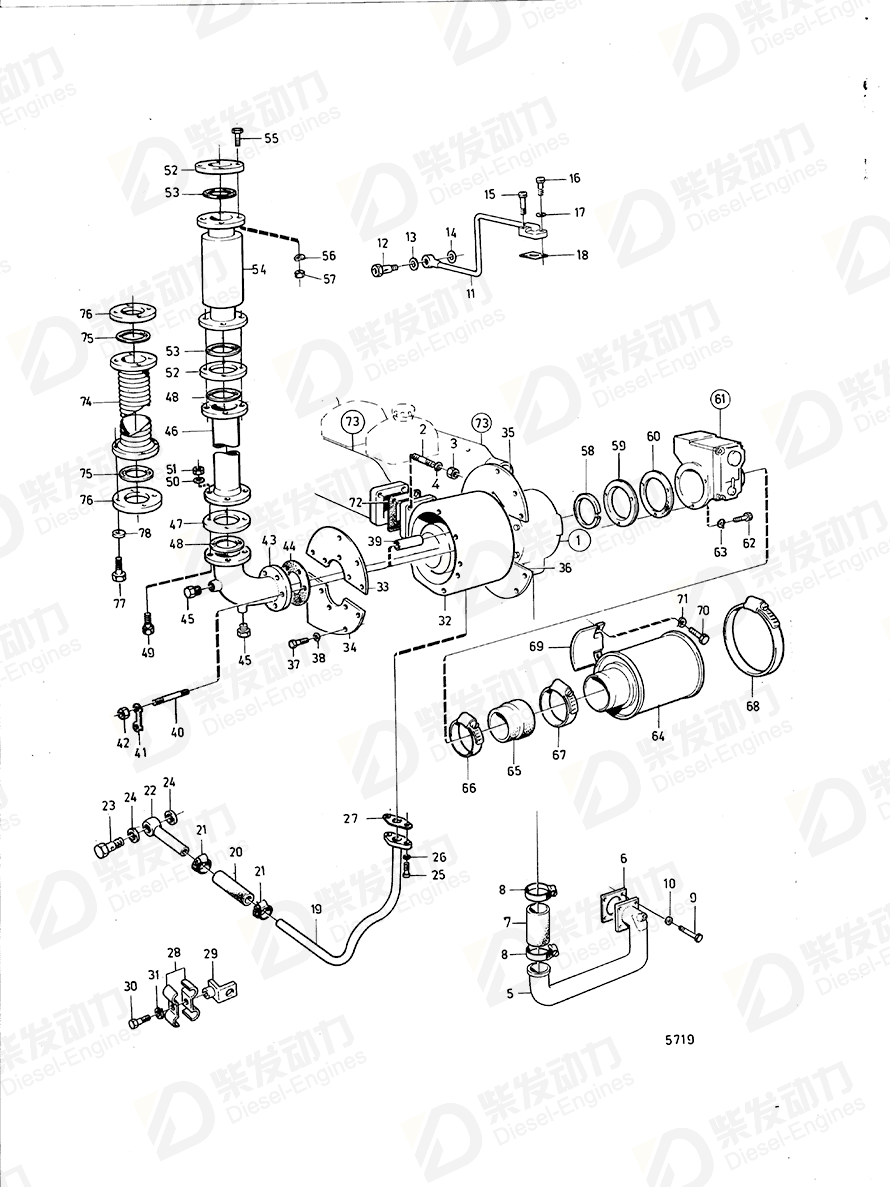

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 837455 | 1 | MO 65144/XXXXX- |
| 1 | Turbocharger | 844450 | 1 | ALT CLASS |
| 2 | Stud | 953261 | 4 | |
| 3 | Nut | 943152 | 4 | |
| 4 | Spring washer | 942336 | 4 | |
| 5 | Connecting pipe | 837561 | 1 | |
| 6 | Gasket | 466271 | 1 | |
| 7 | Hose | 952986 | 1 | L=55mm |
| 8 | Hose clamp | 943482 | 2 | (951798) |
| 9 | Hex. socket screw | 956570 | 4 | |
| 10 | Spring washer | 941907 | 4 | |
| 11 | Tube | 823543 | 1 | MO 21083/XXXXX- |
| 12 | Hollow screw | 844116 | 1 | SEE GROUP 3 |
| 13 | Gasket | 942703 | 1 | |
| 14 | Gasket | 957181 | 1 | |
| 15 | Hex. socket screw | 956585 | 1 | L=32mm |
| 16 | Hex. socket screw | 956584 | 1 | L=25mm |
| 17 | Spring washer | 942336 | 2 | |
| 18 | Gasket | 417378 | 1 | |
| 19 | Oil return pipe | 823544 | 1 | MO 21083/XXXXX- |
| 20 | Hose | 192358 | 1 | L=170mm MOXXXXX/31956 |
| 21 | Hose clamp | 943474 | 2 | |
| 22 | Tube | 896780 | 1 | |
| 23 | Hollow screw | 191929 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 24 | Gasket | 957185 | 2 | |
| 25 | Hexagon screw | 940115 | 2 | |
| 26 | Spring washer | 942336 | 2 | |
| 27 | Gasket | 417381 | 1 | |
| 28 | Clamp | 820851 | 2 | Replaced by 1pc 837555, 1pc 867553, 2pcs 955295, 2pcs 941907, 1pc 837554, 4PCS 924079, 1pc 842378, 1pc 466327, 2pcs 961672, 1pc 837557, 1pc 837556, 1pc 837868, 1pc 837810. |
| 29 | Bracket | 820853 | 1 | |
| 30 | Hexagon screw | 940100 | 1 | |
| 31 | Spring washer | 941906 | 1 | |
| 32 | Heat shield | 823352 | 1 | MO 21083/XXXXX- |
| 33 | Protecting plate | 823241 | 1 | MO 21083/XXXXX- |
| 34 | Protecting plate | 823242 | 1 | MO 21083/XXXXX- |
| 35 | Protecting plate | 823243 | 1 | MO 21083/XXXXX- |
| 36 | Protecting plate | 823244 | 1 | MO 21083/XXXXX- |
| 37 | Hexagon screw | 940113 | 20 | |
| 38 | Spring washer | 941907 | 20 | |
| 39 | Spacer sleeve | 820916 | 6 | MO 21083/XXXXX- |
| 40 | Stud | 953272 | 6 | MO 21083/XXXXX- |
| 41 | Tab washer | 15193 | 3 | |
| 42 | Nut | 943152 | 6 | |
| 43 | Exhaust pipe elbow | 823336 | 1 | MO 21083/XXXXX- |
| 44 | Gasket | 411710 | 1 | |
| 45 | Plug | 192154 | 2 | MO 21083/XXXXX- |
| 46 | Exhaust hose | 820900 | 1 | |
| 47 | Flange | 807625 | 1 | |
| 48 | Gasket | 807578 | 2 | |
| 49 | Hexagon screw | 955592 | 4 | |
| 50 | Spring washer | 941912 | 4 | |
| 51 | Hexagon nut | 955829 | 4 | Pusher type, For tropic radiator |
| 52 | Weld flange | 842005 | 2 | For tropic radiator |
| 53 | Gasket | 807578 | 2 | |
| 54 | Silencer | 827021 | 1 | For tropic radiator |
| 55 | Hexagon screw | 955591 | 8 | Pusher type, For tropic radiator |
| 56 | Spring washer | 941912 | 8 | |
| 57 | Hexagon nut | 955829 | 8 | Pusher type, For tropic radiator |
| 58 | Clamping ring | 843703 | 1 | ÅKERMAN. |
| 59 | Attaching ring | 843704 | 1 | ÅKERMAN. |
| 60 | Gasket | 843718 | 1 | ÅKERMAN. |
| 62 | Hex. socket screw | 959221 | 2 | ÅKERMAN., L = 22 MM |
| 62 | Hex. socket screw | 959231 | 1 | ÅKERMAN., L = 70 MM |
| 63 | Spring washer | 941907 | 3 | |
| 64 | Air filter | 842280 | 1 | |
| 65 | Fitting | 843409 | 1 | |
| 66 | Hose clamp | 943483 | 1 | (951800) |
| 67 | Hose clamp | 943484 | 1 | (951801) |
| 68 | Hose clamp | 942921 | 1 | |
| 69 | Bracket | 843431 | 1 | |
| 70 | Hexagon screw | 955512 | 2 | |
| 71 | Spring washer | 941906 | 2 | |
| 72 | Gasket | 417382 | 1 | |
| 74 | Compensator | 843087 | 1 | L = 85 MM |
| 74 | Compensator | 843088 | 1 | L = 185 MM |
| 75 | Gasket | 807578 | 2 | |
| 76 | Flange | 820905 | 2 | |
| 77 | Hexagon screw | 955365 | 8 | |
| 78 | Spring washer | 941912 | 8 |
| Item | Part Name | Part No. |
| 68 | Hose clamp 942921 | 942921 |
| Details | |
| Engine model | D100BHC, D100BRC TD100AHC, TD100ARC TD100CHC TD100CRC |
| Application | Induction and Exhaust Manifold: A Induction and Exhaust Manifold: B INDUCTION AND EXHAUST SYSTEM |
| Specification | |
| Descriptions | When emergency stop is mounted. |
