Hose clamp 943477

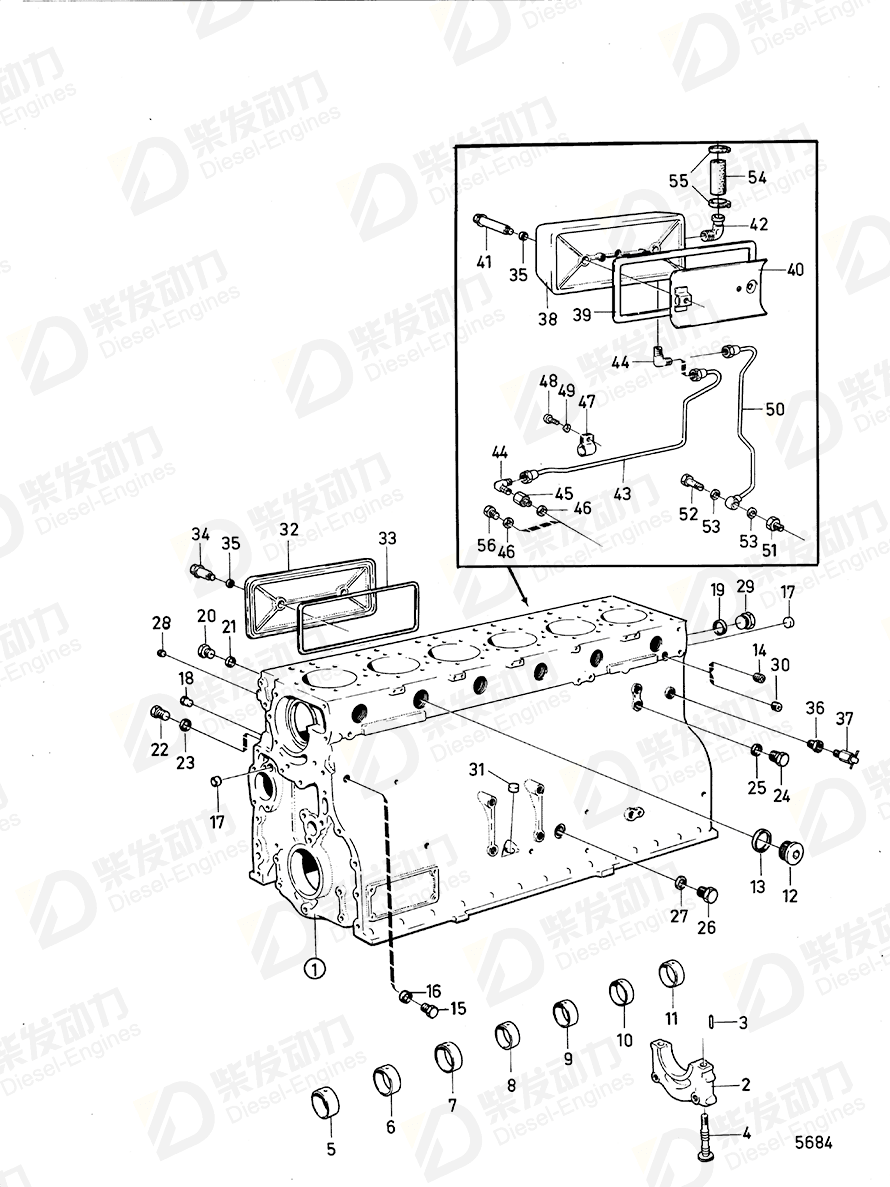

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 1545210 | 1 | |
| 3 | Pin | 422426 | 1 | |
| 4 | Flange screw | 422067 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 467367 | 5 | |
| 12 | Plug | 821335 | 1 | |
| 13 | Gasket | 469328 | 6 | |
| 14 | Plug | 942734 | 1 | |
| 15 | Plug | 180761 | 1 | |
| 16 | Gasket | 11996 | 1 | |
| 17 | Cap plug | 955083 | 3 | |
| 18 | Plug | 422369 | 7 | |
| 19 | Gasket | 468463 | 1 | |
| 20 | Plug | 16318 | 3 | |
| 21 | Gasket | 907132 | 3 | |
| 22 | Plug | 190798 | 2 | |
| 23 | Gasket | 18818 | 2 | |
| 24 | Plug | 191025 | 1 | |
| 25 | Gasket | 957178 | 1 | |
| 26 | Plug | 192114 | 1 | |
| 27 | Gasket | 957185 | 1 | |
| 28 | Plug | 952075 | 1 | |
| 29 | Plug | 467366 | 1 | |
| 30 | Plug | 952077 | 1 | |
| 31 | Cap plug | 955082 | 2 | |
| 32 | Inspection cover | 423120 | 2 | |
| 33 | Gasket | 467409 | 2 | |
| 34 | Shoulder screw | 422541 | 4 | |
| 35 | Sealing ring | 424342 | 4 | |
| 36 | Reduction nipple | 190130 | 1 | |
| 37 | Shut-off cock | 947893 | 1 | |
| 38 | Crankcase ventilatio | 824365 | 1 | |
| 39 | Gasket | 824343 | 1 | |
| 40 | Splash plate | 824369 | 1 | |
| 41 | Screw | 823742 | 2 | |
| 42 | Hose attachment | 815239 | 1 | |
| 43 | Tube | 837214 | 1 | |
| 44 | Elbow nipple | 954342 | 2 | |
| 44 | Elbow nipple | 954343 | 1 | Engine with oil supervision in rear oil pan cover |
| 45 | Nipple | 942347 | 1 | |
| 46 | Gasket | 957182 | 1 | |
| 47 | Attaching clamp | 18301 | 1 | |
| 48 | Hexagon screw | 955523 | 1 | |
| 49 | Spring washer | 941907 | 1 | |
| 50 | Oil pipe | 842135 | 1 | |
| 51 | Nipple | 947807 | 1 | |
| 52 | Hollow screw | 74040 | 1 | |
| 53 | Gasket | 957175 | 2 | |
| 54 | Hose | 952973 | 1 | L = 110 MM |
| 55 | Hose clamp | 943477 | 2 | |
| 56 | Plug | 190798 | 1 |
| Item | Part Name | Part No. |
| 55 | Hose clamp 943477 | 943477 |
| Details | |
| Engine model | D100BHC D100BRC D42A TD164KAE |
| Application | CYLINDER BLOCK: A CYLINDER BLOCK: B Lubricating System RADIATOR AND FAN WITH INSTALLATION COMPONENTS, SPEC.9969 |
| Specification | |
| Descriptions | (951793) |
