Hose clamp 943482

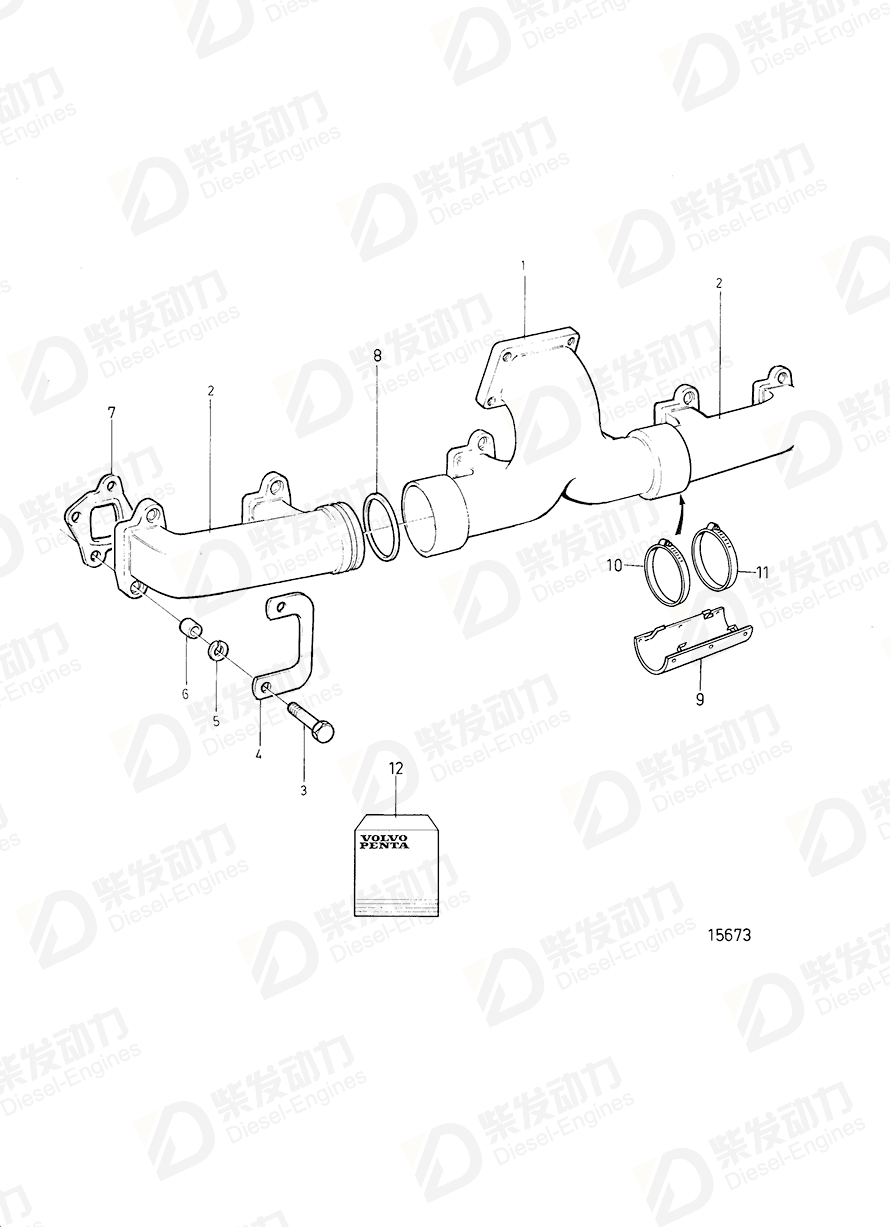

| No. | Part Name | Part Number | Qty | Description |
| 1 | Exhaust pipe | 836266 | 1 | |
| 2 | Exhaust pipe | 423274 | 2 | |
| 3 | Hexagon screw | 973522 | 12 | |
| 4 | Lock washer | 423350 | 6 | |
| 5 | Washer | 941744 | 12 | |
| 6 | Spacer sleeve | 422217 | 12 | |
| 7 | Gasket | 470534 | 6 | Included in gasket kit. |
| 8 | Sealing ring | 423057 | 4 | |
| 9 | Radiation shield | 822987 | 1 | |
| 10 | Hose clamp | 943482 | 1 | (951798) |
| 11 | Hose clamp | 943479 | 1 | |
| 12 | Gasket kit, exhaust manifold | 876050 | 1 | See group 99 |
| Item | Part Name | Part No. |
| 10 | Hose clamp 943482 | 943482 |
| Details | |
| Engine model | D100A D100B D120A D42A TAD120AHC TAD1230P, TD121GP-87, TWD1210P, TWD1211P TAD720GE TAD720VE, TAD721VE TAD730GE, TAD731GE TD100A TD100AHC, TD100ARC TD100G-87 TD100G-87, TD1030ME TD100G-87, TD1030VE TD100GG-87 TD100HP-87 TD120A TD120AHC, TD120ARC TD120C TD120G TD120GG TD120HPP TD1210G TD121G TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE TD121GG TD121GG-86 TD121GP-87 TD420VE, TAD420VE TD720GE, TAD720GE TD720VE TID120FPP TID120HPP TID121FG TWD1010G TWD1030ME TWD1231VE |
| Application | Air Filter Air Filter (Not for low-mounted Turbo) Air Filter and Installation Components Air Filter and Installation Components: A Air Filter and Installation Components: B Air Filter and Installation Components: C Air Filter and Installation Components: TD100HPB87 Air Filter, Side Installation Crankcase Ventilation. High Mounted Turbo Crankcase Ventilation. High Mounted Turbo. Exhaust Outlet Front Crankcase Ventilation. Low Mounted Turbo Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front Crankcase Ventilation. Low Mounted Turbo. Exhaust Outlet Front. Stage 1, Tier 1 Exhaust Manifold, High Mounted Turbo Exhaust Manifold, High Mounted Turbo: A Exhaust Manifold, High Mounted Turbo: B Exhaust Pipe and Installation Components INDUCTION AND EXHAUST SYSTEM Induction and Exhaust System: A Induction Manifold with Starter Element Induction- and Exhaust Manifold Induction- and Exhaust Manifold: A Induction- and Exhaust Manifold: B Induction- and Exhaust Manifold: C INDUCTION-AND EXHAUST MANIFOLD: A INDUCTION-AND EXHAUST MANIFOLD: B SILENCER AND INSTALLATION COMPONENTS SILENCER AND INSTALLATION COMPONENTS, POWER PACK SILENCER AND INSTALLATION COMPONENTS: B SILENCER AND INSTALLATION COMPONENTS: TID121FP Turbo and Installation Components Turbo and Installation Components, Classed Engine Turbo and Installation Components: A Turbo and Installation Components: B Turbo and Installation Components: C Turbo and Installation Components: TD120HP86 TURBO AND INSTALLATION COMPONENTS: TID121FP Turbo, High Mounted SN-2120147401 Turbo, High Mounted SN2120147402- Turbo, High Mounted SNXXXXXXXXXX/147402-, SN-XXXXXXXXXX/238056 Turbo, High Mounted, SNXXXXXXXXXX/238057-: A Turbocharger Turbocharger, High Mounted: A |
| Specification | |
| Descriptions | (951798) (951799) Alt, earlier prod D=95mm Early type For low-mounted turbo. MO83030/XXXX-. When coolant supervision is mounted, MD70BK spec 867116 MOXXXX/9685-, (951799) |
