Hose nipple 977508

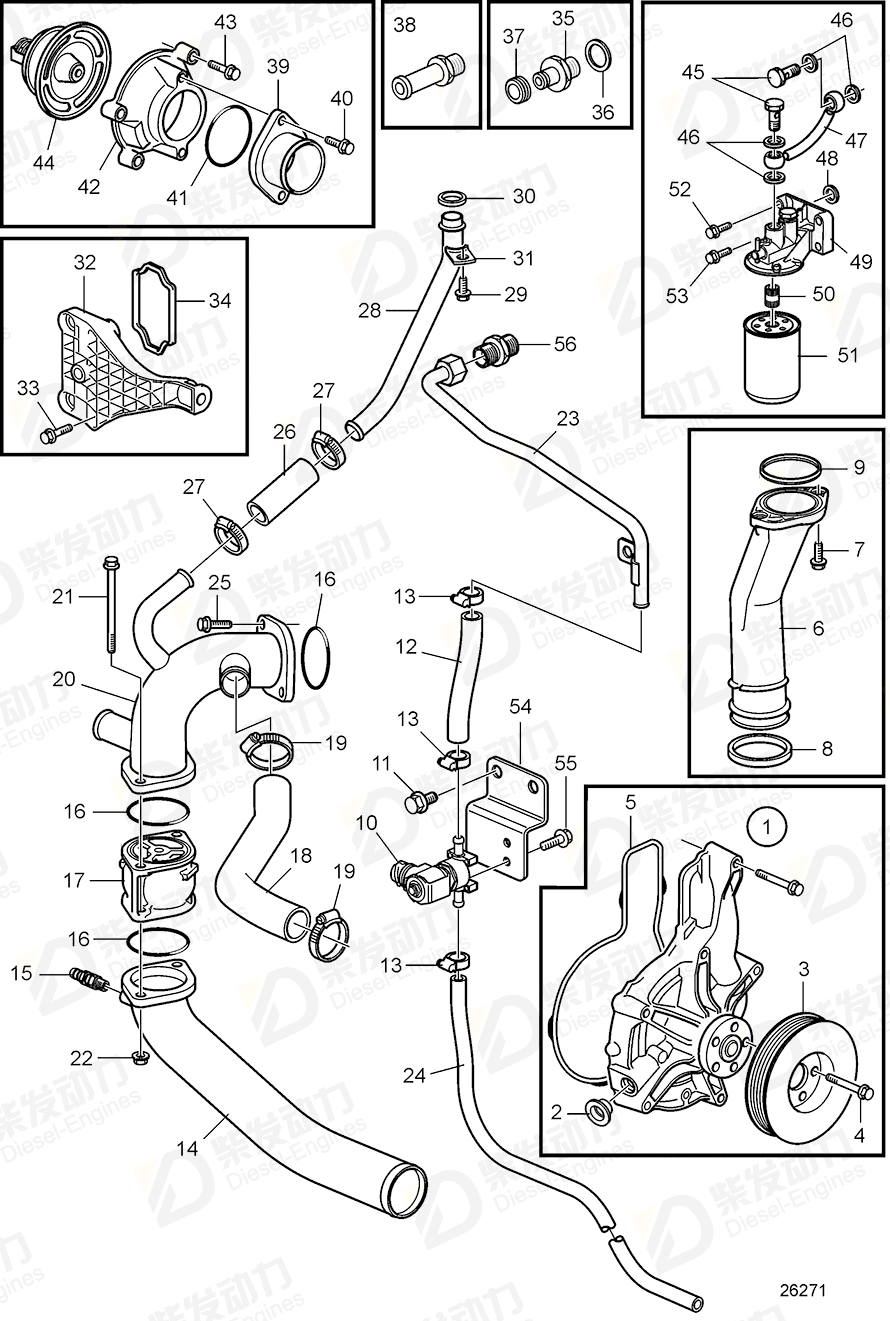

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 3801102 | 1 | Replaced by 3801418 |
| 1 | Coolant pump, exch | 3801741 | 1 | |
| 1 | Pump unit | 20744939 | 1 | Replaced by 21228793 |
| 1 | Pump unit | 21228793 | 1 | Replaced by 21468471 |
| 1 | Pump unit | 21468471 | 1 | SN9185- |
| 1 | Pump unit | 22195450 | 1 | |
| 1 | Pump unit | 22902431 | 1 | |
| 2 | Cap | 842235 | 1 | |
| 3 | Pulley | 20538853 | 1 | For water pump 20744939 |
| 4 | Flange screw | 984732 | 5 | |
| 5 | Rubber moulding | 21103569 | 1 | |
| 5 | Rubber moulding | 21415427 | 1 | |
| 6 | Connection pipe | 20823005 | 1 | Replaced by connection pipe 21423788 and sealing ring 21423788 |
| 6 | Connection pipe | 21420336 | 1 | |
| 7 | Flange screw | 984734 | 2 | |
| 8 | Sealing ring | 20799996 | 1 | (425137) |
| 9 | Gasket | 20818346 | 1 | Replaced by sealing ring 21423788 and connection pipe 21420336 |
| 9 | Sealing ring | 21423788 | 1 | For pipe 21420336 |
| 10 | Valve | 3886586 | 1 | Replaced by 21544701 |
| 10 | Valve | 21544701 | 1 | |
| 11 | Flange screw | 946502 | 2 | When rubber cushions not been used for the radiator., L=20mm |
| 12 | Rubber hose | 946652 | 1 | L=400mm |
| 13 | Hose clamp | 994556 | 3 | |
| 14 | Coolant pipe | 3842381 | 1 | |
| 15 | Shut-off cock | 966871 | 1 | |
| 16 | O-ring | 975675 | 3 | |
| 17 | Overflow valve | 21331354 | 1 | |
| 18 | Hose | 952973 | 1 | L = 110 MM |
| 19 | Hose clamp | 994561 | 2 | |
| 20 | Coolant pipe | 3841787 | 1 | |
| 21 | Flange screw | 984744 | 2 | |
| 22 | Flange nut | 990940 | 2 | |
| 23 | Valve kit | 21836402 | 1 | |
| 24 | Rubber hose | 946652 | 1 | L=400mm |
| 25 | Flange screw | 984735 | 2 | |
| 26 | Rubber hose | 969033 | 1 | L=75mm |
| 27 | Hose clamp | 961666 | 2 | |
| 28 | Pipe connection | 3842116 | 1 | |
| 29 | Flange screw | 984733 | 1 | |
| 30 | Lock brace | 1546531 | 1 | |
| 31 | Sealing ring | 1547252 | 1 | |
| 32 | Cover | 20727018 | 1 | |
| 33 | Flange screw | 984735 | 4 | |
| 34 | Seal | 8131154 | 1 | |
| 35 | Nipple | 1676622 | 1 | |
| 36 | Gasket | 979099 | 1 | |
| 37 | Protecting cap | 476279 | 1 | |
| 38 | Hose nipple | 977508 | 1 | |
| 39 | Coolant pipe | 3943401 | 1 | |
| 40 | Flange screw | 984735 | 2 | |
| 41 | O-ring | 975675 | 1 | |
| 42 | Cover | 3838404 | 1 | |
| 43 | Flange screw | 984736 | 4 | |
| 44 | Thermostat | 21237213 | 1 | 82°C, Replaced by 21412639 |
| 44 | Thermostat | 21412639 | 1 | 82°C |
| 44 | Thermostat | 21412642 | 1 | For TWD1643GE, TWD1663GE |
| 44 | Thermostat | 21613426 | 1 | |
| 45 | Hollow screw | 25167 | 2 | |
| 46 | Gasket | 969011 | 4 | |
| 47 | Hose | 20729344 | 1 | |
| 48 | Sealing ring | 469846 | 1 | |
| 49 | Bracket | 20459650 | 1 | |
| 50 | Nipple | 1676554 | 1 | |
| 51 | Coolant filter | 20532237 | 1 | |
| 52 | Flange screw | 984736 | 3 | |
| 53 | Flange screw | 994386 | 1 | |
| 55 | Flange screw | 996061 | 2 | |
| 56 | Nipple | 192639 | 1 |
| Item | Part Name | Part No. |
| 38 | Hose nipple 977508 | 977508 |
| Details | |
| Engine model | TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD1652GE, TWD1653GE |
| Application | Cooling Water Pump and Thermostat Housing Water Pump, Thermostat Housing and Water Filter, Radiator Cooling. SN-2016064436 Water Pump, Thermostat Housing and Water Filter, Radiator Cooling. SN-2016080035. Water Pump, Thermostat Housing and Water Filter, Radiator Cooling. SN2016064437-SN2016080035. |
