Housing 471784

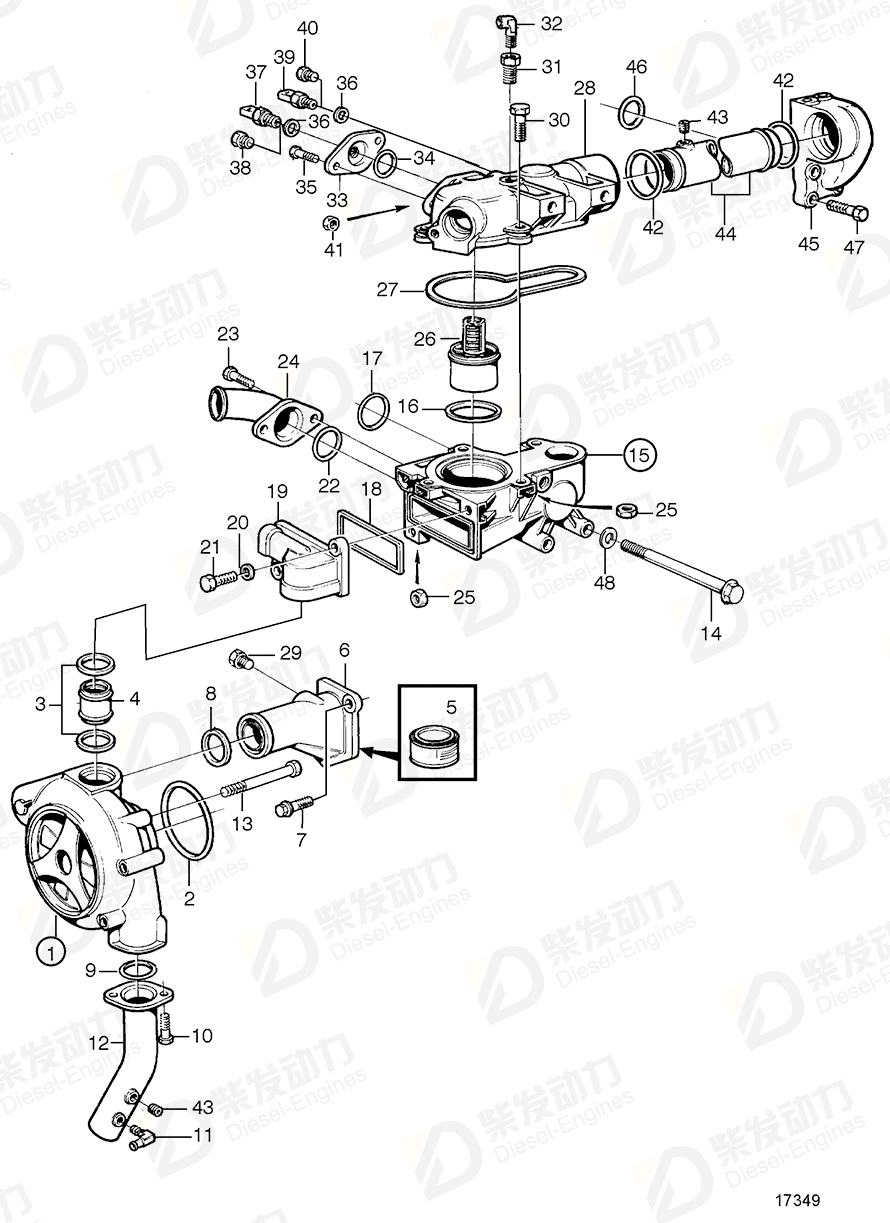

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 477397 | 1 | E.U=3803203, Repl by 477770-2 |
| 1 | Coolant pump | 477770 | 1 | Repl by 8192050-6 |
| 1 | Coolant pump | 8192050 | 1 | Repl by 3183908 |
| 2 | O-ring | 925095 | 1 | |
| 3 | Sealing ring | 469982 | 2 | |
| 4 | Tube | 471634 | 1 | |
| 5 | Sealant | 1161231 | 1 | 304ml |
| 5 | Sealant | 1161277 | 1 | 20g |
| 6 | Spacer | 421756 | 1 | |
| 7 | Flange screw | 946472 | 2 | |
| 8 | Sealing ring | 471629 | 1 | |
| 9 | O-ring | 925092 | 1 | |
| 10 | Flange screw | 945444 | 2 | |
| 11 | Elbow nipple | 942649 | 1 | |
| 12 | Coolant pipe | 848143 | 1 | |
| 13 | Flange screw | 965190 | 4 | |
| 14 | Flange screw | 965189 | 3 | |
| 15 | Thermostat housing | 876628 | 1 | Anodic treatment., (471780) |
| 16 | Sealing ring | 1544710 | 1 | |
| 17 | O-ring | 477059 | 1 | |
| 18 | Sealing ring | 471816 | 1 | |
| 19 | Housing | 471784 | 1 | |
| 20 | Spring washer | 941907 | 4 | |
| 21 | Flange screw | 945444 | 2 | |
| 22 | O-ring | 925092 | 1 | |
| 23 | Flange screw | 945444 | 2 | |
| 24 | Water pipe | 848381 | 1 | |
| 25 | Hexagon nut | 955782 | 5 | |
| 26 | Thermostat | 1661993 | 1 | 76°C |
| 27 | Sealing ring | 471788 | 1 | |
| 28 | Cover | 477905 | 1 | |
| 29 | Plug | 479976 | 1 | (946559) |
| 30 | Flange screw | 946470 | 4 | |
| 31 | Nipple | 862109 | 1 | |
| 32 | Elbow nipple | 479953 | 1 | |
| 33 | Flange | 862618 | 1 | |
| 34 | Sealing ring | 469477 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type (424345) |
| 35 | Flange screw | 945444 | 2 | |
| 36 | Gasket | 947624 | 1 | |
| 38 | Plug | 960632 | 1 | |
| 40 | Plug | 960632 | 1 | |
| 41 | Hexagon nut | 955782 | 2 | |
| 42 | Sealing ring | 469982 | 2 | |
| 43 | Plug | 479977 | 2 | |
| 44 | Tube | 848656 | 1 | |
| 45 | Connecting pipe | 465911 | 1 | |
| 46 | O-ring | 477059 | 1 | |
| 47 | Flange screw | 965186 | 2 | |
| 47 | Flange screw | 965187 | 1 | |
| 48 | Spring washer | 941908 | 3 |
| Item | Part Name | Part No. |
| 19 | Housing 471784 | 471784 |
| Details | |
| Engine model | TAD730G TAD730P TD610M TD610V TD61A, TD61AW, TD61ACE TD61AG TD61AP TD630ME TD630VE TD640VE TD710G TD71A, TD71AW, TD71ACE TD71A, TD730VE, TAD730V TD71AG, TD71AP TD730ME |
| Application | Thermostat and Water Pump Water Pump and Thermostat Housing Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B Water Pump and Thermostat Housing: C |
| Specification | |
| Descriptions | SN-XXXXXXXXXX/23336., For engine with plate oil cooler. Std Up to SN-XXXXXXXXXX/23336 and from SNXXXXXXXXXX/43621-, For engine with plate oil cooler or without oil cooler. |
