Housing 876797

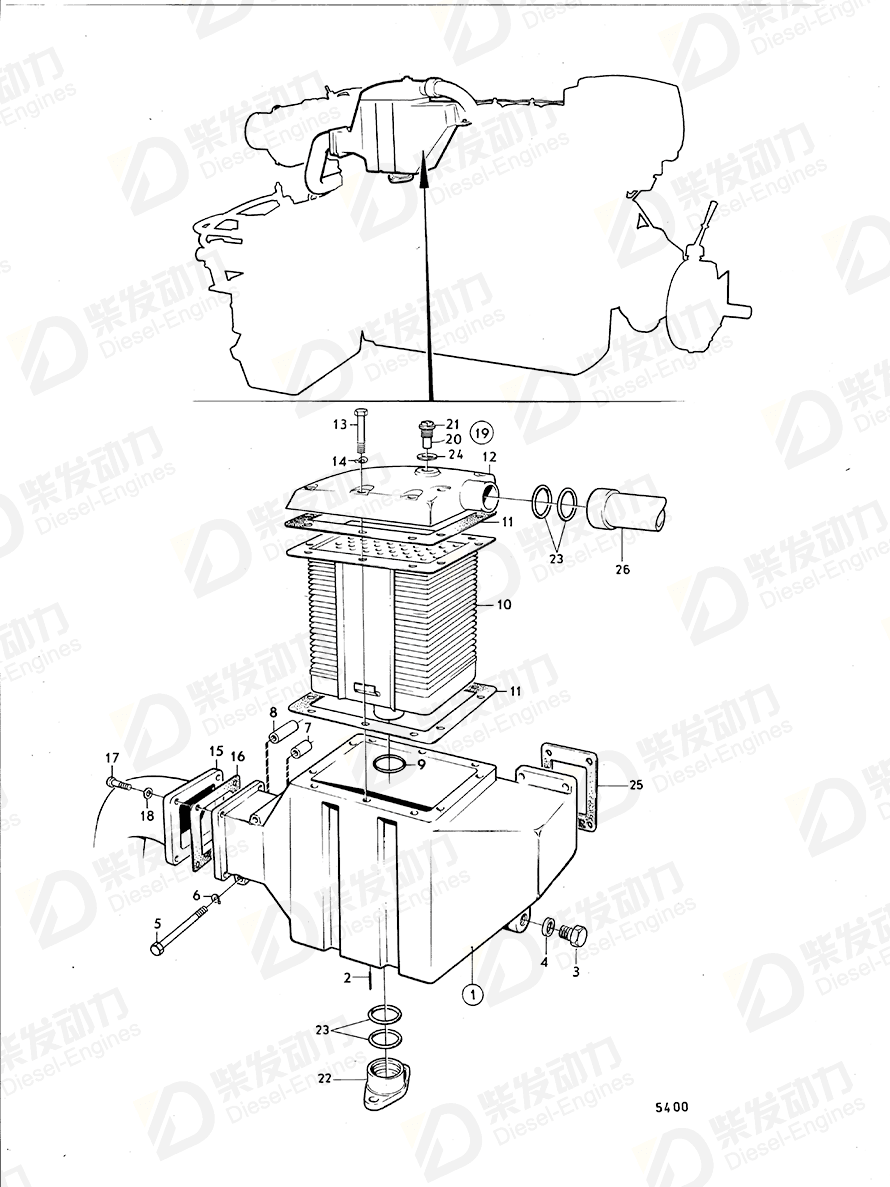

| No. | Part Name | Part Number | Qty | Description |
| 1 | Housing | 842392 | 1 | Repl by 876797 |
| 1 | Housing | 876797 | 1 | |
| 2 | Spring pin | 951941 | 1 | |
| 3 | Plug | 960632 | 1 | |
| 4 | Gasket | 957181 | 1 | |
| 5 | Hexagon screw | 945749 | 2 | |
| 6 | Spring washer | 941907 | 2 | |
| 7 | Spacer sleeve | 836838 | 1 | SNXXXXX19090- |
| 8 | Spacer sleeve | 823498 | 1 | |
| 9 | O-ring | 925254 | 1 | |
| 10 | Insert | 842779 | 1 | |
| 11 | Gasket | 836015 | 2 | |
| 12 | Cap | 843590 | 1 | |
| 13 | Hexagon screw | 940161 | 10 | For engine with 40° angle of inclination, L=45mm |
| 14 | Spring washer | 941907 | 10 | |
| 15 | Intake bend | 837481 | 1 | |
| 16 | Gasket | 836026 | 1 | |
| 17 | Hex. socket screw | 956570 | 4 | |
| 18 | Spring washer | 941907 | 4 | |
| 19 | Zinc anode | 823661 | 1 | |
| 20 | Zinc anode | 823661 | 1 | |
| 21 | Plug | 823662 | 1 | |
| 22 | Pipe connection | 843565 | 1 | |
| 23 | O-ring | 925092 | 4 | |
| 24 | Gasket | 836169 | 1 | Early type |
| 25 | Gasket | 844629 | 1 | |
| 26 | Coolant pipe | 843587 | 1 |
| Item | Part Name | Part No. |
| 1 | Housing 876797 | 876797 |
| Details | |
| Engine model | TAD120BHC TAD120CHC TAD121CHC |
| Application | After Cooler with Installation Components |
