Hub 1664000

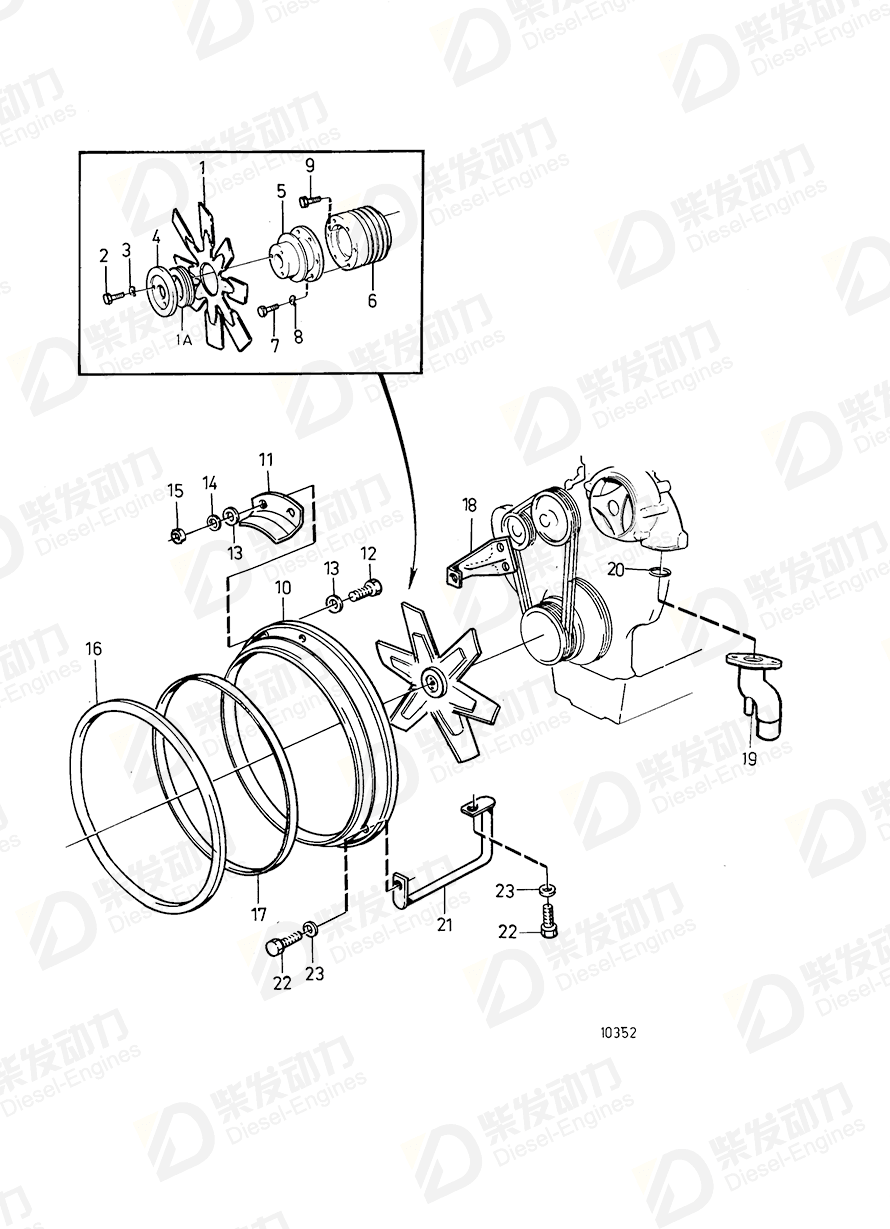

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fan | 1542830 | 1 | (1661996) |
| 2 | Flange screw | 946473 | 3 | |
| 2 | Hexagon screw | 955329 | 3 | |
| 3 | Spring washer | 941908 | 3 | |
| 4 | Washer | 1661997 | 1 | Replaced by 1pc hub 1674165,1pc lever 1674166 and 3PC screw 946473., Early type, M10 |
| 4 | Washer | 1674166 | 1 | |
| 5 | Hub | 1664000 | 1 | Replaced by 1pc hub 1674165,1pc lever 1674166 and 3PC screw 946473., Early type, M10 |
| 5 | Hub | 1674165 | 1 | |
| 6 | Pulley | 466493 | 1 | For crankshaft mounted fan (4-groove). |
| 7 | Hexagon screw | 940132 | 6 | |
| 8 | Spring washer | 941907 | 6 | |
| 9 | Flange screw | 471529 | 8 | |
| 10 | Fan ring | 1660127 | 1 | |
| 11 | Hatch | 476746 | 1 | |
| 12 | Hexagon screw | 955272 | 2 | |
| 13 | Washer | 960139 | 2 | MO201374/XXXXX- |
| 14 | Spring washer | 941906 | 2 | |
| 15 | Nut plate | 1544435 | 2 | |
| 16 | Sealing strip | 476614 | 1 | |
| 17 | Hose clamp | 1544652 | 1 | |
| 18 | Bracket | 476046 | 1 | |
| 19 | Tube | 476025 | 1 | |
| 1A | Spacer | 1661363 | 1 | For 844800 |
| 20 | O-ring | 925092 | 1 | |
| 21 | Bracket | 1542800 | 2 | |
| 22 | Flange screw | 947760 | 2 | M8x40mm |
| 22 | Hexagon screw | 955298 | 4 | L=50mm |
| 23 | Spring washer | 941907 | 6 |
| Item | Part Name | Part No. |
| 5 | Hub 1664000 | 1664000 |
| Details | |
| Engine model | TD61A, TD61AW, TD71A, TD71AW, TID71A |
| Application | Crankshaft Mounted Fan *early Production Crankshaft Mounted Fan *late Production |
| Specification | |
| Descriptions | Replaced by 1pc hub 1674165,1pc lever 1674166 and 3PC screw 946473., Early type M10 Replaced by 1pc hub 1674165,1pc lever 1674166 and 3PC screw 946473., Early type, M10 |
