Idler gear 421046

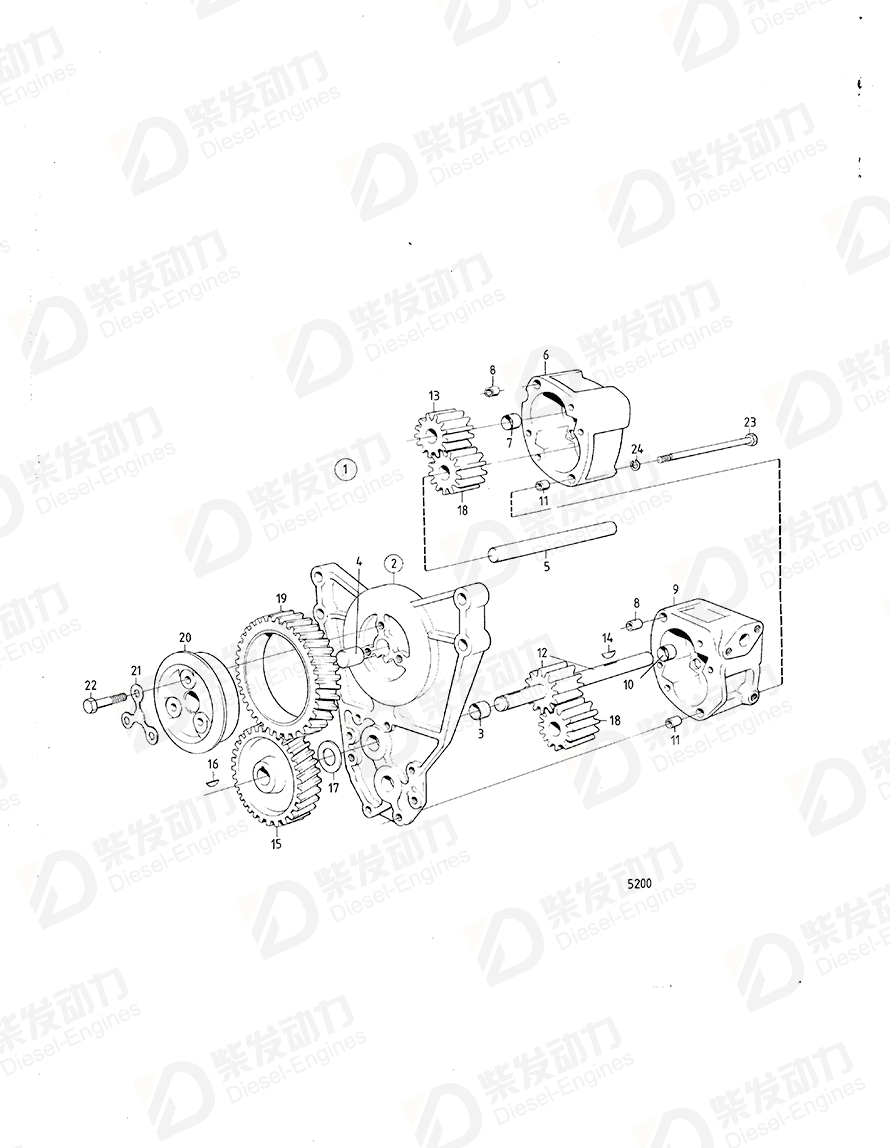

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 4774185 | 1 | |
| 2 | Bracket | 4774186 | 1 | |
| 3 | Bushing | 470234 | 1 | (940359) |
| 4 | Pin | 191171 | 1 | |
| 7 | Bushing | 470234 | 1 | (940359) |
| 8 | Guide sleeve | 401146 | 2 | |
| 10 | Bearing bushing | 941683 | 1 | |
| 11 | Guide sleeve | 401146 | 2 | |
| 12 | Shaft | 4774190 | 1 | |
| 13 | Gear | 471065 | 1 | |
| 14 | Woodruff key | 422329 | 1 | |
| 15 | Gear | 469177 | 1 | |
| 16 | Woodruff key | 910115 | 1 | |
| 17 | Washer | 424133 | 1 | |
| 18 | Gear | 466535 | 2 | |
| 19 | Idler gear | 421046 | 1 | |
| 20 | Bearing sleeve | 420048 | 1 | |
| 21 | Lock washer | 421076 | 1 | |
| 22 | Hexagon screw | 940186 | 3 | |
| 23 | Hexagon screw | 192548 | 2 | |
| 24 | Spring washer | 941907 | 2 |
| Item | Part Name | Part No. |
| 19 | Idler gear 421046 | 421046 |
| Details | |
| Engine model | D70B TD60A, TD60B TD60D TD60D-83 TD70B TD70G TD70G-83 TID60D TID60DG TID70G |
| Application | Oil Pump Timing Gear Casing and Gears Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B TIMING GEAR CASING AND GEARS: C |
