Injection pump 3801277

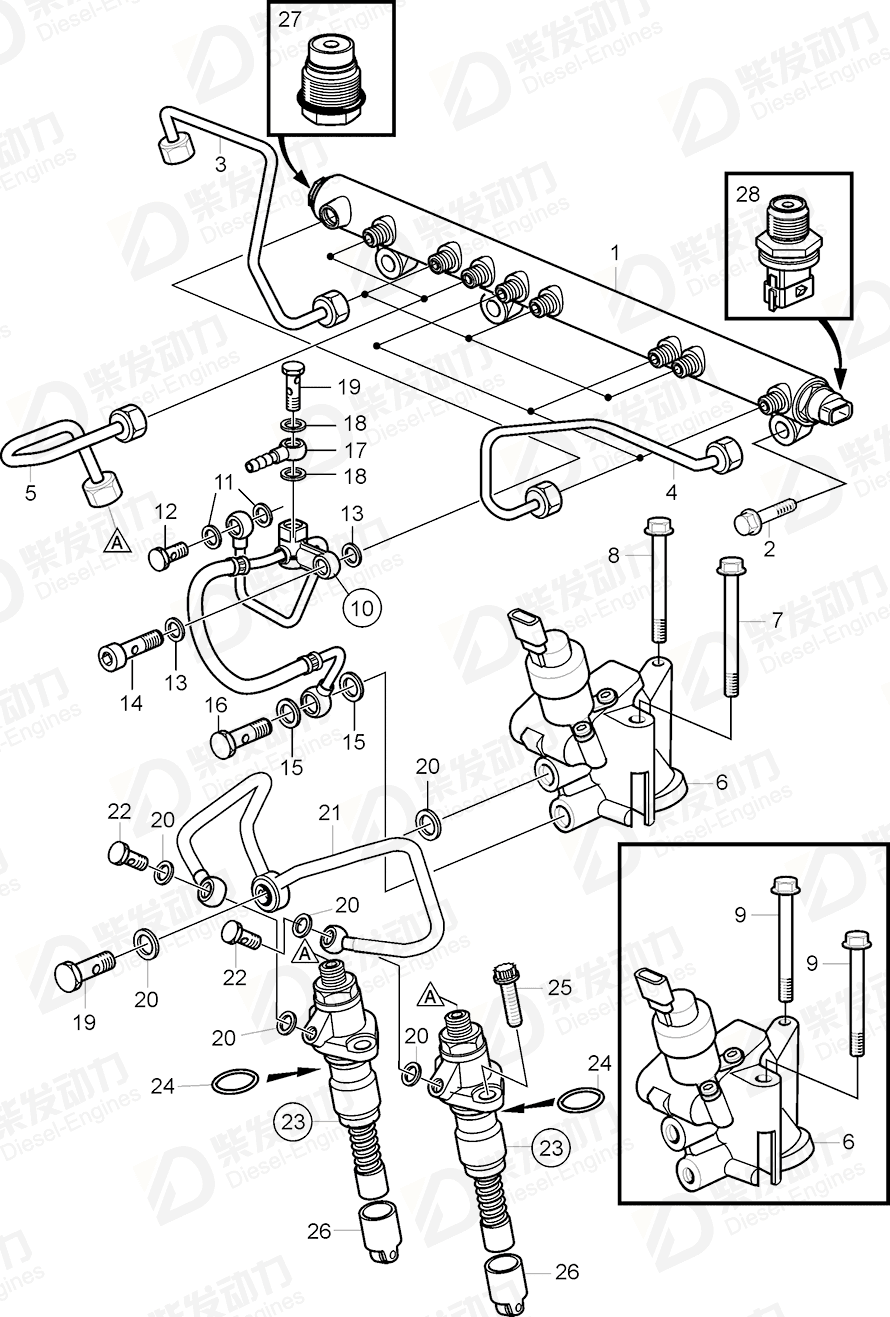

| No. | Part Name | Part Number | Qty | Description |
| 1 | Rail | 20798896 | 1 | |
| 2 | Flange screw | 20405504 | 3 | |
| 3 | Pressure pipe | 20798669 | 3 | Cyl 1,2,3 |
| 3 | Pipe | 21120386 | 3 | Cyl 1,2,3, Replaces 20798669 |
| 4 | Pressure pipe | 20798672 | 3 | Cyl 4,5,6 |
| 4 | Pipe | 21120396 | 3 | Cyl 4,5,6, Replaces 20798672 |
| 5 | Pipe | 20838156 | 2 | High pressure pump, Replaced by 21120405 |
| 5 | Pipe | 21120405 | 2 | To Rail, Replaced by 21271184 |
| 5 | Pipe | 21271184 | 2 | |
| 6 | Fuel regulator | 21060258 | 1 | Replaced by 21103266, SN10437707- |
| 6 | Fuel regulator | 21103266 | 1 | Replaced by 21638691 |
| 6 | Fuel regulator | 21638691 | 1 | |
| 7 | Flange screw | 20792140 | 1 | |
| 8 | Flange screw | 984741 | 1 | L=70mm |
| 9 | Flange screw | 20405723 | 2 | |
| 10 | Return line | 20914335 | 1 | SN10190622-10437706 |
| 11 | Gasket | 993605 | 2 | |
| 12 | Hollow screw | 20460936 | 1 | |
| 13 | Gasket | 947622 | 2 | |
| 14 | Hollow screw | 21045291 | 1 | |
| 15 | Gasket | 982724 | 2 | |
| 16 | Hollow screw | 21169170 | 1 | L=36mm, Only with 21060258 or later |
| 17 | Banjo nipple | 20459906 | 1 | For engines without EDC unit. |
| 18 | Gasket | 969011 | 2 | |
| 19 | Hollow screw | 25167 | 2 | |
| 20 | Gasket | 969011 | 6 | |
| 21 | Fuel pipe | 20838200 | 1 | |
| 22 | Hollow screw | 20460936 | 2 | |
| 23 | Injection pump, exch | 3801103 | 2 | SN-10560511, Only together with 3801103 |
| 23 | Injection pump | 3801277 | 2 | SN10560512-, Only together with 3801277 |
| 24 | O-ring | 20792162 | 2 | |
| 25 | Flange screw | 20793558 | 4 | |
| 26 | Tappet | 20795661 | 2 |
| Item | Part Name | Part No. |
| 23 | Injection pump 3801277 | 3801277 |
| Details | |
| Engine model | TAD650VE TAD650VE, TAD660VE TAD660VE |
| Application | Common Rail System. Common Rail System. SN-10190621 Common Rail System. SN10190622-10435292 Common Rail System. SN10435293- Common Rail System. SN10437707-10460706 Common Rail System. SN10460707- |
| Specification | |
| Descriptions | SN10560512- SN10560512-, Only together with 3801277 |
