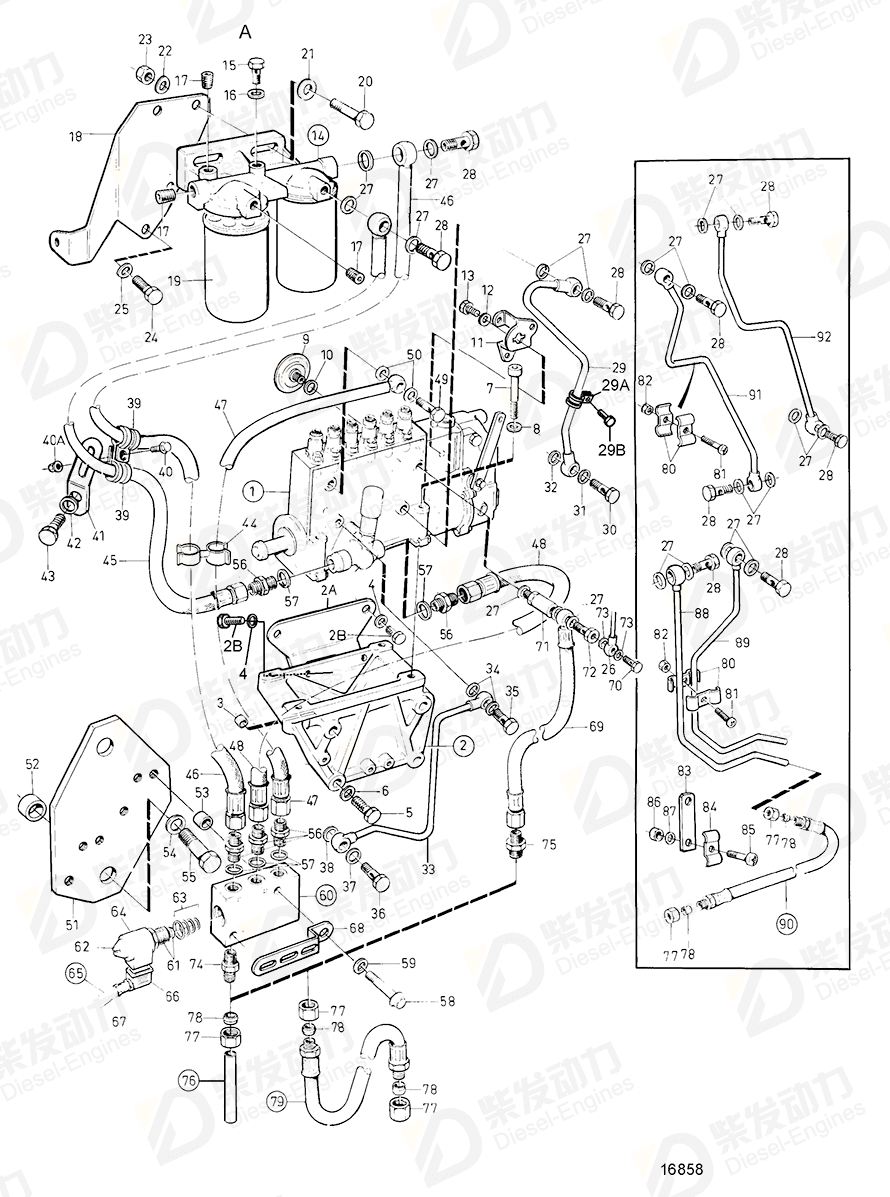

Injection pump 3803720
| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 865851 | 1 | |
| 1 | Injection pump | 3803720 | 1 | |
| 2 | Bracket | 866784 | 1 | |
| 3 | Guide sleeve | 423161 | 2 | |
| 4 | Washer | 940097 | 4 | |
| 5 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 6 | Spring washer | 940280 | 4 | |
| 7 | Hexagon screw | 940156 | 4 | |
| 8 | Washer | 190509 | 4 | |
| 9 | Pressure equalizer | 477173 | 1 | (466398) |
| 10 | Gasket | 969011 | 1 | |
| 11 | Lever, fuel inj. pump | 4804923 | 1 | |
| 12 | Spring washer | 941906 | 1 | |
| 13 | Hexagon screw | 955637 | 1 | |
| 14 | Housing | 1676832 | 1 | Repl by 8194541 |
| 14 | Fuel filter housing | 8194541 | 1 | |
| 15 | Hollow screw | 471177 | 1 | |
| 16 | Gasket | 947620 | 1 | (233321) |
| 17 | Plug | 968062 | 3 | |
| 18 | Bracket | 476438 | 1 | |
| 19 | Fuel filter | 3825133 | 2 | |
| 20 | Hexagon screw | 940162 | 1 | MO-XXXXX/105194 |
| 20 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 21 | Washer | 960142 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 22 | Spring washer | 942336 | 2 | |
| 23 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 24 | Hexagon screw | 940114 | 2 | |
| 25 | Spring washer | 942336 | 2 | |
| 26 | Leak-off line | 470185 | 1 | |
| 27 | Gasket | 969011 | 1 | |
| 28 | Hollow screw | 25167 | 1 | |
| 29 | Oil return pipe | 478964 | 1 | |
| 2B | Hexagon screw | 479696 | 4 | |
| 30 | Hollow screw | 942007 | 1 | (954394) |
| 31 | Gasket | 11998 | 1 | |
| 32 | Gasket | 942703 | 1 | |
| 33 | Oil pressure pipe | 866615 | 1 | |
| 34 | Gasket | 947281 | 2 | |
| 35 | Hollow screw | 48634 | 1 | |
| 36 | Hollow screw | 942081 | 1 | |
| 37 | Gasket | 11998 | 1 | |
| 38 | Gasket | 18666 | 1 | |
| 39 | Clamp | 952631 | 2 | |
| 40 | Flange screw | 967949 | 1 | |
| 41 | Bracket | 965552 | 1 | |
| 44 | Retainer | 9205207 | 2 | |
| 45 | Hose | 3826263 | 1 | |
| 46 | Fuel hose | 3825602 | 1 | |
| 47 | Fuel hose | 3825603 | 1 | |
| 48 | Hose | 3826142 | 1 | |
| 49 | Hollow screw | 25167 | 1 | |
| 50 | Gasket | 969011 | 2 | |
| 51 | Bracket | 3826145 | 1 | |
| 52 | Spacer sleeve | 1678297 | 2 | |
| 53 | Spacer sleeve | 843075 | 2 | |
| 54 | Spring washer | 940280 | 2 | |
| 55 | Hexagon screw | 955570 | 2 | Alt L=89mm |
| 56 | Nipple | 941754 | 5 | |
| 57 | Gasket | 969011 | 5 | |
| 58 | Flange screw | 973924 | 2 | |
| 59 | Washer | 976944 | 2 | |
| 60 | Fuel valve | 3828983 | 1 | |
| 63 | Gasket kit | 3828981 | 1 | |
| 64 | Magnet | 3825240 | 1 | |
| 65 | Cable kit | 866927 | 1 | |
| 66 | Housing | 866664 | 1 | |
| 67 | Grommet | 844576 | 1 | |
| 68 | Bracket | 845999 | 1 | |
| 69 | Fuel hose | 3825603 | 1 | |
| 70 | Hollow screw | 74033 | 1 | |
| 71 | Overflow valve | 3825154 | 1 | |
| 72 | Hollow screw | 16496 | 1 | |
| 73 | Gasket | 947620 | 2 | (233321) |
| 74 | Nipple | 977677 | 1 | |
| 75 | Nipple | 957055 | 1 | |
| 76 | Fuel pipe | 3825770 | 2 | |
| 77 | Fitting nut | 956983 | 6 | |
| 78 | Ferrule | 956969 | 6 | |
| 79 | Fuel hose | 865737 | 2 | |
| 80 | Attaching clamp | 404279 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 81 | Cross recessed screw | 950047 | 2 | |
| 82 | Hexagon nut | 955825 | 2 | Late type |
| 83 | Bracket | 965545 | 1 | |
| 84 | Attaching clamp | 404279 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 85 | Cross recessed screw | 950048 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 86 | Hexagon nut | 955825 | 1 | Late type |
| 87 | Washer | 955893 | 1 | |
| 88 | Fuel pipe | 865760 | 1 | |
| 89 | Fuel pipe | 866933 | 1 | |
| 90 | Fuel hose | 865737 | 2 | |
| 91 | Fuel pipe | 468480 | 1 | |
| 92 | Tube | 468481 | 1 | |
| 29A | Clamp | 952623 | 1 | |
| 29B | Cross recessed screw | 950045 | 1 |
| Item | Part Name | Part No. |
| 1 | Injection pump 3803720 | 3803720 |
| Details | |
| Engine model | TAD1230P TAD1230V |
| Application | Fuel Injection Pump, Components Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve |
| Specification | |
| Descriptions | E.U=3803720 |
