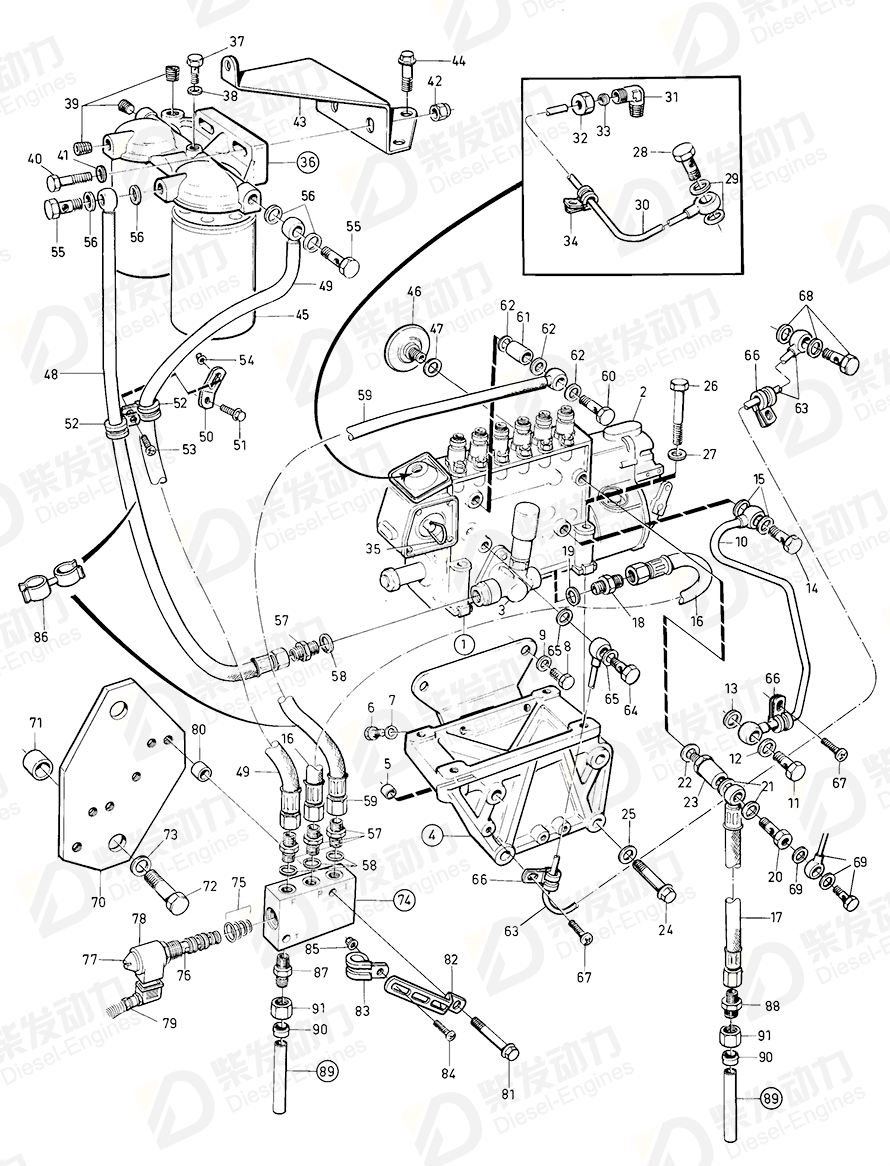

Injection pump 3803721
| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 866141 | 1 | |
| 1 | Injection pump | 3803721 | 1 | |
| 2 | Governor | 3825564 | 1 | |
| 3 | Feed pump | 863474 | 1 | |
| 4 | Bracket | 866783 | 1 | |
| 5 | Guide sleeve | 423161 | 2 | |
| 6 | Hexagon screw | 479696 | 2 | |
| 7 | Washer | 940097 | 2 | |
| 8 | Hexagon screw | 479696 | 2 | |
| 9 | Washer | 940097 | 2 | |
| 10 | Oil return pipe | 478964 | 1 | |
| 11 | Hollow screw | 942007 | 1 | (954394) |
| 12 | Gasket | 11998 | 1 | |
| 13 | Gasket | 942703 | 1 | |
| 14 | Hollow screw | 25167 | 1 | |
| 15 | Gasket | 969011 | 2 | |
| 16 | Hose | 3826142 | 1 | |
| 17 | Fuel hose | 3825603 | 1 | |
| 18 | Nipple | 941754 | 1 | |
| 19 | Gasket | 969011 | 1 | |
| 20 | Hollow screw | 16496 | 1 | |
| 21 | Gasket | 969011 | 2 | |
| 22 | Gasket | 15304 | 1 | |
| 23 | Overflow valve | 35096 | 1 | |
| 24 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 25 | Spring washer | 940280 | 4 | |
| 26 | Hexagon screw | 940156 | 4 | |
| 27 | Washer | 190509 | 4 | |
| 28 | Hollow screw | 969299 | 1 | |
| 29 | Gasket | 11994 | 2 | |
| 30 | Pipe | 479178 | 1 | |
| 31 | Elbow nipple | 954386 | 1 | |
| 32 | Fitting nut | 954357 | 1 | |
| 33 | Fitting | 954365 | 1 | |
| 34 | Clamp | 18368 | 1 | |
| 35 | Attaching lug | 422525 | 1 | |
| 36 | Fuel filter housing | 8194541 | 1 | |
| 37 | Hollow screw | 471177 | 1 | |
| 38 | Gasket | 947620 | 1 | (233321) |
| 39 | Plug | 968062 | 3 | |
| 40 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 41 | Washer | 960142 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 42 | Lock nut | 946420 | 2 | |
| 43 | Bracket | 1544859 | 1 | |
| 44 | Flange screw | 942402 | 3 | |
| 45 | Fuel filter | 3825133 | 2 | |
| 46 | Pressure equalizer | 477173 | 1 | (466398) |
| 47 | Gasket | 969011 | 1 | |
| 48 | Hose | 3826263 | 1 | |
| 49 | Fuel hose | 3825602 | 1 | |
| 50 | Bracket | 965552 | 1 | |
| 52 | Clamp | 952631 | 2 | |
| 53 | Cross recessed screw | 956094 | 1 | |
| 54 | Hexagon nut | 955781 | 1 | |
| 55 | Hollow screw | 25167 | 2 | |
| 56 | Gasket | 969011 | 4 | |
| 57 | Nipple | 941754 | 4 | |
| 58 | Gasket | 969011 | 4 | |
| 59 | Fuel hose | 3825603 | 1 | |
| 60 | Hollow screw | 978197 | 1 | |
| 61 | Spacer sleeve | 1678297 | 1 | |
| 62 | Gasket | 969011 | 3 | |
| 64 | Hollow screw | 48634 | 1 | |
| 65 | Gasket | 947281 | 2 | |
| 66 | Clamp | 952623 | 3 | |
| 67 | Cross recessed screw | 950045 | 2 | |
| 70 | Bracket | 3826145 | 1 | |
| 71 | Spacer sleeve | 823196 | 2 | For bracket 829839 with 8 holes. |
| 72 | Hexagon screw | 955569 | 2 | Classed engine,spec.867117., Replaces earlier production spacer pin FIG.15., L=83mm |
| 73 | Spring washer | 940280 | 2 | |
| 74 | Fuel valve | 3828983 | 1 | |
| 75 | Gasket kit | 3828981 | 1 | |
| 78 | Magnet | 3825240 | 1 | |
| 79 | Cable kit | 866927 | 1 | |
| 80 | Spacer sleeve | 843075 | 2 | |
| 81 | Flange screw | 973924 | 2 | |
| 82 | Bracket | 845999 | 1 | |
| 83 | Clamp | 952631 | 1 | |
| 84 | Cross recessed screw | 956094 | 1 | |
| 85 | Hexagon nut | 955781 | 1 | |
| 86 | Retainer | 9205207 | 2 | |
| 87 | Nipple | 977677 | 1 | |
| 88 | Nipple | 957055 | 1 | |
| 89 | Fuel pipe | 3825770 | 2 | |
| 90 | Ferrule | 956969 | 2 | |
| 91 | Fitting nut | 956983 | 2 |
| Item | Part Name | Part No. |
| 1 | Injection pump 3803721 | 3803721 |
| Details | |
| Engine model | TAD1030P TAD1030V |
| Application | Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. |
| Specification | |
| Descriptions | Ers av 3803721 |
