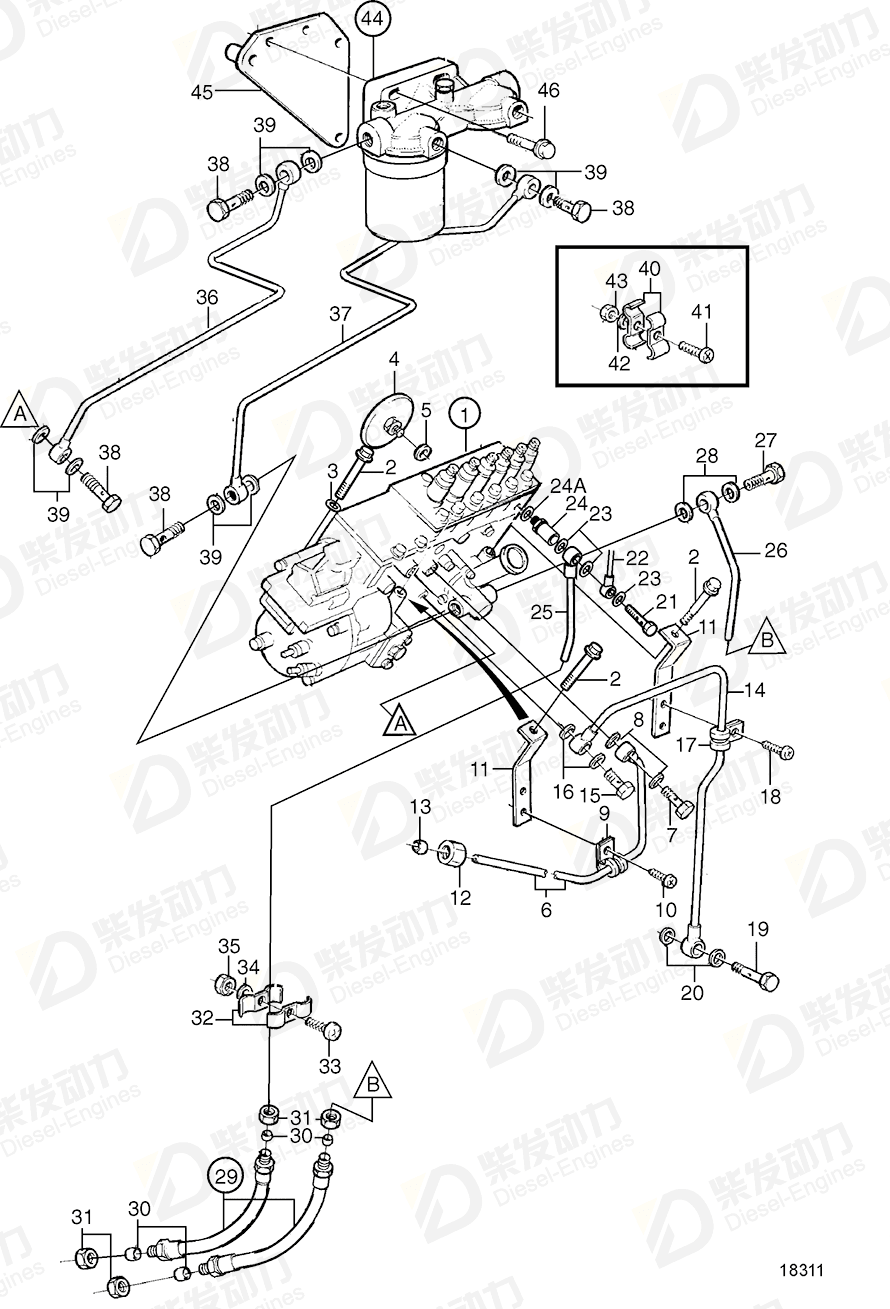

Injection pump 3803728
| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 849836 | 1 | |
| 1 | Injection pump | 866371 | 1 | |
| 1 | Injection pump | 3803728 | 1 | |
| 1 | Injection pump | 3803768 | 1 | |
| 2 | Flange screw | 965189 | 4 | |
| 3 | Washer | 190509 | 3 | |
| 4 | Pressure equalizer | 477173 | 1 | (466398) |
| 5 | Gasket | 969011 | 1 | |
| 6 | Oil pressure pipe | 862997 | 1 | |
| 7 | Hollow screw | 48634 | 1 | |
| 8 | Gasket | 947281 | 2 | |
| 9 | Clamp | 952623 | 1 | |
| 10 | Cross recessed screw | 956092 | 1 | (241793) |
| 11 | Bracket | 1543721 | 2 | |
| 12 | Fitting nut | 954356 | 1 | |
| 13 | Sleeve | 954364 | 1 | |
| 14 | Oil return pipe | 862996 | 1 | |
| 15 | Hollow screw | 25167 | 1 | |
| 16 | Gasket | 969011 | 2 | |
| 17 | Clamp | 952625 | 1 | |
| 18 | Cross recessed screw | 956092 | 1 | (241793) |
| 19 | Hollow screw | 25167 | 1 | |
| 20 | Gasket | 969011 | 2 | |
| 21 | Hollow screw | 25167 | 1 | |
| 23 | Gasket | 969011 | 3 | |
| 24 | Overflow valve | 479775 | 1 | |
| 25 | Fuel pipe | 849211 | 1 | |
| 26 | Fuel pipe, feed | 849210 | 1 | |
| 27 | Hollow screw | 25167 | 1 | |
| 28 | Gasket | 969011 | 2 | |
| 29 | Fuel hose | 865737 | 2 | |
| 30 | Ferrule | 956969 | 4 | |
| 31 | Fitting nut | 956983 | 4 | |
| 32 | Clamp | 402404 | 2 | |
| 33 | Cross recessed screw | 956094 | 1 | |
| 34 | Washer | 955892 | 1 | |
| 35 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 36 | Fuel pipe | 849213 | 1 | |
| 37 | Fuel pipe | 865330 | 1 | (849212) |
| 38 | Hollow screw | 25167 | 4 | |
| 39 | Gasket | 969011 | 8 | |
| 40 | Attaching clamp | 404279 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 41 | Cross recessed screw | 956095 | 2 | |
| 42 | Washer | 955892 | 2 | |
| 43 | Hexagon nut | 955781 | 2 | |
| 45 | Bracket | 849769 | 1 | |
| 46 | Flange screw | 965185 | 2 | |
| 24A | Gasket | 15304 | 1 |
| Item | Part Name | Part No. |
| 1 | Injection pump 3803728 | 3803728 |
| Details | |
| Engine model | TID162AG, TID162AGP TWD1630G |
| Application | Fuel Injection Pump, Components Fuel System Fuel System: A |
| Specification | |
| Descriptions | (866371) |
