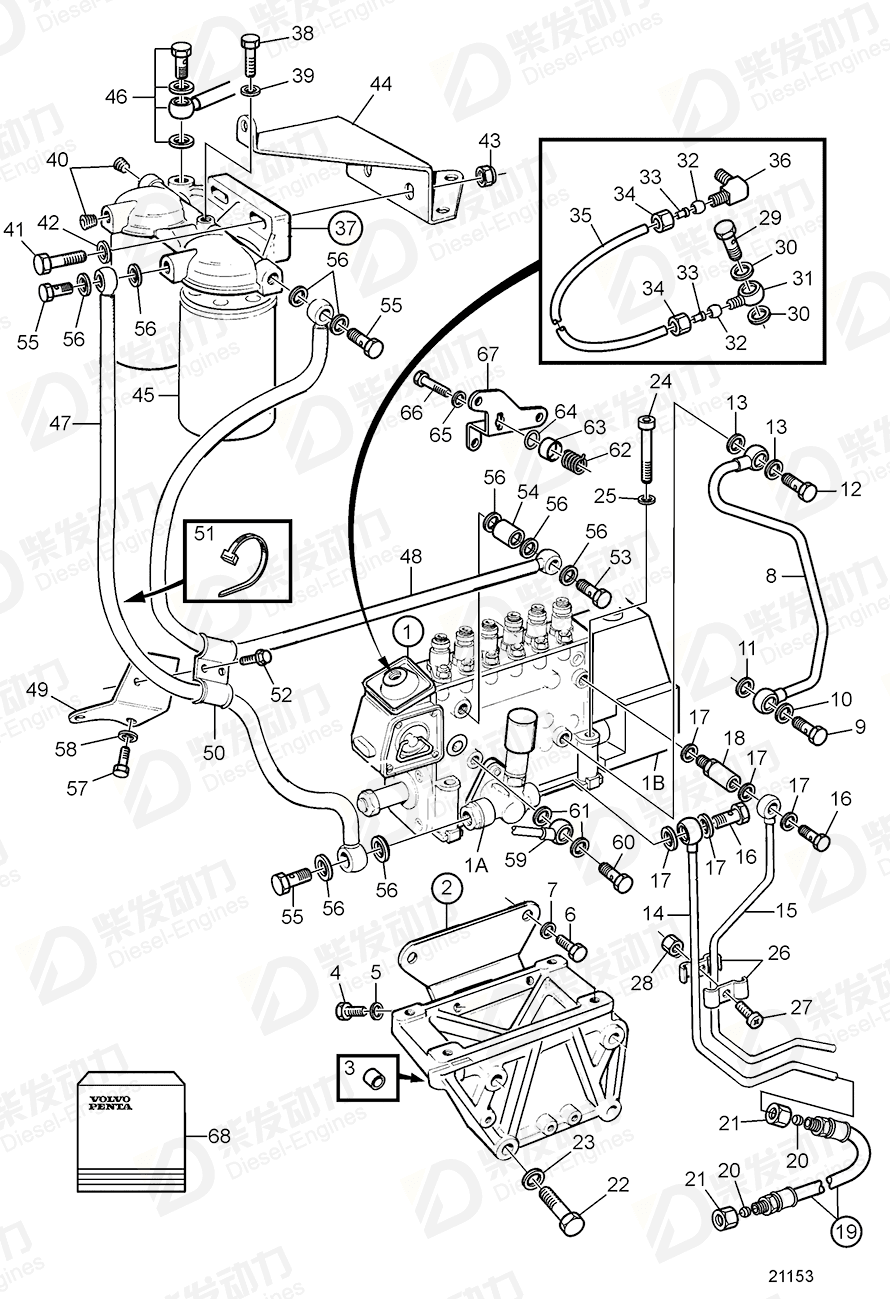

Injection pump 3803741
| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 3803741 | 1 | Mechanical |
| 1 | Actuator | 3825454 | 1 | (866167) |
| 1 | Injection pump | 3826502 | 1 | Repl by 3803741 |
| 2 | Bracket | 866783 | 1 | |
| 3 | Guide sleeve | 423161 | 2 | |
| 4 | Hexagon screw | 479696 | 2 | |
| 5 | Washer | 940097 | 2 | |
| 6 | Hexagon screw | 479696 | 2 | |
| 7 | Washer | 940097 | 2 | |
| 8 | Oil return pipe | 3826088 | 1 | SN2100281912- |
| 9 | Hollow screw | 942007 | 1 | (954394) |
| 10 | Gasket | 11998 | 1 | |
| 11 | Gasket | 942703 | 1 | |
| 12 | Hollow screw | 25167 | 1 | |
| 13 | Gasket | 969011 | 2 | |
| 14 | Fuel pipe | 865760 | 1 | |
| 15 | Fuel pipe | 866363 | 1 | |
| 16 | Hollow screw | 25167 | 2 | |
| 17 | Gasket | 969011 | 5 | |
| 18 | Overflow valve | 35096 | 1 | |
| 19 | Fuel hose | 865737 | 2 | |
| 1A | Feed pump | 863474 | 1 | |
| 1B | Actuator | 3827267 | 1 | (866167) |
| 20 | Ferrule | 956969 | 4 | |
| 21 | Fitting nut | 956983 | 4 | |
| 22 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 23 | Spring washer | 940280 | 4 | |
| 24 | Hexagon screw | 940156 | 4 | |
| 25 | Washer | 190509 | 4 | |
| 26 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 27 | Cross recessed screw | 950047 | 1 | |
| 28 | Hexagon nut | 955825 | 1 | Late type |
| 29 | Hollow screw | 969299 | 1 | |
| 30 | Gasket | 11994 | 2 | |
| 31 | Banjo nipple | 945417 | 1 | |
| 32 | Sleeve | 954364 | 2 | |
| 33 | Support sleeve | 944717 | 2 | |
| 34 | Fitting nut | 954356 | 2 | |
| 35 | Tube | 945460 | 1 | L=900mm |
| 36 | Elbow nipple | 954385 | 1 | |
| 37 | Fuel filter housing | 8194541 | 1 | |
| 38 | Hollow screw | 471177 | 1 | |
| 39 | Gasket | 947620 | 1 | (233321) |
| 40 | Plug | 968062 | 2 | |
| 41 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 42 | Washer | 960142 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 43 | Lock nut | 946420 | 2 | |
| 45 | Fuel filter | 3825133 | 2 | |
| 47 | Fuel pipe | 479676 | 1 | |
| 48 | Fuel pipe, plastic w rubber casing | 479677 | 1 | SNXXXXXXXXXX/257936- |
| 49 | Bracket | 479559 | 1 | |
| 50 | Attaching clamp | 479561 | 1 | |
| 51 | Cable tie | 948211 | 1 | |
| 52 | Flange screw | 967949 | 2 | |
| 53 | Hollow screw | 978197 | 1 | |
| 54 | Spacer sleeve | 1678297 | 1 | |
| 55 | Hollow screw | 25167 | 3 | |
| 56 | Gasket | 969011 | 9 | |
| 59 | Oil pressure pipe | 3826891 | 1 | |
| 60 | Hollow screw | 48634 | 1 | |
| 61 | Gasket | 947281 | 2 | |
| 62 | Spring | 239056 | 1 | Replaced by 837364. |
| 63 | Cover | 239059 | 1 | Replaced by 837364 |
| 64 | Washer | 120265 | 1 | |
| 65 | Spring washer | 941906 | 1 | |
| 66 | Hexagon screw | 955637 | 1 | |
| 67 | Intermediate lever | 848677 | 1 | (821134) |
| 68 | Mounting kit | 865233 | 1 |
| Item | Part Name | Part No. |
| 1 | Injection pump 3803741 | 3803741 |
| Details | |
| Engine model | TWD1031VE |
| Application | Fuel Injection Pump and Fuel Filter Fuel System with Electronic Speed Control |
| Specification | |
| Descriptions | Mechanical Repl by 3803741 |
