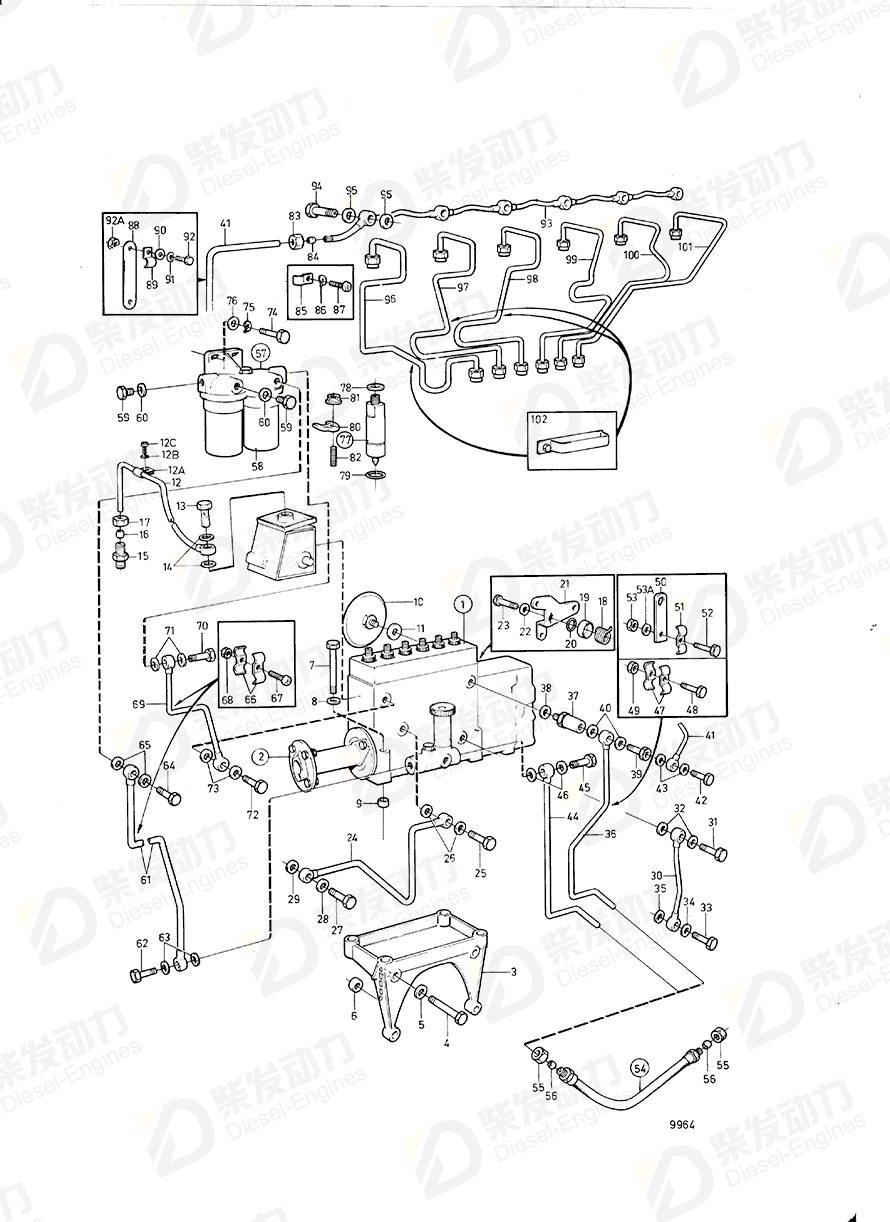

Injection pump 846359
| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 467466 | 1 | Included in repair kit 6210761., Ers av 1 pc 466896,1 pc 837794,1 pc 74034,1 pc 957171 |
| 1 | Injection pump | 846359 | 1 | Repl by 863451 |
| 1 | Injection pump | 1545101 | 1 | Engine with RQV governor., Fuel injection pump with 11mm pump units |
| 3 | Bracket | 468558 | 1 | |
| 4 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 5 | Spring washer | 940280 | 4 | |
| 6 | Guide sleeve | 423161 | 2 | |
| 7 | Hexagon screw | 940156 | 4 | |
| 8 | Washer | 190509 | 4 | |
| 9 | Guide sleeve | 417588 | 1 | |
| 10 | Pressure equalizer | 477173 | 1 | (466398) |
| 11 | Gasket | 969011 | 1 | |
| 12 | Tube | 467497 | 1 | Ers av 1 pc 466896,1 pc 837794,1 pc 74034,1 pc 957171 |
| 13 | Hollow screw | 969299 | 1 | |
| 14 | Gasket | 11994 | 2 | |
| 15 | Nipple | 954379 | 1 | Engine with RQV governor. |
| 16 | Fitting | 954365 | 1 | |
| 17 | Fitting nut | 954357 | 1 | |
| 18 | Spring | 239056 | 1 | Replaced by 837364. |
| 19 | Cover | 239059 | 1 | Replaced by 837364 |
| 20 | Washer | 120265 | 1 | |
| 21 | Intermediate lever | 845552 | 1 | |
| 21 | Intermediate lever | 848677 | 1 | (821134) |
| 22 | Spring washer | 941906 | 1 | |
| 23 | Hexagon screw | 955637 | 1 | |
| 24 | Oil feed pipe | 422245 | 1 | |
| 25 | Hollow screw | 48634 | 1 | |
| 26 | Gasket | 947281 | 2 | |
| 27 | Hollow screw | 942081 | 1 | |
| 28 | Gasket | 18666 | 1 | |
| 29 | Gasket | 11994 | 1 | |
| 30 | Return pipe | 422246 | 1 | |
| 31 | Hollow screw | 25167 | 1 | |
| 32 | Gasket | 969011 | 2 | |
| 33 | Hollow screw | 942007 | 1 | (954394) |
| 34 | Gasket | 11998 | 1 | |
| 35 | Gasket | 942703 | 1 | |
| 36 | Fuel pipe | 845938 | 1 | |
| 37 | Overflow valve | 35096 | 1 | |
| 38 | Gasket | 15304 | 1 | |
| 39 | Hollow screw | 16496 | 1 | |
| 40 | Gasket | 969011 | 2 | |
| 41 | Leak-off line | 846637 | 1 | |
| 42 | Hollow screw | 74033 | 1 | |
| 43 | Gasket | 947620 | 2 | (233321) |
| 44 | Fuel pipe | 845937 | 1 | |
| 45 | Hollow screw | 25167 | 1 | |
| 46 | Gasket | 969011 | 2 | |
| 47 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 48 | Cross recessed screw | 950047 | 1 | |
| 49 | Hexagon nut | 955825 | 1 | Late type |
| 50 | Anchorage | 821625 | 1 | |
| 51 | Attaching clamp | 404279 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 52 | Cross recessed screw | 950047 | 1 | |
| 53 | Hexagon nut | 955825 | 1 | Late type |
| 54 | Fuel hose | 845450 | 2 | (880618) |
| 55 | Fitting nut | 956983 | 4 | |
| 56 | Ferrule | 956969 | 4 | |
| 57 | Filter housing | 471172 | 1 | Repl by 1676832 |
| 58 | Fuel filter | 466987 | 2 | (243004) |
| 59 | Plug | 960630 | 3 | Replaced by 1 PC 843512,1 ST 191026. |
| 60 | Gasket | 969011 | 3 | |
| 61 | Fuel pipe | 848931 | 1 | |
| 62 | Hollow screw | 25167 | 1 | |
| 63 | Gasket | 969011 | 2 | |
| 64 | Hollow screw | 25167 | 1 | |
| 65 | Gasket | 969011 | 2 | |
| 66 | Attaching clamp | 404279 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 67 | Cross recessed screw | 950047 | 2 | |
| 68 | Hexagon nut | 955825 | 2 | Late type |
| 69 | Fuel pipe | 848932 | 1 | |
| 70 | Hollow screw | 25167 | 1 | |
| 71 | Gasket | 969011 | 2 | |
| 72 | Hollow screw | 25167 | 1 | |
| 73 | Gasket | 969011 | 2 | |
| 74 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 75 | Spring washer | 942336 | 2 | |
| 76 | Washer | 960142 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 77 | Injector | 1545102 | 6 | Repl by 424530 |
| 78 | Gasket | 947620 | 3 | (233321) |
| 79 | Sealing ring | 469455 | 6 | |
| 80 | Yoke | 469797 | 6 | (466399) |
| 81 | Flange nut | 971095 | 6 | Alt |
| 82 | Stud | 1545022 | 6 | |
| 83 | Fitting nut | 956980 | 1 | |
| 84 | Ferrule | 956966 | 1 | |
| 85 | Clamp | 18387 | 1 | |
| 86 | Spring washer | 941906 | 1 | |
| 87 | Cross recessed screw | 950046 | 1 | |
| 88 | Bracket | 965535 | 3 | When double sheated fuel pipes not are mounted. |
| 89 | Clamp | 121563 | 3 | |
| 90 | Washer | 955893 | 3 | |
| 91 | Spring washer | 941906 | 3 | |
| 92 | Cross recessed screw | 950046 | 3 | |
| 93 | Leak-off pipe | 1545081 | 1 | |
| 94 | Hollow screw | 74033 | 6 | |
| 95 | Gasket, oil pipe | 946729 | 12 | |
| 96 | Delivery pipe | 1545091 | 1 | Cyl 1, SN-2100281129 |
| 97 | Delivery pipe | 1545092 | 1 | Cyl 2, SN-2100281129 |
| 98 | Delivery pipe | 1545093 | 1 | Cyl 3, SN-2100281129 |
| 99 | Delivery pipe | 1545094 | 1 | Cyl 4, SN-2100281129 |
| 100 | Delivery pipe | 1545095 | 1 | Cyl 5, SN-2100281129 |
| 101 | Delivery pipe | 1545096 | 1 | Cyl 6, SN-2100281129 |
| 102 | Clamp, 2-pipes | 470181 | 5 | |
| 102 | Clamp, 3-pipes | 470182 | 3 | |
| 12A | Clamp | 942778 | 1 | Ers av 1 pc 466896,1 pc 837794,1 pc 74034,1 pc 957171. |
| 12B | Washer | 192292 | 1 | |
| 12C | Cross recessed screw | 950020 | 1 | AQ290A MO 20460-. |
| 53A | Washer | 955893 | 1 | |
| 92A | Hexagon nut | 955825 | 3 | Late type |
| Item | Part Name | Part No. |
| 1 | Injection pump 846359 | 846359 |
| Details | |
| Engine model | TD100G TD100G-85 TD100G-87 TD100GP TD100GP-85 TD100HP-87 |
| Application | Fuel Injection Pump: 846359 Fuel System: 846359 Fuel System: A Fuel System: C Fuel System: TD100GGP-87 |
| Specification | |
| Descriptions | Repl by 863451 |
