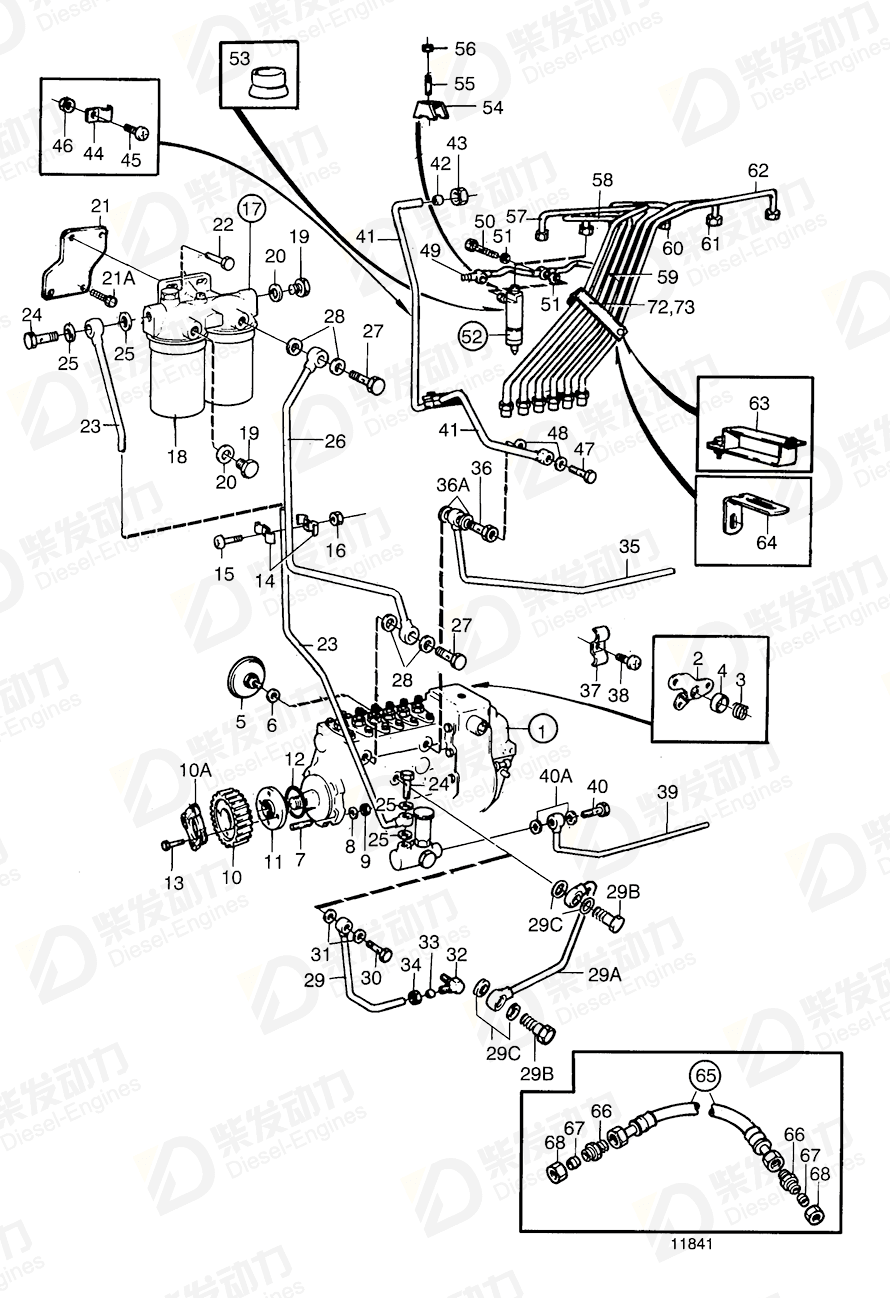

Injection pump 847870
| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 847870 | 1 | |
| 1 | Injection pump | 3803688 | 1 | |
| 5 | Pressure equalizer | 477173 | 1 | (466398) |
| 6 | Gasket | 969011 | 1 | |
| 7 | Stud | 924079 | 3 | |
| 8 | Spring washer | 941908 | 3 | |
| 9 | Flange nut | 971095 | 3 | Alt |
| 10 | Gear, fuel inj. pump | 465870 | 1 | |
| 11 | Hub | 465968 | 1 | |
| 13 | Flange screw | 465782 | 4 | |
| 14 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 15 | Cross recessed screw | 956095 | 1 | |
| 16 | Hexagon nut | 955781 | 1 | |
| 17 | Housing | 1676832 | 1 | Repl by 8194541 |
| 18 | Fuel filter | 466987 | 2 | (243004) |
| 19 | Plug | 960630 | 3 | Replaced by 1 PC 843512,1 ST 191026. |
| 20 | Gasket | 969011 | 3 | |
| 21 | Bracket | 847841 | 1 | |
| 22 | Flange screw | 946471 | 2 | |
| 23 | Fuel pipe | 847868 | 1 | |
| 24 | Hollow screw | 25167 | 2 | |
| 25 | Gasket | 969011 | 4 | |
| 26 | Fuel pipe | 847869 | 1 | |
| 27 | Hollow screw | 25167 | 2 | |
| 28 | Gasket | 969011 | 4 | |
| 29 | Pressure pipe | 465871 | 1 | Cylinder block - fuel injection pump., Early type |
| 30 | Hollow screw | 48634 | 1 | |
| 31 | Gasket | 947281 | 2 | |
| 32 | Nipple | 326870 | 1 | Early type |
| 33 | Sleeve | 954364 | 1 | |
| 34 | Fitting nut | 954356 | 1 | |
| 35 | Fuel pipe | 837608 | 1 | Alt |
| 36 | Hollow screw | 16496 | 1 | |
| 37 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 38 | Cross recessed screw | 956095 | 2 | |
| 39 | Fuel pipe | 849229 | 1 | |
| 40 | Hollow screw | 25167 | 1 | |
| 41 | Leak-off line | 848466 | 1 | |
| 42 | Ferrule | 956966 | 1 | |
| 43 | Fitting nut | 956980 | 1 | |
| 44 | Clamp | 190601 | 1 | |
| 45 | Flange screw | 946471 | 1 | |
| 46 | Hexagon nut | 971080 | 1 | (955791) |
| 47 | Hollow screw | 74033 | 1 | |
| 48 | Gasket | 947620 | 2 | (233321) |
| 49 | Leak-off line | 465863 | 1 | |
| 50 | Hollow screw | 74033 | 6 | |
| 51 | Gasket, oil pipe | 946729 | 12 | |
| 52 | Injector | 848730 | 6 | |
| 52 | Injector | 3803253 | 6 | |
| 53 | Sealing ring | 469455 | 6 | |
| 54 | Yoke | 469797 | 6 | (466399) |
| 55 | Stud | 1545022 | 6 | |
| 56 | Flange nut | 971095 | 6 | Alt |
| 57 | Delivery pipe | 420591 | 1 | Cyl 1, SN-2061107586 |
| 58 | Delivery pipe | 420592 | 1 | Cyl 2, SN-2061107586 |
| 59 | Delivery pipe | 420593 | 1 | Cyl 3, SN-2061107586 |
| 60 | Delivery pipe | 420594 | 1 | Cyl 4, SN-2061107586 |
| 61 | Delivery pipe | 420595 | 1 | Cyl 5, SN-2061107586 |
| 62 | Delivery pipe | 420596 | 1 | Cyl 6, SN-2061107586 |
| 63 | Clamp, 2-pipes | 470181 | 5 | |
| 63 | Clamp, 3-pipes | 470182 | 1 | |
| 63 | Clamp | 470184 | 1 | For four pipes., Later prod |
| 64 | Clamp | 465895 | 1 | |
| 65 | Fuel hose | 845450 | 2 | (880618) |
| 66 | Nipple | 957055 | 2 | |
| 67 | Ferrule | 956969 | 4 | |
| 68 | Fitting nut | 956983 | 4 | |
| 10A | Spacer | 465771 | 1 | |
| 21A | Flange screw | 946752 | 2 | |
| 29A | Oil pressure pipe | 420949 | 1 | Cylinder block - fuel injection pump. |
| 29B | Hollow screw | 48634 | 2 | |
| 29C | Gasket | 947281 | 4 | |
| 36A | Gasket | 969011 | 2 | |
| 40A | Gasket | 969011 | 2 |
| Item | Part Name | Part No. |
| 1 | Injection pump 847870 | 847870 |
| Details | |
| Engine model | TD61AP |
| Application | Fuel Injection Pump: 847870 Fuel System: A Fuel System: TD61APB |
