Injection pump 863232

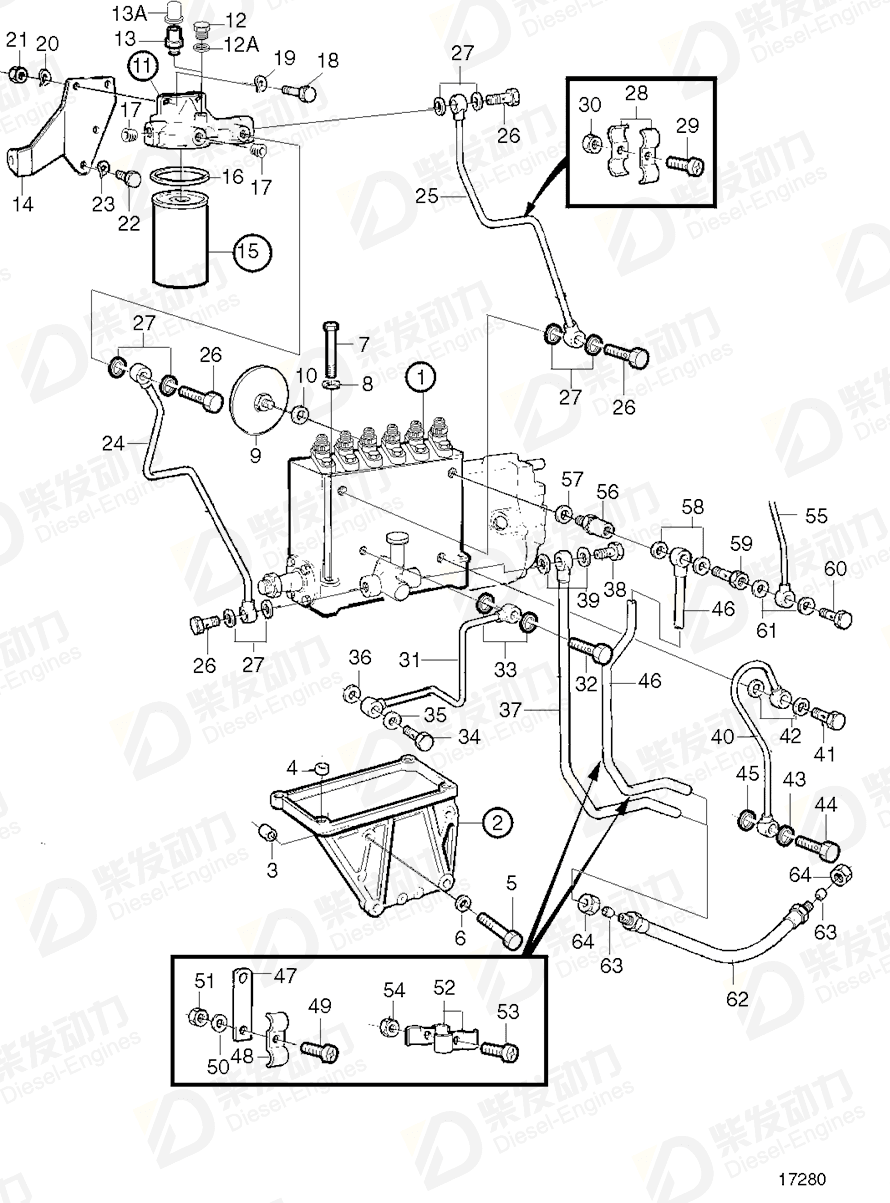

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 863232 | 1 | |
| 1 | Injection pump | 3803748 | 1 | |
| 1 | Injection pump | 3828439 | 1 | |
| 2 | Bracket | 478647 | 1 | |
| 3 | Guide sleeve | 423161 | 2 | |
| 4 | Guide sleeve | 417588 | 1 | |
| 5 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 6 | Spring washer | 940280 | 4 | |
| 7 | Hexagon screw | 940156 | 4 | |
| 8 | Washer | 190509 | 4 | |
| 9 | Pressure equalizer | 477173 | 1 | (466398) |
| 10 | Gasket | 969011 | 1 | |
| 11 | Housing | 1676832 | 1 | Repl by 8194541 |
| 11 | Fuel filter housing | 8194541 | 1 | |
| 12 | Hollow screw | 471177 | 1 | |
| 13 | Faucet | 20548012 | 1 | |
| 14 | Bracket | 476438 | 1 | |
| 15 | Fuel filter | 3825133 | 2 | |
| 16 | Gasket | 6638088 | 2 | |
| 17 | Plug | 968062 | 3 | |
| 18 | Hexagon screw | 940162 | 1 | MO-XXXXX/105194 |
| 18 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 19 | Washer | 960142 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 20 | Spring washer | 942336 | 2 | |
| 21 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 22 | Hexagon screw | 940114 | 2 | |
| 23 | Spring washer | 942336 | 2 | |
| 24 | Fuel pipe | 468480 | 1 | |
| 25 | Tube | 468481 | 1 | |
| 26 | Hollow screw | 25167 | 4 | |
| 27 | Gasket | 969011 | 8 | |
| 28 | Attaching clamp | 404279 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 29 | Cross recessed screw | 950047 | 2 | |
| 30 | Hexagon nut | 955825 | 2 | Late type |
| 31 | Oil pressure pipe | 470514 | 1 | |
| 32 | Hollow screw | 48634 | 1 | |
| 33 | Gasket | 947281 | 2 | |
| 34 | Hollow screw | 942081 | 1 | |
| 35 | Gasket | 11994 | 1 | |
| 36 | Gasket | 18666 | 1 | |
| 37 | Fuel pipe | 865760 | 1 | |
| 38 | Hollow screw | 25167 | 1 | |
| 39 | Gasket | 969011 | 2 | |
| 40 | Return pipe | 422246 | 1 | |
| 41 | Hollow screw | 25167 | 1 | |
| 42 | Gasket | 969011 | 2 | |
| 43 | Gasket | 11998 | 1 | |
| 44 | Hollow screw | 942007 | 1 | (954394) |
| 45 | Gasket | 942703 | 1 | |
| 46 | Fuel pipe | 866933 | 1 | |
| 47 | Bracket | 965545 | 1 | |
| 48 | Attaching clamp | 404279 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 49 | Cross recessed screw | 950048 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 50 | Washer | 955893 | 1 | |
| 51 | Hexagon nut | 955825 | 1 | Late type |
| 52 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 53 | Cross recessed screw | 950047 | 1 | |
| 54 | Hexagon nut | 955825 | 1 | Late type |
| 57 | Gasket | 15304 | 1 | |
| 58 | Gasket | 969011 | 2 | |
| 59 | Hollow screw | 16496 | 1 | |
| 60 | Hollow screw | 74033 | 1 | |
| 61 | Gasket | 947620 | 2 | (233321) |
| 62 | Fuel hose | 865737 | 2 | |
| 63 | Ferrule | 956969 | 4 | |
| 64 | Fitting nut | 956983 | 4 | |
| 12A | Gasket | 947620 | 1 | (233321) |
| Item | Part Name | Part No. |
| 1 | Injection pump 863232 | 863232 |
| Details | |
| Engine model | TID121LG TID121LG-87 TID121LGP-87 TWD1211G |
| Application | Fuel Injection Pump Fuel Injection Pump and Fuel Filter: C Fuel System: A Fuel System: B Fuel System: C |
