Volvo 865015 Injection pump 865015 Fuel System spare parts-Generator engine parts Mall

Injection pump 865015

0 reviews Write a review

Qty

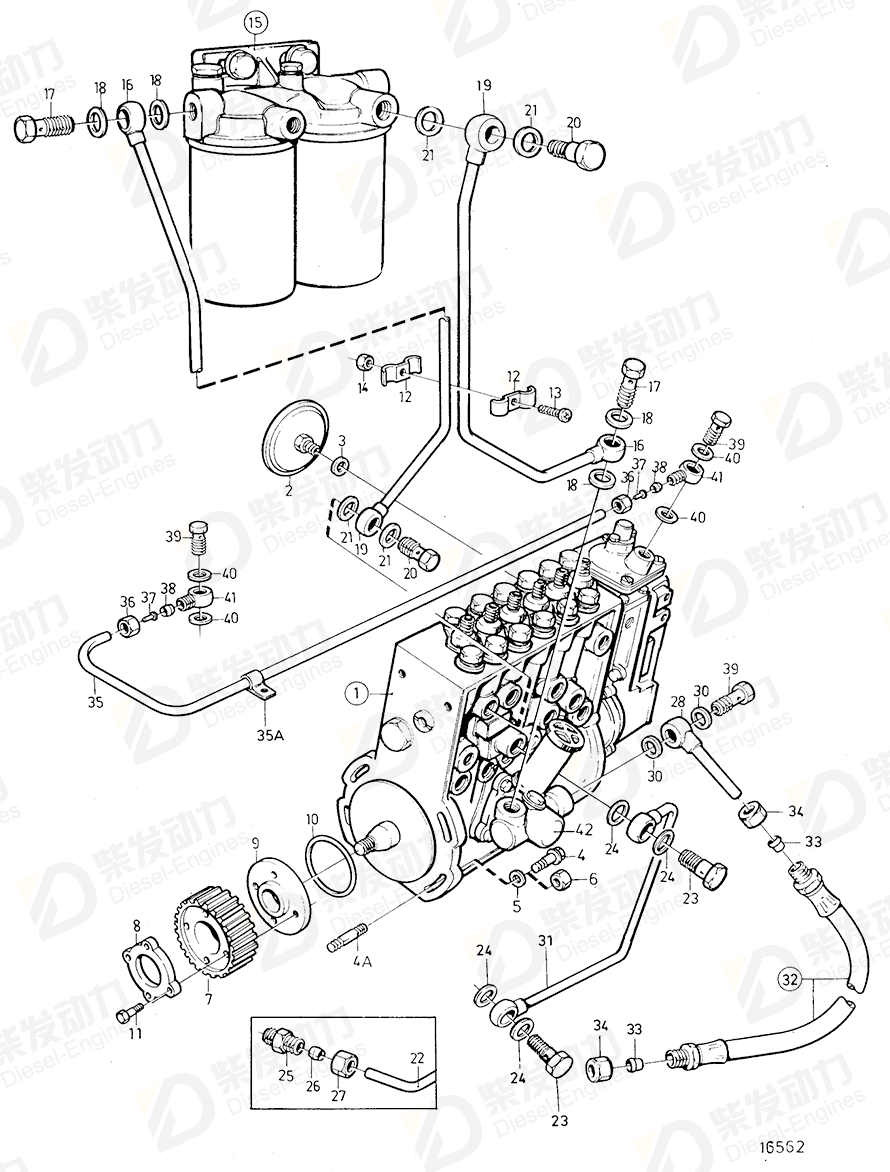

No.	Part Name	Part Number	Qty	Description
1	Injection pump	865015	1
1	Injection pump	3803714	1
2	Pressure equalizer	477173	1	(466398)
3	Gasket	969011	1
4	Flange screw	946472	3
5	Spring washer	941908	3
6	Flange nut	971095	3	Alt
7	Gear, fuel inj. pump	465870	1
8	Spacer	465771	1
9	Hub	465968	1
10	O-ring	925256	1
11	Flange screw	465782	4
12	Attaching clamp	404279	2	D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065.
13	Cross recessed screw	956095	1
14	Hexagon nut	955781	1
16	Fuel pipe	847868	1
17	Hollow screw	25167	2
18	Gasket	969011	4
19	Fuel pipe	847869	1
20	Hollow screw	25167	2
21	Gasket	969011	4
22	Pressure pipe	465871	1	Cylinder block - fuel injection pump., Early type
23	Hollow screw	48634	2
24	Gasket	947281	4
25	Nipple	326870	1	Early type
26	Sleeve	954364	1
27	Fitting nut	954356	1
28	Fuel pipe	837608	1	Alt
29	Hollow screw	25167	1
30	Gasket	969011	2
31	Oil pressure pipe	420949	1	Cylinder block - fuel injection pump.
32	Fuel hose	865737	1
33	Ferrule	956969	2
34	Fitting nut	956983	2
35	Tube	945460	1	L=900mm
36	Fitting nut	954356	2
37	Support sleeve	944717	2
38	Sleeve	954364	2
39	Hollow screw	969299	2
40	Gasket	11994	4
41	Banjo nipple	945417	2
42	Feed pump	244839	1
4A	Stud	479972	3	(924079)
35A	Clamp	940374	1

Item	Part Name	Part No.
1	Injection pump 865015	865015

Details
Engine model	TD610M TD610V
Application	Fuel Injection Pump and Fuel Filter. Standard Fuel System: A Fuel Injection Pump, Components
