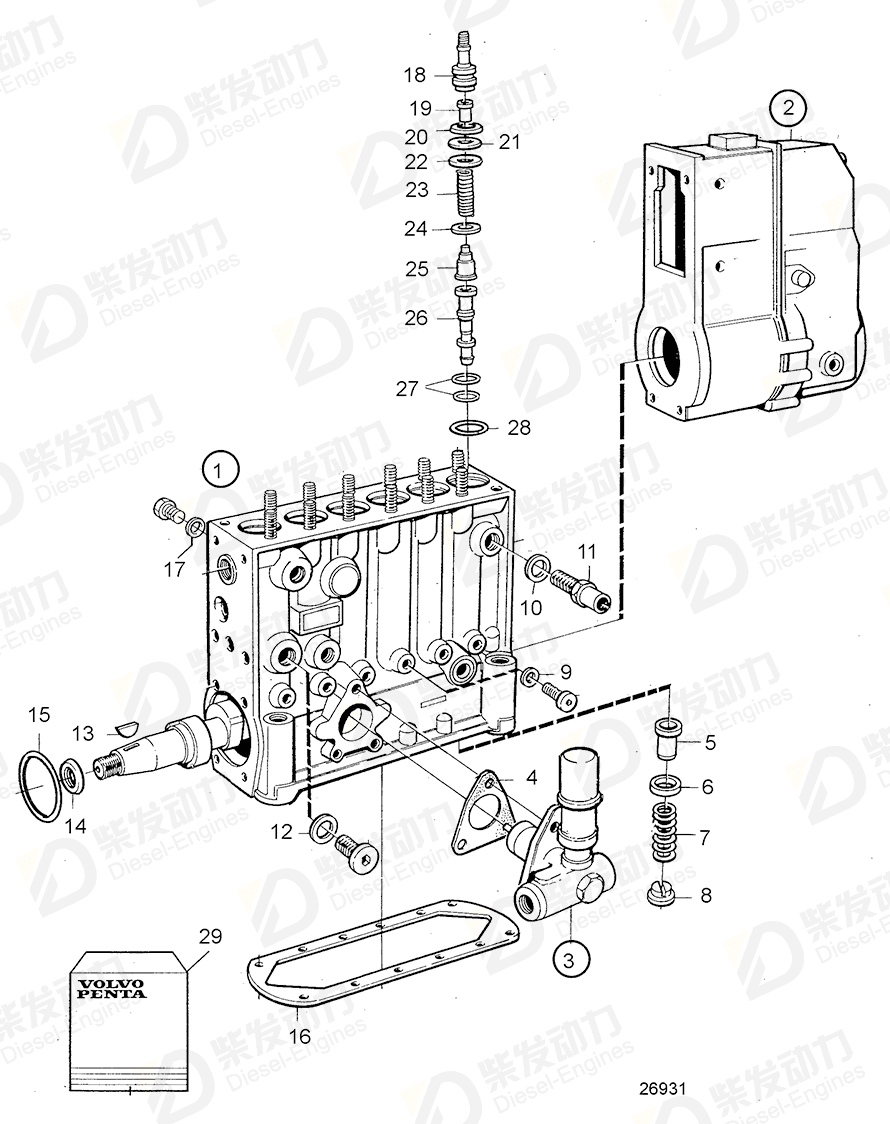

Injection pump 866200
| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 866200 | 1 | |
| 1 | Injection pump | 3803722 | 1 | |
| 2 | Governor | 866884 | 1 | |
| 3 | Feed pump | 244825 | 1 | |
| 4 | Gasket | 863370 | 1 | |
| 5 | Control sleeve | 240782 | 6 | |
| 6 | Spring disc | 239984 | 6 | |
| 7 | Compression spring | 244731 | 6 | (847277) |
| 8 | Spring disc | 244685 | 6 | (6211952) |
| 9 | Gasket | 18836 | 6 | |
| 10 | Gasket | 969011 | 1 | |
| 11 | Overflow valve | 479775 | 1 | |
| 12 | Gasket | 240017 | 1 | Spec.867473 alt |
| 13 | Key | 35168 | 1 | |
| 14 | Camshaft seal | 864299 | 1 | |
| 15 | O-ring | 243299 | 1 | |
| 16 | Gasket | 1699581 | 1 | |
| 17 | Gasket | 969011 | 2 | |
| 18 | Retainer | 244636 | 6 | |
| 19 | Peg | 240971 | 6 | |
| 20 | Washer | 240972 | 6 | TH=0.2mm |
| 21 | Washer | 240973 | 6 | TH=0.5mm |
| 22 | O-ring | 240001 | 6 | |
| 23 | Compression spring | 240969 | 6 | |
| 24 | Sealing washer | 239993 | 6 | |
| 25 | Delivery valve | 11999904 | 6 | |
| 26 | Pump element | 1699579 | 6 | |
| 27 | O-ring | 240422 | 12 | |
| 29 | Repair kit | 845240 | 1 | See group 10A |
| Item | Part Name | Part No. |
| 1 | Injection pump 866200 | 866200 |
| Details | |
| Engine model | TWD630ME TWD630VE |
| Application | Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel Injection Pump, Components Injection Pump with Shut-off Valve, Energized to Run. Option. |
| Specification | |
| Descriptions | (865772) |
