Injection pump 866372

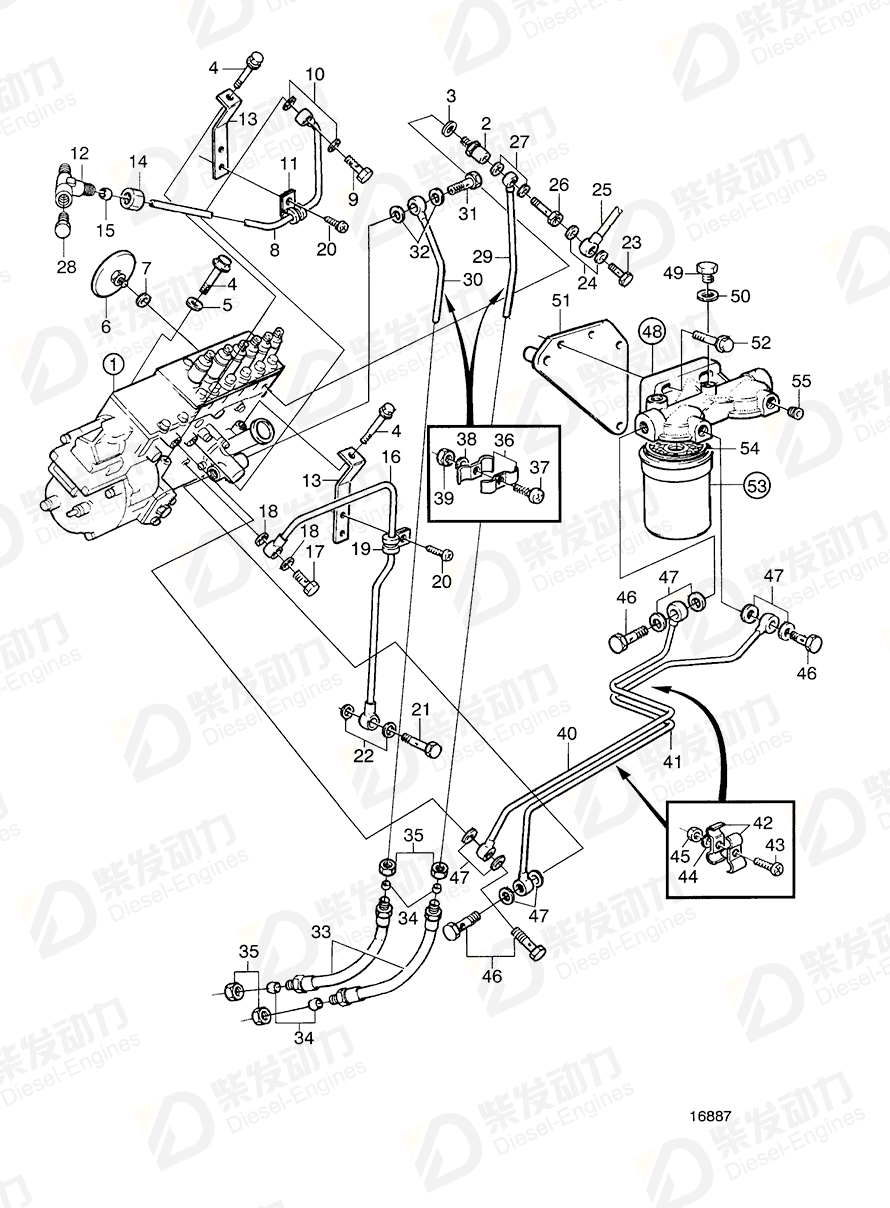

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 866372 | 1 | |
| 1 | Injection pump | 3803729 | 1 | |
| 2 | Overflow valve | 479775 | 1 | |
| 3 | Gasket | 15304 | 1 | |
| 3 | Gasket | 976929 | 1 | Alt (969011) |
| 4 | Flange screw | 984760 | 4 | |
| 5 | Washer | 190509 | 2 | |
| 6 | Pressure equalizer | 477173 | 1 | (466398) |
| 7 | Gasket | 969011 | 1 | |
| 8 | Oil pressure pipe | 862997 | 1 | |
| 9 | Hollow screw | 48634 | 1 | |
| 10 | Gasket | 947281 | 2 | |
| 11 | Clamp | 952623 | 1 | |
| 12 | T-nipple, oil pipe-injection pump | 942078 | 1 | |
| 13 | Bracket | 1543721 | 2 | |
| 14 | Fitting nut | 954356 | 1 | |
| 15 | Sleeve | 954364 | 1 | |
| 16 | Oil return pipe | 3826169 | 1 | (1543962) |
| 17 | Hollow screw | 48634 | 1 | |
| 18 | Gasket | 947281 | 2 | |
| 19 | Clamp | 952623 | 1 | |
| 20 | Cross recessed screw | 956092 | 2 | (241793) |
| 21 | Hollow screw | 25167 | 1 | |
| 22 | Gasket | 969011 | 2 | |
| 23 | Hollow screw | 74033 | 1 | |
| 24 | Gasket | 947620 | 2 | (233321) |
| 25 | Leak-off line | 865360 | 1 | (862566) |
| 26 | Hollow screw | 16496 | 1 | |
| 27 | Gasket | 969011 | 2 | |
| 28 | Plug | 479979 | 1 | |
| 29 | Fuel pipe, return | 3825719 | 1 | (849211) |
| 30 | Fuel pipe, feed | 849210 | 1 | |
| 31 | Hollow screw | 25167 | 1 | |
| 32 | Gasket | 969011 | 2 | |
| 33 | Fuel hose | 865737 | 2 | |
| 34 | Ferrule | 956969 | 4 | |
| 35 | Fitting nut | 956983 | 4 | |
| 36 | Clamp | 402404 | 2 | |
| 37 | Cross recessed screw | 956094 | 1 | |
| 38 | Washer | 955892 | 1 | |
| 39 | Flange nut | 990939 | 1 | |
| 40 | Fuel pipe | 865331 | 1 | (849213) |
| 41 | Fuel pipe | 865330 | 1 | (849212) |
| 42 | Attaching clamp | 404279 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 43 | Cross recessed screw | 956095 | 2 | |
| 44 | Washer | 955892 | 2 | |
| 45 | Hexagon nut | 955781 | 2 | |
| 46 | Hollow screw | 25167 | 4 | |
| 47 | Gasket | 969011 | 8 | |
| 48 | Fuel filter housing | 8194541 | 1 | |
| 49 | Hollow screw | 471177 | 1 | |
| 50 | Gasket | 947620 | 1 | (233321) |
| 51 | Bracket | 849769 | 1 | |
| 52 | Flange screw | 984755 | 2 | |
| 53 | Fuel filter | 3825133 | 2 | |
| 54 | Gasket | 6638088 | 2 | |
| 55 | Plug | 968062 | 3 |
| Item | Part Name | Part No. |
| 1 | Injection pump 866372 | 866372 |
| Details | |
| Engine model | TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V, TWD1630V TWD1630P TWD1630V |
| Application | Fuel Injection Pump, Components Fuel System Fuel System with Fuel Shut-offValve |
