Injector 1542155

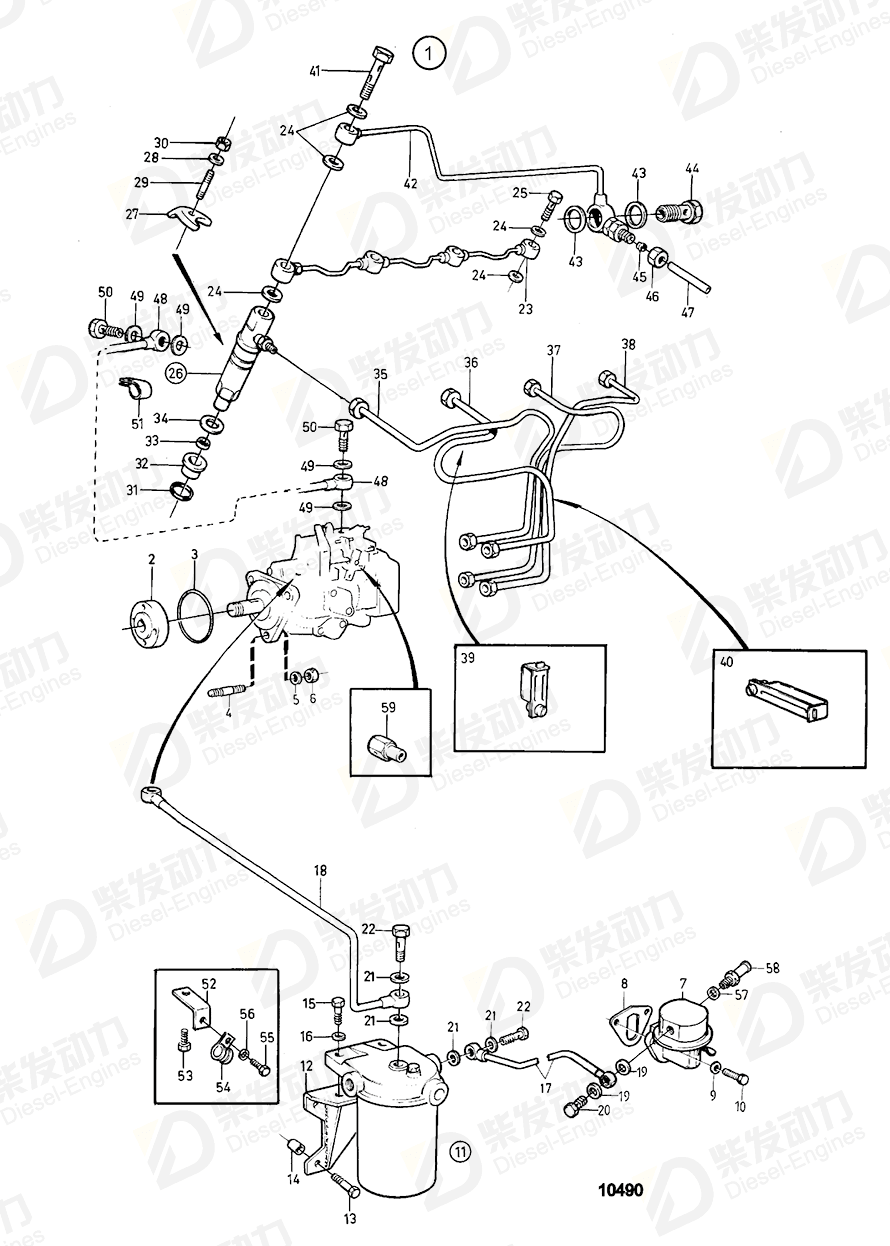

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 838957 | 1 | |
| 2 | Hub | 1542171 | 1 | See group 2C |
| 3 | O-ring | 968971 | 1 | |
| 4 | Stud | 953046 | 3 | |
| 5 | Washer | 191172 | 3 | Spec.867054, 867221. |
| 6 | Hexagon nut | 955782 | 3 | |
| 7 | Repair kit | 273663 | 1 | |
| 7 | Fuel pump | 860320 | 1 | |
| 7 | Fuel pump | 1542170 | 1 | Replaced by fuel pump 860320 and pipe 860447 |
| 8 | Gasket | 3501530 | 1 | (463392) |
| 9 | Spring washer | 941907 | 2 | |
| 10 | Hexagon screw | 955295 | 2 | |
| 11 | Fuel filter | 840531 | 1 | |
| 12 | Bracket | 838583 | 1 | |
| 13 | Flange screw | 965193 | 2 | |
| 14 | Spacer sleeve | 843295 | 2 | |
| 15 | Screw | 955317 | 2 | |
| 16 | Washer | 960148 | 2 | Spec. 867446, 867477, 867494, 867630, 867618., MAFI spec. 867578. |
| 17 | Fuel pipe | 838586 | 1 | For 1542170 |
| 17 | Fuel pipe | 860447 | 1 | For 860320 |
| 18 | Fuel pipe | 838587 | 1 | |
| 19 | Gasket | 11994 | 4 | |
| 20 | Hollow screw | 969299 | 2 | |
| 21 | Gasket | 969011 | 4 | |
| 22 | Hollow screw | 25167 | 2 | |
| 23 | Leak-off line | 1544137 | 1 | |
| 24 | Gasket | 957171 | 9 | |
| 25 | Hollow screw | 74033 | 3 | |
| 26 | Injector | 1542155 | 4 | |
| 26 | Injector | 3803239 | 4 | |
| 27 | Yoke | 1542156 | 4 | |
| 28 | Washer | 1542197 | 4 | |
| 29 | Stud | 924068 | 4 | |
| 30 | Hexagon nut | 955782 | 4 | |
| 31 | Washer | 1542157 | 4 | |
| 32 | Heat shield | 1542154 | 4 | |
| 33 | Washer | 1542158 | 4 | |
| 34 | Washer | 1542159 | 4 | |
| 35 | Pressure pipe | 1544151 | 1 | Cyl no 1 |
| 36 | Pressure pipe | 1544152 | 1 | Cyl no 2 |
| 37 | Pressure pipe | 1544153 | 1 | Cyl no 3 |
| 38 | Pressure pipe | 1544154 | 1 | Cyl no 4 |
| 39 | Clamp, 2-pipes | 470181 | 2 | |
| 40 | Clamp, 4-pipes | 470183 | 1 | |
| 41 | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 42 | Fuel pipe | 1542301 | 1 | |
| 43 | Gasket | 11994 | 2 | |
| 44 | Hollow screw | 844237 | 1 | Included in fuel injection pump. |
| 45 | Sleeve | 326599 | 1 | |
| 46 | Fitting nut | 326596 | 1 | |
| 47 | Hose connection | 858064 | 1 | |
| 48 | Tube | 858149 | 1 | (838948) |
| 49 | Gasket | 957171 | 4 | |
| 50 | Hollow screw | 74033 | 2 | |
| 51 | Clamp | 947191 | 1 | |
| 52 | Bracket | 846780 | 1 | |
| 53 | Hexagon screw | 970943 | 1 | (955314) |
| 54 | Clamp | 952624 | 1 | |
| 55 | Hexagon screw | 955271 | 1 | |
| 56 | Washer | 955892 | 1 | |
| 57 | Gasket | 11994 | 1 | |
| 58 | Hose nipple | 947502 | 1 | |
| 59 | Cube | 804783 | 1 | Replaced by 1pc 843401, 1pc 845851, 1pc 961248. |
| Item | Part Name | Part No. |
| 26 | Injector 1542155 | 1542155 |
| Details | |
| Engine model | TD30A TD40A |
| Application | Fuel Injector Fuel System |
