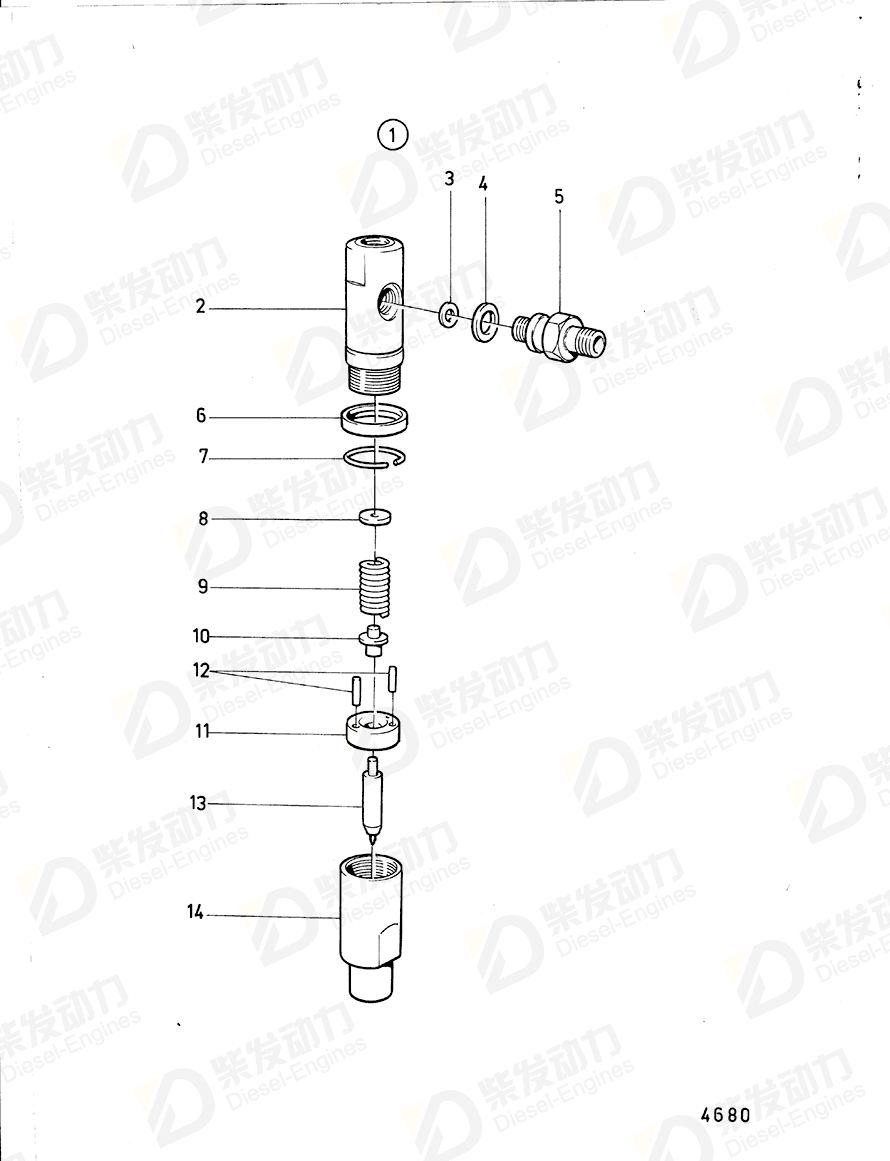

Injector 3803239
| No. | Part Name | Part Number | Qty | Description |
| 1 | Injector | 1542155 | 1 | |
| 1 | Injector | 3803239 | 1 | |
| 3 | Washer | 844294 | 1 | |
| 4 | Sealing ring | 844295 | 1 | |
| 5 | Fitting | 844296 | 1 | |
| 6 | Intermediate ring | 844297 | 1 | |
| 7 | Clamping ring | 844298 | 1 | |
| 8 | Shim | 244788 | 1 | TH=1.080mm |
| 8 | Shim | 244789 | 1 | TH=1,32mm |
| 8 | Shim | 244790 | 1 | TH=1,44mm |
| 8 | Shim | 244791 | 1 | TH=1,52mm |
| 8 | Shim | 244793 | 1 | TH=1,600mm |
| 8 | Shim | 244794 | 1 | (844325) TH=1,725mm |
| 8 | Shim | 244795 | 1 | (846978) TH=1,920mm |
| 8 | Shim, shim | 244797 | 1 | TH=1.000mm |
| 8 | Shim | 244798 | 1 | TH=1.040mm |
| 8 | Shim, shim | 244799 | 1 | TH=1,200mm |
| 8 | Shim | 244800 | 1 | (844312) TH=1,400mm |
| 8 | Shim | 244802 | 1 | (844315) TH=1,475mm |
| 8 | Shim | 244803 | 1 | TH=1,68mm |
| 8 | Shim, shim | 244804 | 1 | TH=1.120mm |
| 8 | Shim, shim | 244805 | 1 | TH=1,240mm |
| 8 | Shim | 244806 | 1 | (846956) TH=1,640mm |
| 8 | Shim | 244807 | 1 | TH=1,28mm |
| 8 | Adjusting washer | 244813 | 1 | TH=1,88mm |
| 8 | Adjusting washer | 844328 | 1 | TH=1,80mm |
| 8 | Adjusting washer | 844332 | 1 | TH=1.900mm |
| 8 | Adjusting washer | 846954 | 1 | TH=1,54mm |
| 8 | Adjusting washer | 846957 | 1 | TH=1,74mm |
| 8 | Adjusting washer | 846958 | 1 | TH=1,84mm |
| 8 | Adjusting washer | 846959 | 1 | TH=1,94mm |
| 8 | Adjusting washer | 846960 | 1 | TH=1.020mm |
| 8 | Adjusting washer, shim | 846963 | 1 | TH=1.175mm |
| 8 | Adjusting washer | 846966 | 1 | TH=1,38mm |
| 8 | Adjusting washer | 846970 | 1 | TH=1,62mm |
| 8 | Adjusting washer | 846975 | 1 | TH=1,78mm |
| 8 | Adjusting washer | 846980 | 1 | TH=1,98mm |
| 8 | Adjusting washer | 858905 | 1 | TH=1,70mm |
| 8 | Adjusting washer | 858906 | 1 | TH=1,58mm |
| 8 | Adjusting washer | 858908 | 1 | TH=1,34mm |
| 8 | Adjusting washer | 859356 | 1 | TH=1,30mm |
| 8 | Adjusting washer | 859358 | 1 | TH=1,500mm |
| 8 | Adjusting washer | 860174 | 1 | TH=1.100mm |
| 8 | Adjusting washer | 863780 | 1 | TH=1.140mm |
| 8 | Adjusting washer | 6212393 | 1 | TH=1,425mm |
| 8 | Adjusting washer | 6212417 | 1 | TH=1,220mm |
| 8 | Adjusting washer | 6212420 | 1 | TH=1,82mm |
| 9 | Spring | 844336 | 1 | |
| 10 | Push rod | 844337 | 1 | |
| 11 | Washer | 844338 | 1 | |
| 12 | Locating pin | 844339 | 2 | |
| 13 | Nozzle | 1542303 | 1 | |
| 14 | Nut | 844340 | 1 |
| Item | Part Name | Part No. |
| 1 | Injector 3803239 | 3803239 |
| Details | |
| Engine model | TD30A TD40A |
| Application | Fuel Injector Fuel System |
