Injector 3803244

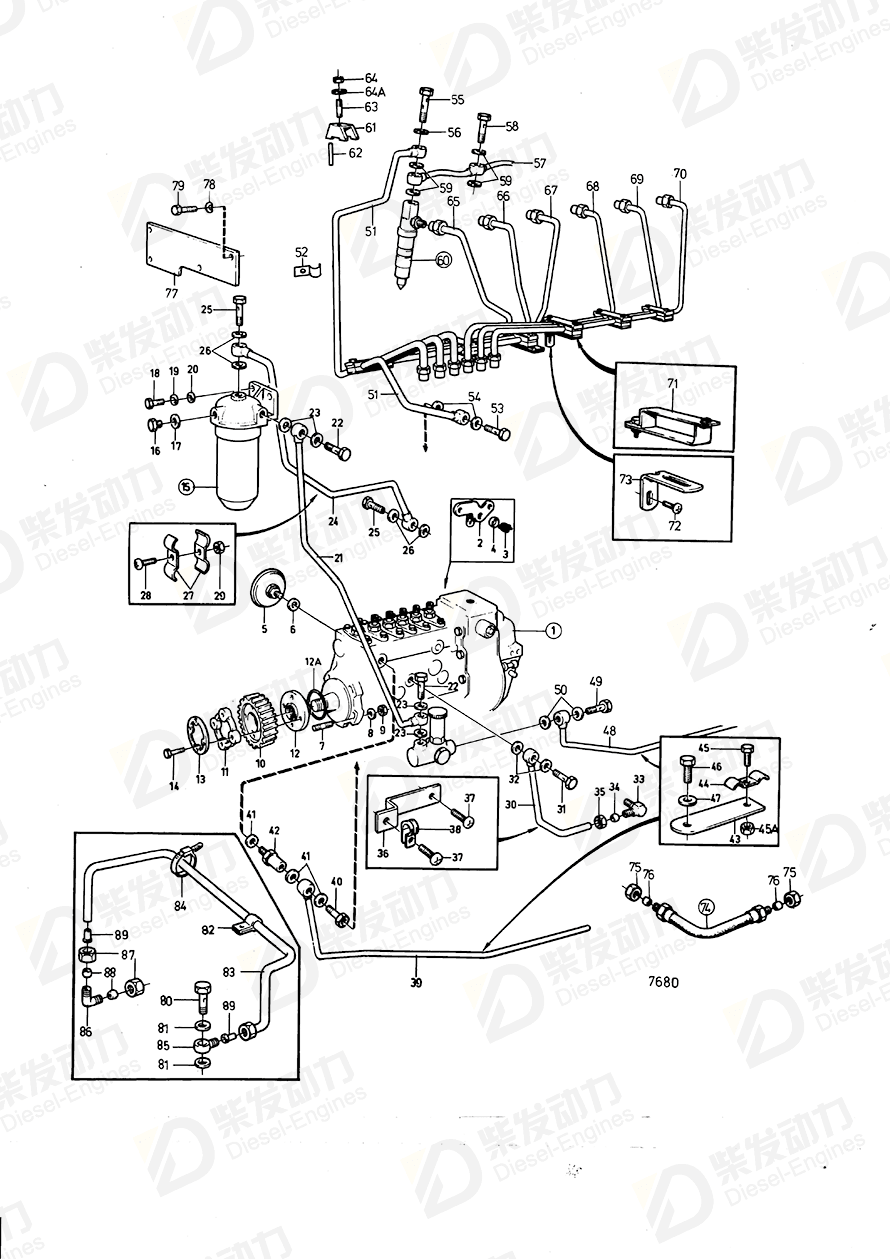

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 846638 | 1 | |
| 1 | Injection pump, exch | 3803683 | 1 | |
| 2 | Lever | 821134 | 1 | |
| 2 | Intermediate lever | 848677 | 1 | (821134) |
| 3 | Spring | 239056 | 1 | Replaced by 837364. |
| 4 | Cover | 239059 | 1 | Replaced by 837364 |
| 5 | Pressure equalizer | 466398 | 1 | |
| 6 | Gasket | 18838 | 1 | |
| 7 | Stud | 953261 | 4 | |
| 8 | Washer | 940097 | 4 | |
| 9 | Flange nut | 942299 | 4 | |
| 10 | Gear | 842467 | 1 | See group 2C |
| 11 | Intermediate section | 420080 | 1 | |
| 12 | Hub | 465260 | 1 | |
| 13 | Lock washer | 411301 | 1 | |
| 14 | Hexagon screw | 940161 | 4 | For engine with 40° angle of inclination, L=45mm |
| 15 | Cover | 471190 | 1 | |
| 16 | Plug | 960630 | 3 | Replaced by 1 PC 843512,1 ST 191026. |
| 17 | Gasket | 18838 | 3 | |
| 18 | Hexagon screw | 940114 | 2 | |
| 19 | Spring washer | 942336 | 2 | |
| 20 | Washer | 940097 | 2 | |
| 21 | Fuel pipe | 845151 | 1 | (844967) late type |
| 22 | Hollow screw | 25167 | 2 | |
| 23 | Gasket | 957178 | 4 | |
| 24 | Fuel pipe | 844966 | 1 | Late type |
| 25 | Hollow screw | 25167 | 2 | |
| 26 | Gasket | 957178 | 4 | |
| 27 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 28 | Cross recessed screw | 950048 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 29 | Hexagon nut | 955825 | 1 | Late type |
| 30 | Oil line | 465399 | 1 | |
| 31 | Hollow screw | 48634 | 1 | |
| 32 | Gasket | 947281 | 2 | |
| 33 | Elbow nipple | 329638 | 1 | |
| 34 | Sleeve | 954364 | 1 | |
| 35 | Fitting nut | 954356 | 1 | |
| 36 | Bracket | 465584 | 1 | |
| 37 | Cross recessed screw | 950045 | 2 | |
| 38 | Clamp | 940374 | 1 | |
| 39 | Fuel pipe | 844864 | 1 | |
| 40 | Hollow screw | 16496 | 1 | |
| 41 | Gasket | 957178 | 3 | |
| 42 | Overflow valve | 35096 | 1 | |
| 43 | Anchorage | 466919 | 2 | |
| 44 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 45 | Cross recessed screw | 950046 | 2 | |
| 46 | Hexagon screw | 955534 | 2 | |
| 47 | Spring washer | 942336 | 2 | |
| 48 | Fuel pipe | 844861 | 1 | |
| 49 | Hollow screw | 25167 | 1 | |
| 50 | Gasket | 18838 | 2 | |
| 51 | Leak-off line | 846590 | 1 | Late type |
| 52 | Clamp | 190601 | 1 | |
| 53 | Hollow screw | 74033 | 1 | |
| 54 | Gasket, oil pipe | 946729 | 2 | |
| 55 | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 56 | Gasket, oil pipe | 946729 | 1 | |
| 57 | Leak-off pipe | 465437 | 1 | (896762) |
| 58 | Hollow screw | 74033 | 5 | |
| 59 | Gasket, oil pipe | 946729 | 12 | |
| 60 | Injector | 466513 | 6 | |
| 60 | Injector | 3803244 | 6 | |
| 61 | Yoke | 469797 | 6 | (466399) |
| 62 | Pin | 466401 | 6 | |
| 63 | Stud | 465776 | 6 | |
| 64 | Hexagon nut | 961992 | 6 | |
| 65 | Delivery pipe | 465651 | 1 | Moxxxxx |
| 66 | Delivery pipe | 465652 | 1 | Moxxxxx |
| 67 | Delivery pipe | 465653 | 1 | Moxxxxx |
| 68 | Delivery pipe | 465654 | 1 | (465424) |
| 69 | Delivery pipe | 465655 | 1 | (465425) |
| 70 | Delivery pipe | 465656 | 1 | (465426) |
| 71 | Clamp, 2-pipes | 470181 | 1 | |
| 71 | Clamp, 3-pipes | 470182 | 4 | |
| 72 | Cross recessed screw | 950045 | 1 | |
| 73 | Bracket | 465739 | 1 | MO-XXXXX (465564) |
| 74 | Fuel hose | 845450 | 2 | (880618) |
| 75 | Fitting nut | 956983 | 4 | |
| 76 | Ferrule | 956969 | 4 | |
| 77 | Bracket | 844972 | 1 | |
| 78 | Spring washer | 942336 | 2 | |
| 79 | Hexagon screw | 955540 | 2 | MOXXXXX/105195- |
| Item | Part Name | Part No. |
| 60 | Injector 3803244 | 3803244 |
| Details | |
| Engine model | TD60B TD60D TD60D-83 |
| Application | Fuel Injector FUEL INJECTOR: 466513 Fuel System FUEL SYSTEM: A FUEL SYSTEM: B |
