Injector 3803246

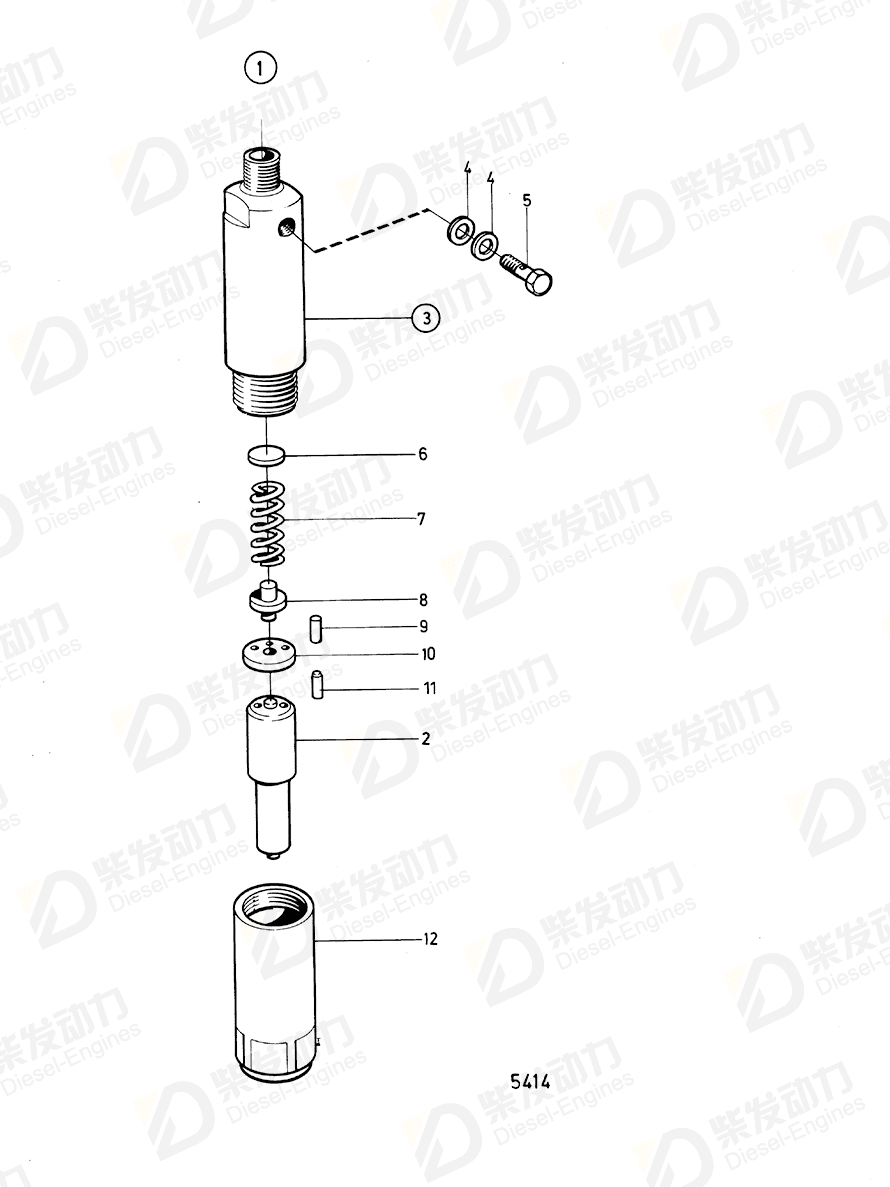

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injector | 470115 | 1 | |
| 1 | Injector | 3803246 | 1 | |
| 2 | Nozzle | 470114 | 1 | |
| 4 | Gasket, oil pipe | 946729 | 2 | |
| 5 | Hollow screw | 74033 | 1 | |
| 6 | Adjusting washer | 844299 | 1 | TH=1.000mm |
| 6 | Adjusting washer | 844303 | 1 | TH=1.100mm |
| 6 | Adjusting washer | 844304 | 1 | TH=1,200mm |
| 6 | Adjusting washer | 844308 | 1 | TH=1,300mm |
| 6 | Adjusting washer | 844316 | 1 | TH=1,500mm |
| 6 | Adjusting washer | 844320 | 1 | TH=1,600mm |
| 6 | Adjusting washer | 844324 | 1 | TH=1,700mm |
| 6 | Adjusting washer | 846961 | 1 | TH=1.075mm (844302) |
| 6 | Adjusting washer | 846970 | 1 | TH=1,62mm |
| 6 | Adjusting washer | 6212393 | 1 | TH=1,425mm |
| 7 | Spring | 244444 | 1 | Replaced by 1pc 244820, 1pc 244821. |
| 8 | Push rod | 244445 | 1 | Replaced by 1pc 244820, 1pc 244821. |
| 9 | Locating pin | 844339 | 2 | |
| 10 | Washer | 244537 | 1 | |
| 11 | Pin | 244447 | 2 | |
| 12 | Nut | 244448 | 1 |
| Item | Part Name | Part No. |
| 1 | Injector 3803246 | 3803246 |
| Details | |
| Engine model | TAD120CHC TD120G TD120GG |
| Application | Fuel Injector FUEL INJECTOR: 470115 Fuel System FUEL SYSTEM: A FUEL SYSTEM: B |
