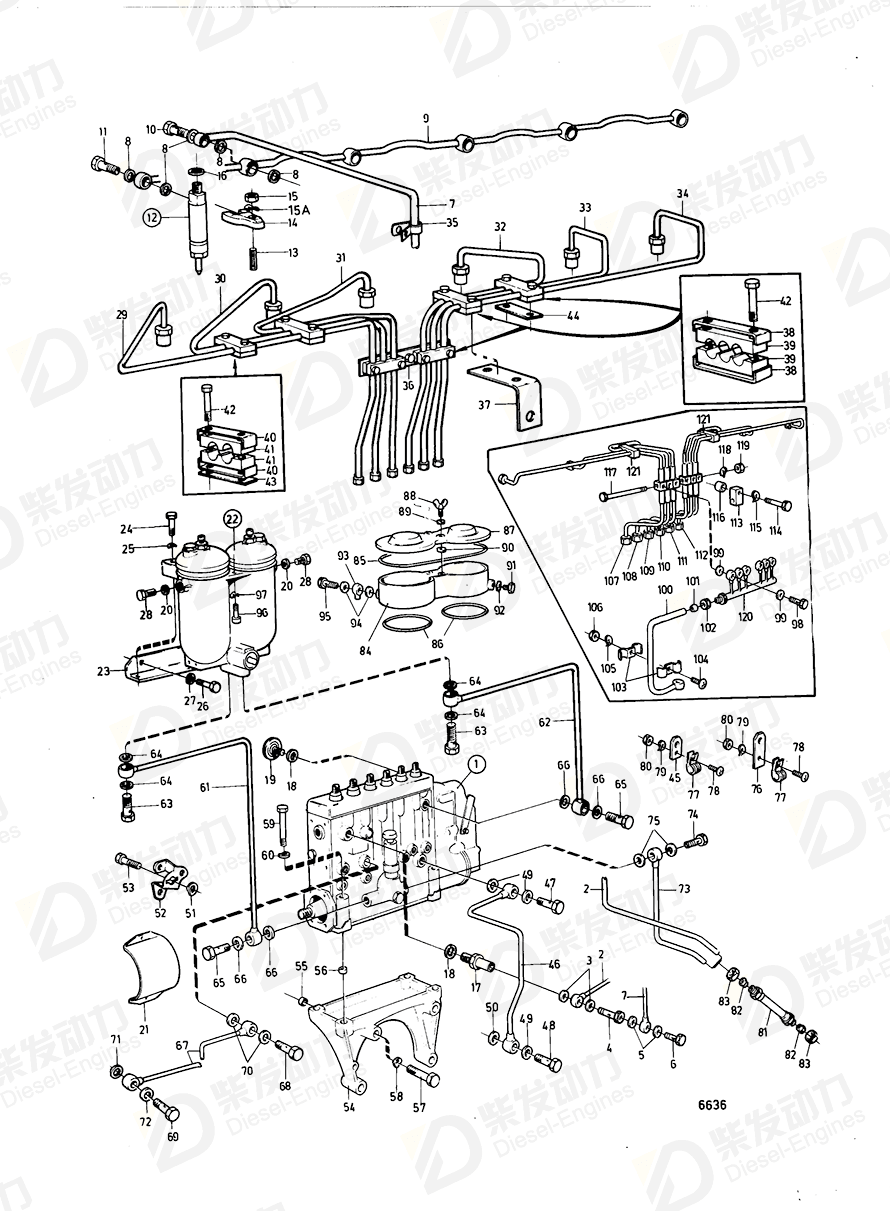

Injector 470115
| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 846682 | 1 | Power output 250 KWA / 1500, Ambac |
| 2 | Fuel pipe | 845712 | 1 | |
| 3 | Gasket | 18671 | 2 | |
| 4 | Hollow screw | 16496 | 1 | |
| 5 | Gasket, oil pipe | 946729 | 2 | |
| 6 | Hollow screw | 966834 | 1 | (74034) |
| 7 | Leak-off line | 844543 | 1 | |
| 8 | Gasket, oil pipe | 946729 | 13 | |
| 9 | Leak-off line | 822564 | 1 | MO-XXXXX/1495. |
| 10 | Hollow screw | 966834 | 1 | (74034) |
| 11 | Hollow screw | 74033 | 6 | |
| 12 | Injector | 470115 | 6 | |
| 12 | Injector | 3803246 | 6 | |
| 13 | Stud | 470560 | 6 | |
| 14 | Yoke | 469797 | 6 | (466399) |
| 15 | Hexagon nut | 961992 | 6 | |
| 16 | Sealing ring | 948965 | 6 | |
| 17 | Overflow valve | 35096 | 1 | |
| 18 | Gasket | 18671 | 2 | |
| 19 | Pressure equalizer | 466398 | 1 | |
| 20 | Gasket | 18671 | 2 | |
| 22 | Fuel filter kit | 243405 | 1 | |
| 23 | Bracket | 845319 | 1 | (836365) |
| 24 | Hexagon screw | 940134 | 2 | |
| 25 | Spring washer | 941909 | 2 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 26 | Hexagon screw | 940115 | 2 | |
| 27 | Spring washer | 942336 | 2 | |
| 28 | Plug | 960630 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 29 | Delivery pipe | 844551 | 1 | Replaced by delivery pipe kit 3875228 |
| 30 | Delivery pipe | 844552 | 1 | Replaced by delivery pipe kit 3875228 |
| 31 | Delivery pipe | 844553 | 1 | Replaced by delivery pipe kit 3875228 |
| 32 | Delivery pipe | 844554 | 1 | Replaced by delivery pipe kit 3875228 |
| 33 | Delivery pipe | 844555 | 1 | Replaced by delivery pipe kit 3875228 |
| 34 | Delivery pipe | 844556 | 1 | Replaced by delivery pipe kit 3875228 |
| 35 | Clamp | 947191 | 1 | |
| 36 | Bracket | 822546 | 1 | |
| 37 | Attaching plate | 844659 | 2 | See group 2B |
| 38 | Attaching clamp | 414346 | 10 | |
| 39 | Attaching clamp | 414347 | 10 | |
| 40 | Attaching clamp | 414344 | 2 | |
| 41 | Attaching clamp | 414345 | 2 | |
| 42 | Six point socket scr | 969408 | 12 | |
| 43 | Nut plate | 414736 | 1 | |
| 44 | Nut plate | 414735 | 1 | |
| 45 | Anchorage | 821036 | 1 | |
| 46 | Return pipe | 422246 | 1 | |
| 47 | Hollow screw | 25167 | 1 | |
| 48 | Hollow screw | 954394 | 1 | |
| 49 | Gasket | 18671 | 3 | |
| 50 | Gasket | 11998 | 1 | |
| 51 | Spring washer | 941906 | 1 | |
| 52 | Intermediate lever | 848677 | 1 | (821134) |
| 53 | Screw | 468848 | 1 | See group 2D |
| 54 | Bracket | 468558 | 1 | |
| 55 | Guide sleeve | 423161 | 2 | |
| 56 | Guide sleeve | 417588 | 1 | |
| 57 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 58 | Spring washer | 940280 | 4 | |
| 59 | Hexagon screw | 940156 | 4 | |
| 60 | Washer | 190509 | 4 | |
| 61 | Fuel pipe | 862790 | 1 | |
| 62 | Fuel pipe | 836749 | 1 | |
| 63 | Hollow screw | 26013 | 2 | AQ115A MOXXXX/86909-. |
| 64 | Gasket | 947624 | 4 | |
| 65 | Hollow screw | 25167 | 2 | |
| 66 | Gasket | 18671 | 4 | |
| 67 | Feed line | 423393 | 1 | |
| 68 | Hollow screw | 48634 | 1 | |
| 69 | Hollow screw | 837709 | 1 | |
| 70 | Gasket | 947281 | 2 | |
| 71 | Gasket | 18666 | 1 | |
| 72 | Gasket | 11994 | 1 | |
| 73 | Fuel pipe | 845711 | 1 | |
| 74 | Hollow screw | 25167 | 1 | |
| 75 | Gasket | 957178 | 2 | |
| 76 | Anchorage | 821625 | 2 | |
| 77 | Clamp | 952625 | 2 | |
| 78 | Cross recessed screw | 950046 | 2 | |
| 79 | Spring washer | 941906 | 2 | |
| 80 | Hexagon nut | 955825 | 2 | Late type |
| 81 | Fuel hose | 845450 | 2 | (880618) |
| 82 | Ferrule | 956969 | 4 | |
| 83 | Fitting nut | 956983 | 4 | |
| 84 | Reservoir | 846457 | 1 | |
| 85 | Sealing ring | 846460 | 1 | |
| 86 | Sealing ring | 846458 | 2 | |
| 87 | Cap | 846459 | 1 | |
| 88 | Wing screw | 846461 | 2 | |
| 89 | Gasket | 947620 | 2 | (233321) |
| 90 | E-circlip | 951665 | 2 | |
| 91 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 92 | Gasket | 947621 | 1 | |
| 93 | Banjo nipple | 25168 | 1 | |
| 94 | Gasket | 957178 | 2 | |
| 95 | Hollow screw | 25167 | 1 | |
| 96 | Hex. socket screw | 959223 | 1 | L = 30 MM |
| 96 | Hex. socket screw | 959227 | 1 | L = 50 MM |
| 97 | Spring washer | 941907 | 2 | |
| 98 | Hollow screw | 846183 | 6 | |
| 99 | Gasket | 845953 | 12 | |
| 100 | Tube | 844130 | 1 | See group 3 |
| 101 | Ferrule | 956969 | 1 | |
| 102 | Fitting nut | 956983 | 1 | |
| 103 | Attaching clamp | 404279 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 104 | Cross recessed screw | 956095 | 2 | |
| 105 | Spring washer | 941906 | 2 | |
| 106 | Hexagon nut | 955781 | 2 | |
| 107 | Delivery pipe | 846134 | 1 | Jacketed fuel pipes, Cyl. no. 1 class |
| 108 | Delivery pipe | 846133 | 1 | Jacketed fuel pipes, Cyl. no. 2 class |
| 109 | Delivery pipe | 846132 | 1 | Jacketed fuel pipes, Cyl. no. 3 class |
| 110 | Delivery pipe | 846131 | 1 | Jacketed fuel pipes, Cyl. no. 4 class |
| 111 | Delivery pipe | 846130 | 1 | Jacketed fuel pipes, Cyl. no. 5 class |
| 112 | Delivery pipe | 846129 | 1 | Jacketed fuel pipes, Cyl. no. 6 class |
| 113 | Spacer | 846119 | 1 | |
| 114 | Hexagon screw | 959800 | 1 | See group 2B |
| 115 | Spring washer | 942336 | 3 | |
| 116 | Spacer sleeve | 821540 | 1 | Replaced by 1pc 1578938., L=22mm |
| 117 | Hexagon screw | 955288 | 1 | |
| 118 | Spring washer | 941906 | 1 | |
| 119 | Hexagon nut | 955781 | 1 | |
| 120 | Leak-off line | 846121 | 1 | |
| 121 | Clamp | 846120 | 2 | |
| 15A | Spring washer | 942336 | 6 |
| Item | Part Name | Part No. |
| 12 | Injector 470115 | 470115 |
| Details | |
| Engine model | TAD120CHC TD120G TD120GG |
| Application | Fuel Injector FUEL INJECTOR: 470115 Fuel System FUEL SYSTEM: A FUEL SYSTEM: B |
