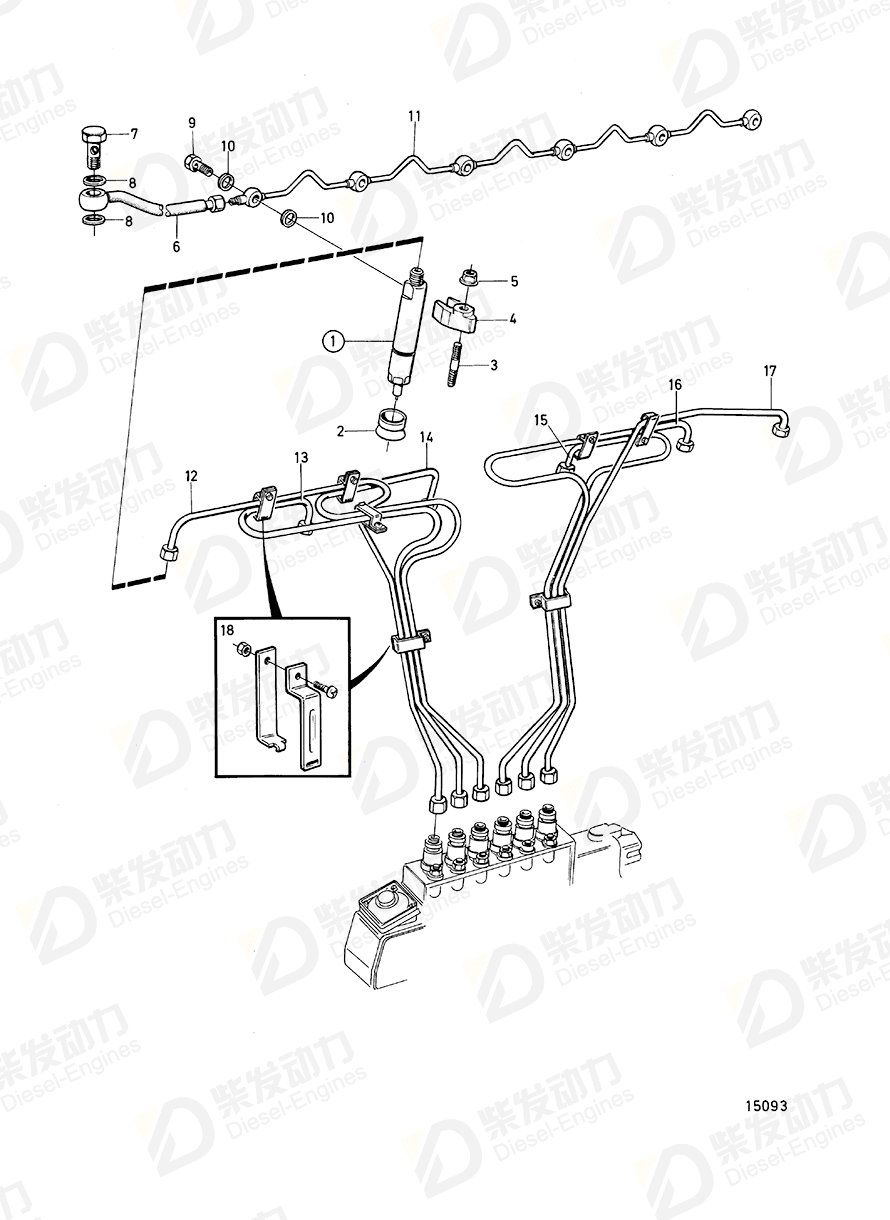

Injector 479443
| No. | Part Name | Part Number | Qty | Description |
| 1 | Injector | 479443 | 6 | |
| 1 | Injector | 3803279 | 6 | |
| 2 | Sealing ring | 469455 | 6 | |
| 3 | Stud | 1545022 | 6 | |
| 4 | Yoke | 469797 | 6 | (466399) |
| 5 | Flange nut | 971095 | 6 | Alt |
| 6 | Leak-off line | 479690 | 1 | |
| 7 | Hollow screw | 25167 | 1 | |
| 8 | Gasket | 969011 | 2 | |
| 9 | Hollow screw | 74033 | 6 | |
| 10 | Gasket | 947620 | 12 | (233321) |
| 11 | Leak-off pipe | 1545081 | 1 | |
| 12 | Delivery pipe | 479881 | 1 | Cyl 1, SN-2100281129 |
| 13 | Delivery pipe | 479882 | 1 | Cyl 2, SN-2100281129 |
| 14 | Delivery pipe | 479883 | 1 | Cyl 3, SN-2100281129 |
| 15 | Delivery pipe | 479944 | 1 | Cyl 4, SN-2100281129 |
| 16 | Delivery pipe | 479945 | 1 | Cyl 5, SN-2100281129 |
| 17 | Delivery pipe | 479946 | 1 | Cyl 6, SN-2100281129 |
| 18 | Attaching clamp | 8194351 | 3 | 2-pipe |
| 18 | Clamp | 8194352 | 4 | 3-pipe |
| Item | Part Name | Part No. |
| 1 | Injector 479443 | 479443 |
| Details | |
| Engine model | TWD1030ME TWD1031VE |
| Application | Fuel Injector, Components: 479443 Injectors, Pressure Pipes and Leak-off Line |
