Injector 848228

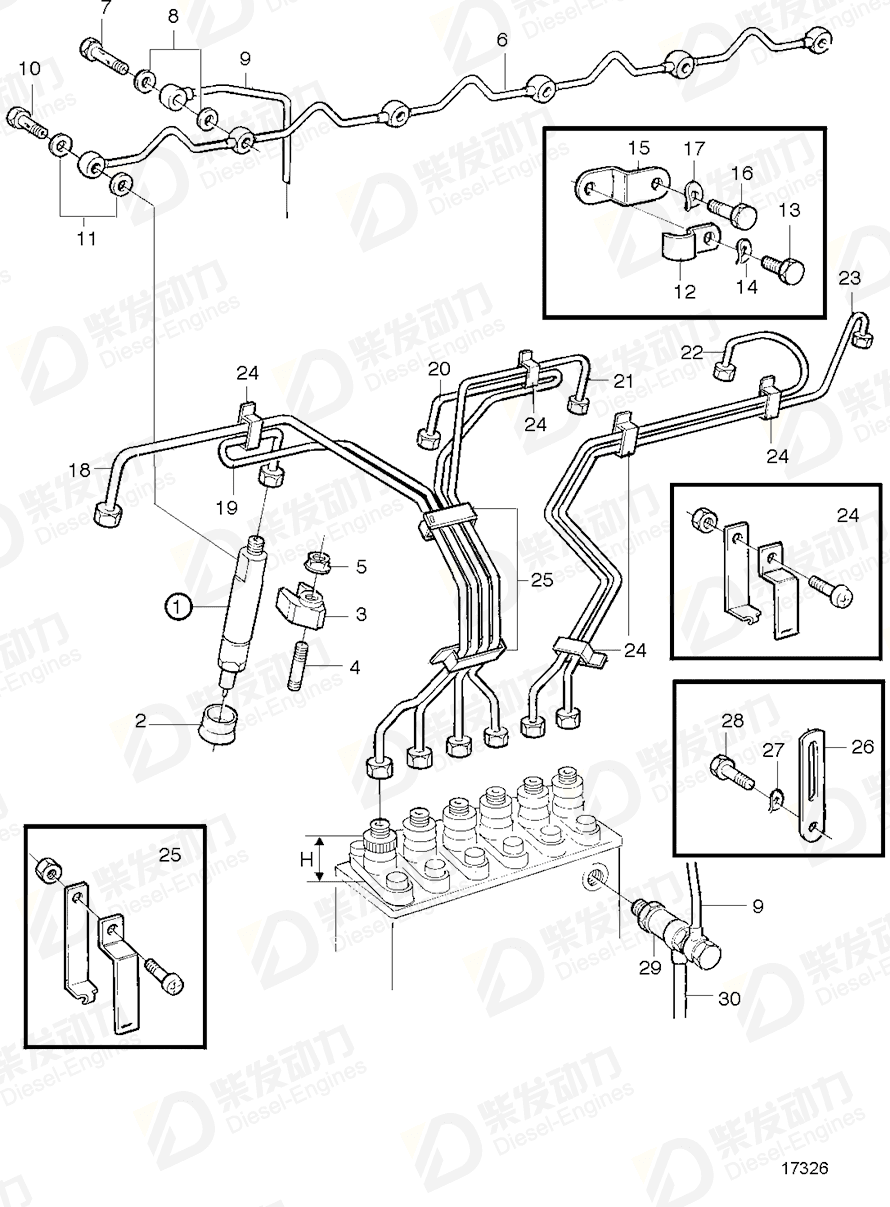

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injector | 848228 | 6 | |
| 1 | Injector | 3803251 | 6 | |
| 2 | Sealing ring | 469455 | 6 | |
| 3 | Yoke | 469797 | 6 | (466399) |
| 4 | Stud | 470560 | 6 | |
| 5 | Flange nut | 971095 | 6 | Alt |
| 6 | Leak-off line | 822564 | 1 | MO-XXXXX/1495. |
| 7 | Hollow screw | 966834 | 1 | (74034) |
| 8 | Gasket | 947620 | 2 | (233321) |
| 9 | Leak-off line | 470185 | 1 | |
| 10 | Hollow screw | 74033 | 5 | |
| 11 | Gasket | 947620 | 12 | (233321) |
| 12 | Clamp | 121563 | 1 | |
| 13 | Cross recessed screw | 950044 | 1 | |
| 14 | Spring washer | 941906 | 1 | |
| 15 | Bracket | 465584 | 1 | |
| 16 | Hexagon screw | 940100 | 1 | |
| 17 | Spring washer | 941906 | 1 | |
| 18 | Pressure pipe, cyl 1 | 468981 | 1 | SN-2120234293 |
| 18 | Delivery pipe, cyl 1 | 20363781 | 1 | SN2120231515- |
| 18 | Delivery pipe, cyl 1 | 20363791 | 1 | H=42,5mm. the hight of pressure regulator retainer over the pump housing., For 3828439 |
| 19 | Pressure pipe, cyl 2 | 468982 | 1 | SN-2120234293 |
| 19 | Delivery pipe, cyl 2 | 20363782 | 1 | SN2120231515- |
| 19 | Delivery pipe, cyl 2 | 20363792 | 1 | H=42,5mm. the hight of pressure regulator retainer over the pump housing., For 3828439 |
| 20 | Pressure pipe, cyl 3 | 468983 | 1 | SN-2120234293 |
| 20 | Delivery pipe, cyl 3 | 20363783 | 1 | SN2120231515- |
| 20 | Delivery pipe, cyl 3 | 20363793 | 1 | H=42,5mm. the hight of pressure regulator retainer over the pump housing., For 3828439 |
| 21 | Pressure pipe, cyl 4 | 468984 | 1 | SN-2120234293 |
| 21 | Delivery pipe, cyl 4 | 20363784 | 1 | SN2120231515- |
| 21 | Delivery pipe, cyl 4 | 20363794 | 1 | H=42,5mm. the hight of pressure regulator retainer over the pump housing. |
| 22 | Pressure pipe, cyl 5 | 862037 | 1 | H=46,5mm. the hight of pressure regulator retainer over the pump housing., SN-2120234293 |
| 22 | Delivery pipe, cyl 5 | 20363785 | 1 | SN2120231515- |
| 22 | Delivery pipe, cyl 5 | 20363795 | 1 | H=42,5mm. the hight of pressure regulator retainer over the pump housing. |
| 23 | Pressure pipe, cyl 6 | 862038 | 1 | H=46,5mm. the hight of pressure regulator retainer over the pump housing., SN-2120234293 |
| 23 | Delivery pipe, cyl 6 | 20363786 | 1 | SN2120231515- |
| 23 | Delivery pipe, cyl 6 | 20363796 | 1 | H=42,5mm. the hight of pressure regulator retainer over the pump housing., For 3828439 |
| 24 | Attaching clamp | 8194327 | 5 | 2-pipes |
| 24 | Attaching clamp | 8194351 | 5 | 2-pipe |
| 25 | Clamp, 4-pipes | 8194329 | 2 | SN2120231515- |
| 25 | Attaching clamp, 4-pipes | 8194353 | 2 | SN-2120231514 |
| 26 | Bracket | 422323 | 1 | |
| 27 | Spring washer | 941906 | 1 | |
| 28 | Hexagon screw | 940100 | 1 | |
| 30 | Fuel pipe | 866933 | 1 |
| Item | Part Name | Part No. |
| 1 | Injector 848228 | 848228 |
| Details | |
| Engine model | TID121L-87 TID121LG TID121LG-87 TID121LGP-87 TID121LP TID121LP-87 TID121LPB-87 TWD1210G TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1211G |
| Application | Fuel Injector Fuel Injector, Components: 848228 Fuel System: A Fuel System: B Fuel System: C Injectors, Pressure Pipes and Leak-off Line: B Injectors, Pressure Pipes and Leak-off Line: C |
| Specification | |
| Descriptions | TWD1210P, TWD1211P |
