Inlet bend 843593

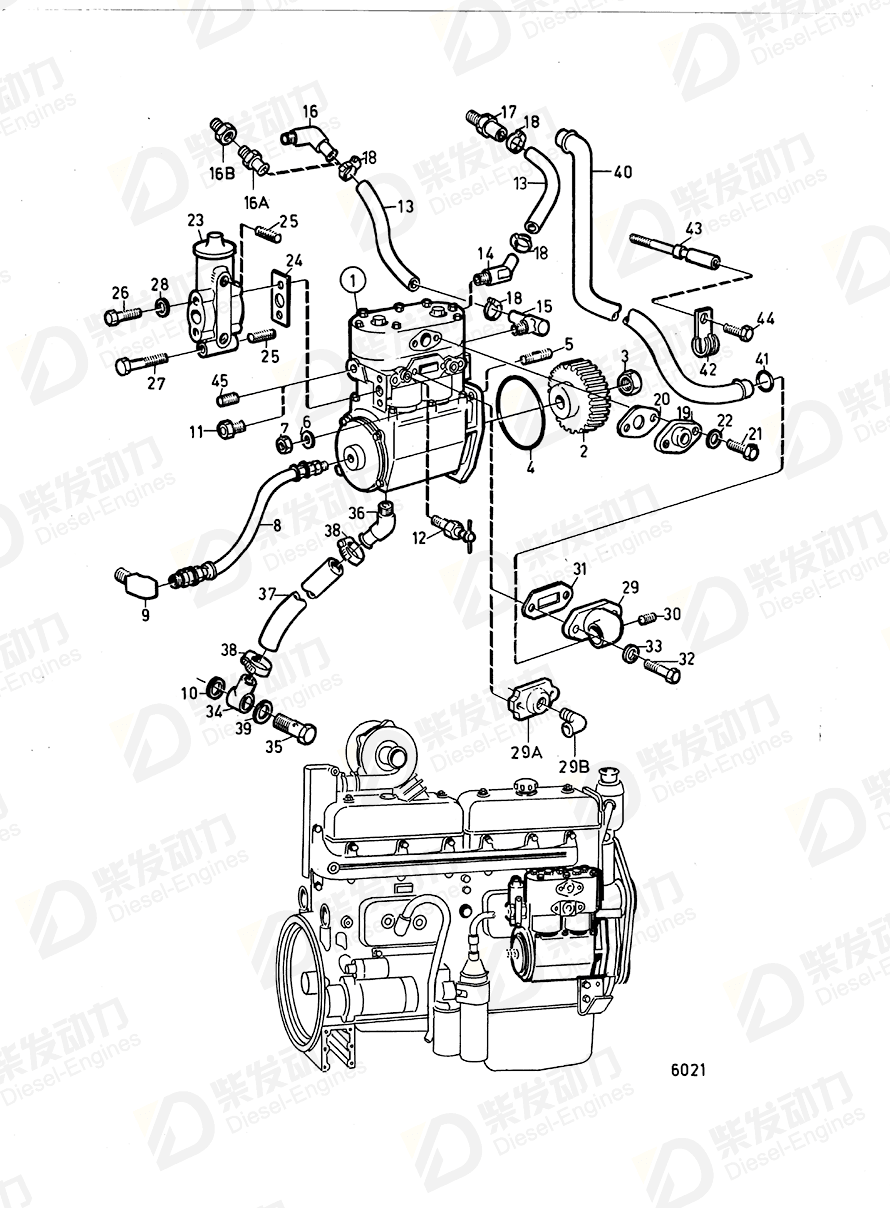

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor | 351453 | 1 | |
| 1 | Compressor, compressor components not spec. | 1599919 | 1 | TUFLO 500 |
| 2 | Gear | 423087 | 1 | |
| 3 | Nut | 346918 | 1 | |
| 4 | Gasket | 413619 | 1 | |
| 5 | Hexagon screw | 955345 | 3 | |
| 6 | Spring washer | 941911 | 3 | |
| 7 | Hexagon nut | 955828 | 3 | |
| 8 | Hose assembly | 344624 | 1 | |
| 9 | Elbow nipple | 180110 | 1 | MO 26456-. |
| 10 | Gasket | 18818 | 1 | |
| 11 | Reduction nipple | 332262 | 1 | |
| 12 | Shut-off cock | 82745 | 1 | |
| 13 | Rubber hose | 943368 | 1 | L=4000mm |
| 14 | Elbow nipple | 942240 | 1 | |
| 15 | Hose nipple | 961653 | 1 | |
| 16 | Elbow nipple | 942240 | 1 | |
| 17 | Hose nipple | 961604 | 1 | MOXXXXX/31956- |
| 18 | Hose clamp | 943472 | 4 | |
| 19 | Flange | 330634 | 1 | |
| 20 | Gasket | 324359 | 1 | |
| 21 | Hexagon screw | 940135 | 2 | |
| 22 | Spring washer | 941907 | 2 | |
| 23 | Governor | 1503492 | 1 | |
| 24 | Gasket | 324042 | 1 | |
| 25 | Plug | 16325 | 4 | |
| 26 | Hexagon screw | 955528 | 1 | |
| 27 | Hexagon screw | 955529 | 1 | |
| 28 | Washer | 955894 | 2 | |
| 29 | Inlet bend | 843593 | 1 | |
| 30 | Plug | 16325 | 1 | |
| 31 | Gasket | 324117 | 1 | |
| 32 | Hexagon screw | 940135 | 2 | |
| 33 | Spring washer | 941907 | 2 | |
| 34 | Banjo nipple | 824463 | 1 | MO-28308. |
| 35 | Hollow screw | 836832 | 1 | MO-28308. |
| 36 | Hose nipple | 961604 | 1 | MOXXXXX/31956- |
| 37 | Hose bend | 843591 | 1 | |
| 38 | Hose clamp | 943472 | 2 | |
| 39 | Gasket | 18818 | 1 | |
| 40 | Inlet pipe | 843605 | 1 | |
| 41 | Sealing ring | 421158 | 2 | |
| 42 | Clamp | 121557 | 2 | |
| 43 | Screw | 821267 | 2 | When emergency stop is mounted., L=85mm |
| 44 | Flange screw | 942624 | 2 | 5/16UNCx13 |
| 45 | Plug | 952077 | 1 |
| Item | Part Name | Part No. |
| 29 | Inlet bend 843593 | 843593 |
| Details | |
| Engine model | TD60A TD60B TD60D |
| Application | AIR COMPRESSOR AND INSTALLATION COMPONENTS Air Compressor and Installation Components: A Air Compressor and Installation Components: B |
Tags: Inlet bend, Volvo Penta, 843593
