Inlet valve 844594

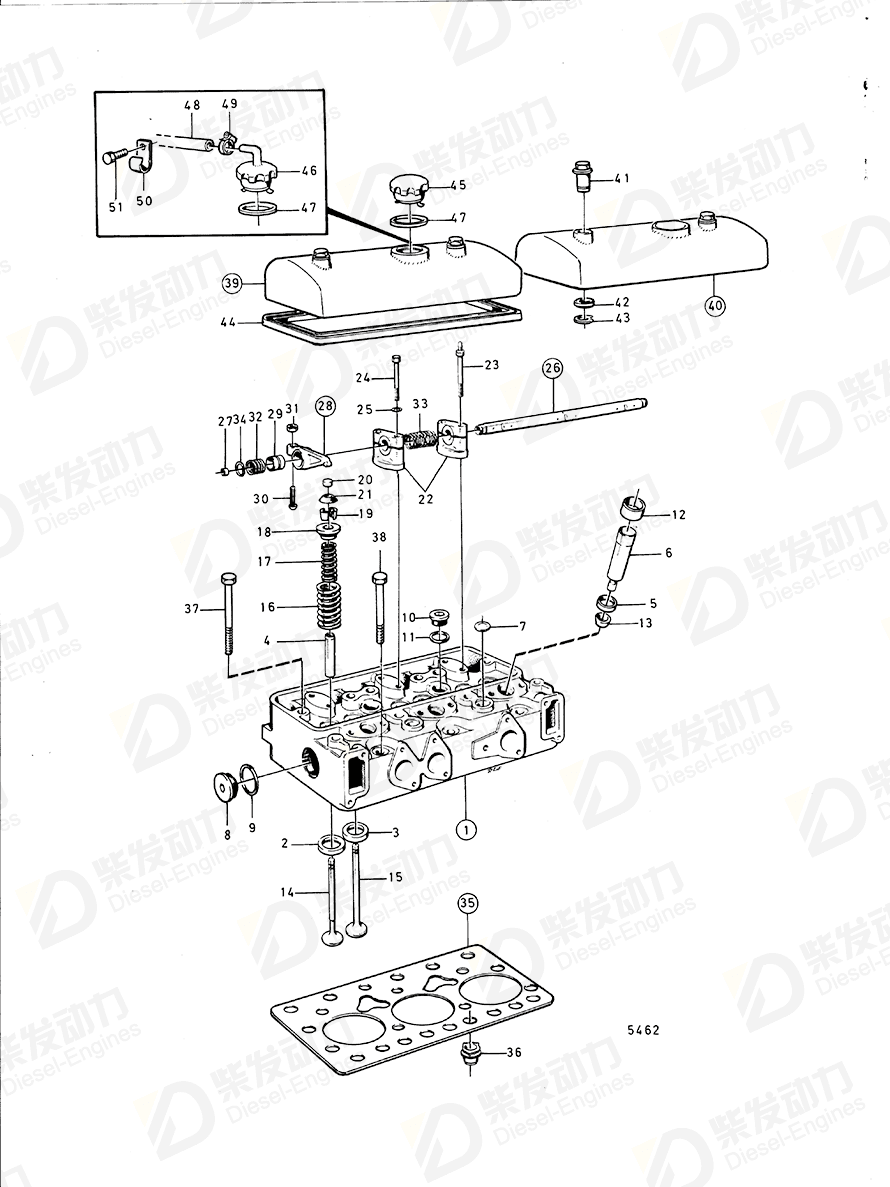

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803035 | 1 | (466549) |
| 2 | Valve seat | 421011 | 6 | Std D |
| 2 | Valve seat | 421316 | 6 | 0.20mm o.s |
| 3 | Valve seat | 466266 | 6 | Std D |
| 3 | Valve seat | 466307 | 6 | 0.20mm o.s |
| 4 | Valve guide | 466386 | 12 | |
| 5 | Sealing ring | 466405 | 6 | |
| 6 | Sleeve | 466403 | 6 | |
| 7 | Expansion plug | 192426 | 2 | |
| 8 | Plug | 467367 | 4 | |
| 9 | Gasket | 469328 | 4 | |
| 10 | Plug | 466230 | 4 | |
| 11 | Gasket | 420166 | 4 | |
| 12 | Ring | 466420 | 6 | |
| 13 | O-ring | 466922 | 6 | (944124) |
| 14 | Inlet valve | 844594 | 6 | (466379) |
| 15 | Exhaust valve | 471195 | 6 | (466381) |
| 16 | Valve spring | 466384 | 12 | |
| 17 | Valve spring | 466383 | 12 | |
| 18 | Valve spring washer | 466382 | 12 | |
| 19 | Valve cotter | 468305 | 24 | |
| 20 | Valve cap | 469365 | 12 | (417133) |
| 21 | Protecting ring | 469456 | 12 | Replaced by 1pc 829493, 1pc 833521, 1pc 957181., (466932) |
| 22 | Bearing bracket | 421416 | 6 | |
| 23 | Stud | 420270 | 4 | |
| 24 | Hexagon screw | 955540 | 8 | MOXXXXX/105195- |
| 25 | Spring washer | 942336 | 8 | |
| 26 | Shaft | 421019 | 2 | |
| 27 | Cap plug | 946778 | 4 | |
| 28 | Rocker arm | 422063 | 12 | |
| 29 | Bushing | 422066 | 12 | |
| 30 | Ball stud | 423058 | 12 | |
| 31 | Hexagon nut | 940175 | 12 | |
| 32 | Spring | 421173 | 4 | |
| 33 | Spring | 421172 | 4 | |
| 34 | Retaining ring | 914459 | 4 | |
| 35 | Cylinder head gasket | 275525 | 2 | |
| 36 | Sealing ring | 422413 | 2 | D=11mm |
| 36 | Sealing ring | 422414 | 12 | D=32mm |
| 36 | Sealing ring | 466421 | 16 | D=16mm |
| 37 | Flange screw | 421218 | 20 | |
| 38 | Flange screw | 466764 | 6 | |
| 39 | Cover | 421063 | 1 | |
| 40 | Cover | 421065 | 1 | |
| 41 | Cap nut | 424341 | 4 | |
| 42 | Sealing ring | 469846 | 4 | |
| 43 | Retaining ring | 914449 | 4 | |
| 44 | Gasket | 421066 | 2 | |
| 45 | Oil filler cap | 420292 | 1 | |
| 46 | Breather cap | 848261 | 2 | For engine,40° inclanation., (844491) |
| 47 | Gasket | 940096 | 1 | |
| 48 | Hose | 844508 | 2 | For engine,40° inclanation. |
| 49 | Hose clamp | 994559 | 2 | |
| 50 | Clamp | 943717 | 2 | |
| 51 | Hex. socket screw | 956567 | 2 | For engine,40° inclanation. |
| Item | Part Name | Part No. |
| 14 | Inlet valve 844594 | 844594 |
| Details | |
| Engine model | TD70G TID70G |
| Application | Cylinder Head Cylinder Head: A |
| Specification | |
| Descriptions | (466379) |
