Inspection lid 1542050

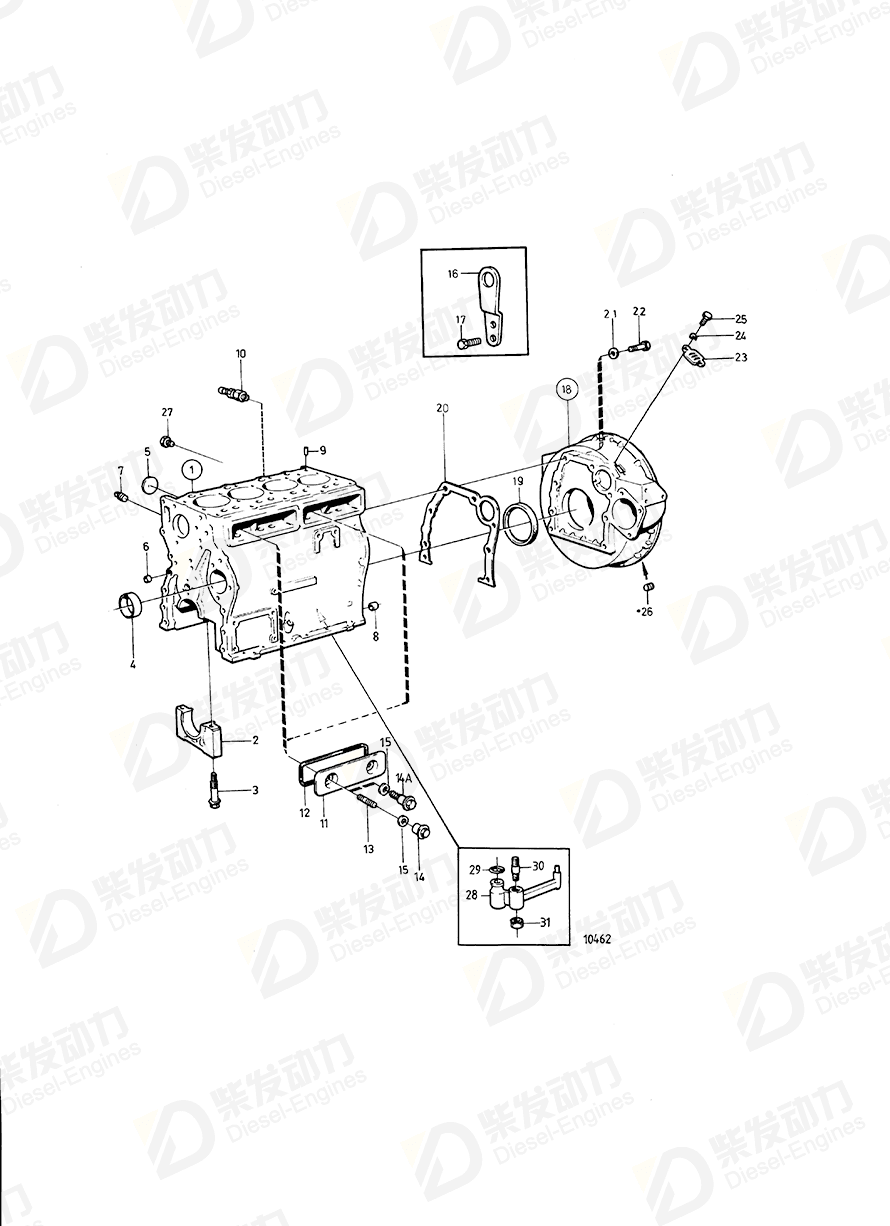

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 838620 | 1 | Repl by 860257 |
| 1 | Cylinder block | 860257 | 1 | |
| 3 | Flange screw | 1542416 | 10 | |
| 4 | Camshaft bushing | 1542067 | 5 | |
| 5 | Expansion plug | 463905 | 2 | |
| 6 | Cap plug | 955083 | 4 | |
| 7 | Plug | 952077 | 1 | |
| 8 | Guide sleeve | 415311 | 3 | |
| 9 | Grooved pin | 946402 | 2 | |
| 10 | Shut-off cock | 947893 | 1 | |
| 11 | Inspection lid | 1542050 | 2 | |
| 12 | Seal | 1542052 | 2 | |
| 13 | Stud | 924075 | 4 | |
| 14 | Cap nut | 1542286 | 4 | |
| 15 | Gasket | 469486 | 4 | |
| 17 | Flange screw | 946441 | 2 | |
| 18 | Flywheel housing | 1542224 | 1 | |
| 19 | Sealing ring | 3582851 | 1 | |
| 20 | Gasket | 1542227 | 1 | |
| 21 | Spring washer | 941908 | 10 | |
| 22 | Flange screw | 965185 | 8 | |
| 22 | Flange screw | 965223 | 2 | L=75mm |
| 23 | Breather cap | 417429 | 1 | |
| 24 | Spring washer | 941906 | 2 | |
| 25 | Hexagon screw | 955271 | 2 | |
| 26 | Closure | 466216 | 1 | |
| 27 | Plug | 191026 | 1 | |
| 28 | Nozzle | 422782 | 4 | MO2012- |
| 29 | O-ring | 955981 | 4 | |
| 30 | Stud | 1542380 | 4 | |
| 31 | Lock nut | 946035 | 4 | |
| 14A | Shoulder screw | 859447 | 4 | Later prod |
| Item | Part Name | Part No. |
| 11 | Inspection lid 1542050 | 1542050 |
| Details | |
| Engine model | TD30A TD31ACE TD40A |
| Application | Cylinder Block and Flywheel Housing |
