Insulating plate 6212615

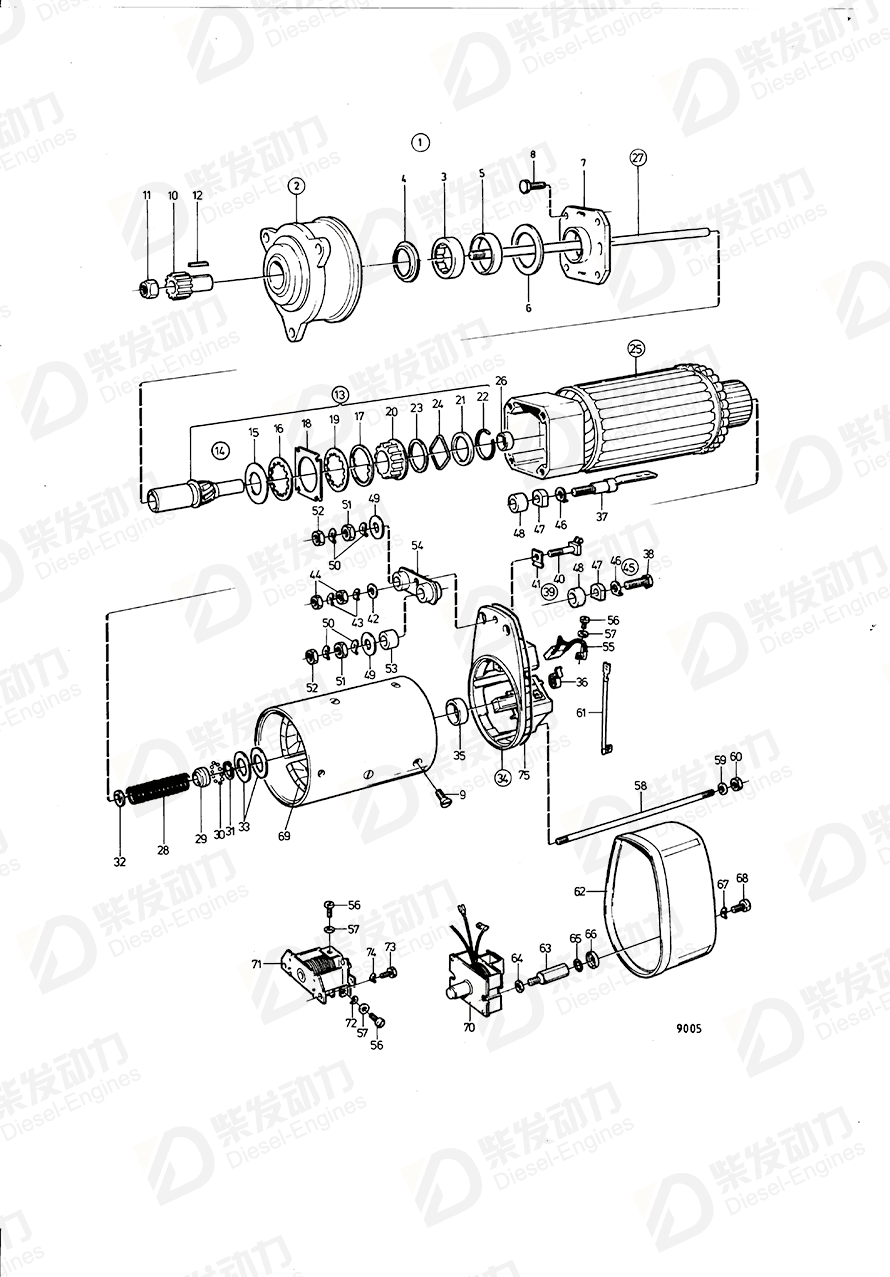

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Starter motor |
4881031 |
1 |
MO60314- |
| 3 |
Needle bearing |
240453 |
1 |
|
| 4 |
Sealing ring |
243172 |
1 |
|
| 5 |
Bearing bushing |
240455 |
1 |
|
| 6 |
Spacer washer |
240457 |
1 |
|
| 7 |
Bearing shield |
240456 |
1 |
|
| 8 |
Screw |
848095 |
4 |
|
| 9 |
Cross recessed screw |
956240 |
8 |
|
| 10 |
Starter pinion |
6643675 |
1 |
|
| 11 |
Hexagon nut |
6212618 |
1 |
|
| 12 |
Key |
240473 |
1 |
|
| 13 |
Disc clutch |
244539 |
1 |
|
| 14 |
Small parts kit |
6644414 |
1 |
|
| 25 |
Anchor |
6212614 |
1 |
(6212706) |
| 26 |
Needle bearing |
243091 |
1 |
|
| 27 |
Rotor shaft |
6643680 |
1 |
|
| 28 |
Spring |
240470 |
1 |
|
| 29 |
Stop ring |
6212622 |
1 |
|
| 30 |
Ball |
184453 |
11 |
(844412) |
| 31 |
Lock ring |
240471 |
1 |
|
| 32 |
Washer |
844410 |
1 |
|
| 33 |
Shim |
240486 |
1 |
TH=0.3mm |
| 33 |
Shim |
240487 |
1 |
TH=0.5mm |
| 33 |
Shim |
241904 |
1 |
TH=0.2mm |
| 34 |
Bearing shield |
244315 |
1 |
|
| 35 |
Bearing bushing |
240481 |
1 |
|
| 36 |
Brush spring |
240478 |
4 |
|
| 37 |
Terminal screw |
240479 |
1 |
|
| 38 |
Hexagon screw |
955322 |
1 |
|
| 39 |
Small parts kit |
6643672 |
1 |
|
| 45 |
Connecting kit |
241149 |
1 |
|
| 54 |
Insulating plate |
6212615 |
1 |
|
| 55 |
Carbon brush set |
6212621 |
1 |
(6212707) |
| 56 |
Screw |
244218 |
6 |
|
| 56 |
Screw |
6643679 |
2 |
|
| 57 |
Spring washer |
941905 |
8 |
Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 58 |
Bolt |
6643677 |
1 |
|
| 58 |
Bolt |
6643678 |
3 |
|
| 59 |
Washer |
955892 |
4 |
|
| 60 |
Hexagon nut |
955781 |
4 |
|
| 62 |
Cover |
6212620 |
1 |
|
| 63 |
Bolt |
243713 |
2 |
|
| 64 |
Washer |
6212619 |
2 |
(240498) |
| 65 |
Gasket |
72202 |
2 |
|
| 66 |
Washer |
72201 |
2 |
|
| 67 |
Spring washer |
941906 |
2 |
|
| 68 |
Cross recessed screw |
956094 |
2 |
|
| 69 |
Field winding |
6212705 |
1 |
|
| 70 |
Starter solenoid |
240493 |
1 |
|
| 71 |
Actuator solenoid |
240488 |
1 |
|
| 72 |
Washer |
906822 |
3 |
|
| 73 |
Hexagon screw |
955294 |
2 |
|
| 74 |
Spring washer |
941907 |
2 |
|
| 75 |
O-ring |
72225 |
1 |
|
| Item |
Part Name |
Part No. |
| 54 |
Insulating plate 6212615 |
6212615 |
| Details |
| Application |
Starter |
