Leak-off line 865771

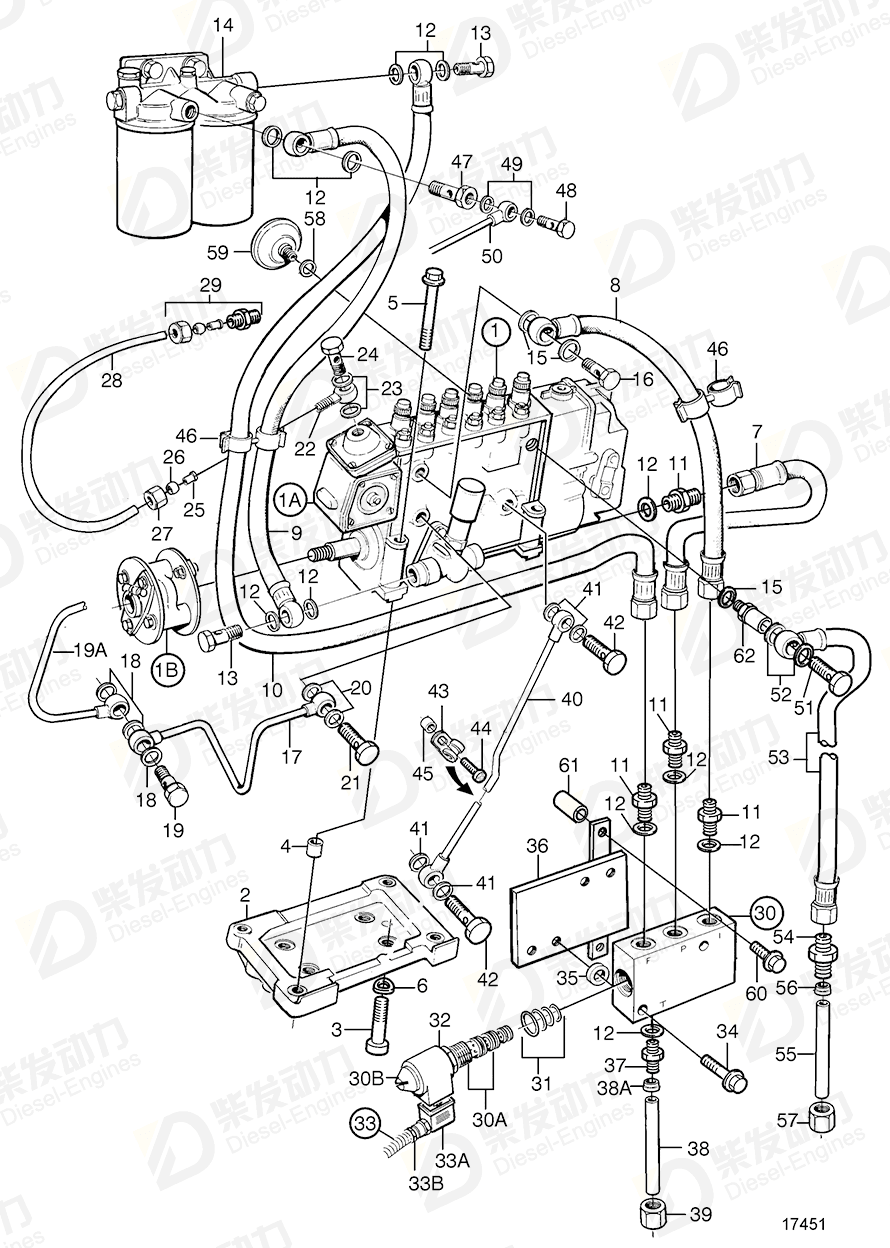

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 866200 | 1 | |
| 1 | Injection pump | 3803722 | 1 | |
| 2 | Shelf | 420926 | 1 | |
| 3 | Hex. socket screw | 959241 | 4 | |
| 4 | Guide sleeve | 417588 | 2 | |
| 5 | Flange screw | 965189 | 4 | |
| 6 | Spring washer | 941908 | 4 | |
| 7 | Hose | 3825848 | 1 | |
| 8 | Hose | 3826284 | 1 | |
| 9 | Hose | 3825670 | 1 | |
| 10 | Hose | 3827019 | 1 | |
| 11 | Nipple | 941754 | 4 | |
| 12 | Gasket | 969011 | 10 | |
| 13 | Hollow screw | 25167 | 2 | |
| 15 | Gasket | 969011 | 2 | |
| 16 | Hollow screw | 25167 | 1 | |
| 17 | Oil pressure pipe | 420944 | 1 | |
| 18 | Gasket | 947281 | 2 | |
| 19 | Hollow screw | 943103 | 1 | When oil supervision is mounted. |
| 20 | Gasket | 947281 | 2 | |
| 21 | Hollow screw | 48634 | 1 | |
| 22 | Banjo nipple | 945417 | 1 | |
| 23 | Gasket | 947282 | 2 | Late type |
| 24 | Hollow screw | 969299 | 1 | |
| 25 | Support sleeve | 944717 | 1 | |
| 26 | Sleeve | 954364 | 1 | |
| 27 | Fitting nut | 954356 | 1 | |
| 28 | Tube | 945460 | 1 | L=900mm |
| 30 | Valve | 866698 | 1 | 12V repl by 3828982 |
| 30 | Valve | 866699 | 1 | |
| 30 | Valve | 3828979 | 1 | For 3828983 |
| 30 | Fuel valve | 3828982 | 1 | |
| 30 | Fuel valve | 3828983 | 1 | |
| 31 | Gasket | 3825238 | 1 | |
| 31 | Gasket kit | 3828981 | 1 | |
| 32 | Magnet | 3825239 | 1 | |
| 32 | Magnet | 3825240 | 1 | |
| 33 | Cable kit | 866927 | 1 | |
| 34 | Flange screw | 947760 | 2 | M8x40mm |
| 35 | Washer | 191172 | 2 | Spec.867054, 867221. |
| 36 | Bracket | 3826159 | 1 | |
| 37 | Nipple | 977677 | 1 | |
| 38 | Fuel pipe | 3825770 | 1 | |
| 39 | Fitting nut | 956983 | 1 | |
| 40 | Oil return pipe | 865773 | 1 | |
| 41 | Gasket | 969011 | 4 | |
| 42 | Hollow screw | 25167 | 2 | |
| 43 | Clamp | 942542 | 1 | |
| 44 | Flange screw | 945444 | 1 | |
| 45 | Spacer washer | 946048 | 1 | |
| 46 | Retainer | 866663 | 3 | |
| 47 | Hollow screw | 16496 | 1 | |
| 48 | Hollow screw | 74033 | 1 | |
| 49 | Gasket | 947620 | 2 | (233321) |
| 50 | Leak-off line | 865771 | 1 | |
| 51 | Hollow screw | 25167 | 1 | |
| 52 | Gasket | 969011 | 2 | |
| 53 | Hose | 3826284 | 1 | |
| 54 | Nipple | 957055 | 1 | |
| 55 | Fuel pipe | 3825770 | 1 | |
| 56 | Ferrule | 956969 | 1 | |
| 57 | Fitting nut | 956983 | 1 | |
| 58 | Gasket | 969011 | 1 | |
| 59 | Pressure equalizer | 477173 | 1 | (466398) |
| 60 | Flange screw | 969313 | 2 | |
| 61 | Spacer sleeve | 822779 | 2 | |
| 62 | Overflow valve | 3825154 | 1 | |
| 19A | Oil pressure pipe | 420945 | 1 | |
| 30A | Valve | 3825235 | 1 | |
| 33A | Housing | 866664 | 1 | |
| 33B | Grommet | 844576 | 1 | |
| 38A | Ferrule | 956969 | 1 |
| Item | Part Name | Part No. |
| 50 | Leak-off line 865771 | 865771 |
| Details | |
| Engine model | TWD630ME TWD630VE |
| Application | Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel Injector and Delivery Pipes Injection Pump with Shut-off Valve, Energized to Run. Option. |
