Level relay 1622515

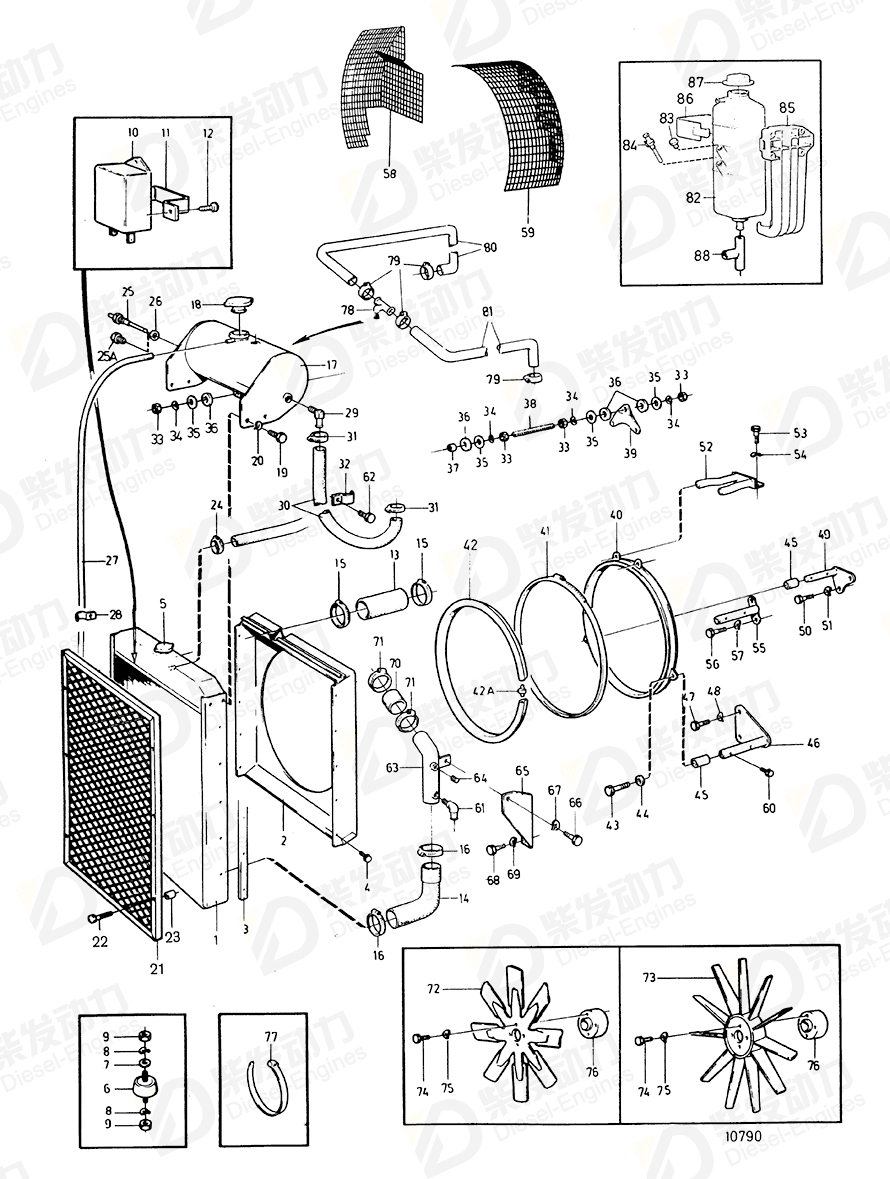

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 863799 | 1 | |
| 2 | Fan shroud | 847550 | 1 | |
| 3 | Sealing strip | 821707 | 1 | For engine with 2 pc oil cooler 836821., Spec. 867056, 867058, 867059, 867279. |
| 4 | Hexagon screw | 945970 | 10 | |
| 5 | Radiator cap | 344753 | 1 | |
| 6 | Rubber cushion | 849170 | 2 | |
| 7 | Washer | 955898 | 2 | Late type |
| 8 | Spring washer | 940280 | 4 | |
| 9 | Hexagon nut | 955850 | 4 | |
| 10 | Level relay | 1622515 | 1 | |
| 11 | Clamp | 941772 | 1 | |
| 12 | Cross recessed screw | 955120 | 3 | |
| 13 | Hose | 952980 | 1 | L=60mm |
| 14 | Hose | 847553 | 1 | |
| 15 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 16 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 17 | Expansion tank | 3828638 | 1 | |
| 18 | Pressure cap | 866095 | 1 | (350578) |
| 19 | Hexagon screw | 955294 | 4 | |
| 20 | Spring washer | 941907 | 4 | |
| 21 | Radiator protector | 862958 | 1 | |
| 22 | Flange screw | 947760 | 6 | M8x40mm |
| 23 | Spacer sleeve | 833243 | 6 | |
| 24 | Hose clamp | 976578 | 1 | (947065) |
| 25 | Level indicator | 1581232 | 1 | |
| 26 | Gasket | 11994 | 1 | |
| 27 | Hose | 192618 | 1 | L=1400mm |
| 28 | Clamp | 18387 | 3 | |
| 29 | Elbow nipple | 942240 | 1 | |
| 30 | Hose | 952969 | 1 | (943368) L=600mm |
| 31 | Hose clamp | 943472 | 2 | |
| 32 | Clamp | 949379 | 1 | |
| 33 | Hexagon nut | 955782 | 4 | |
| 34 | Spring washer | 941907 | 4 | |
| 35 | Washer | 418531 | 4 | |
| 36 | Rubber bushing | 403877 | 4 | |
| 37 | Spacer sleeve | 403894 | 2 | |
| 38 | Control rod | 845404 | 1 | |
| 39 | Anchorage | 847551 | 1 | |
| 40 | Fan ring | 847073 | 1 | |
| 41 | Hose clamp | 947467 | 1 | |
| 42 | Sealing strip | 837300 | 1 | |
| 43 | Hexagon screw | 955523 | 4 | |
| 44 | Spring washer | 941907 | 4 | |
| 45 | Washer | 976944 | 2 | |
| 46 | Anchorage | 845211 | 1 | |
| 47 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 48 | Spring washer | 942336 | 2 | |
| 49 | Anchorage | 845210 | 1 | |
| 50 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 51 | Spring washer | 942336 | 2 | |
| 52 | Anchorage | 845209 | 1 | |
| 53 | Hexagon screw | 959798 | 2 | |
| 54 | Spring washer | 942336 | 2 | |
| 55 | Anchorage | 847529 | 1 | |
| 56 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 57 | Spring washer | 942336 | 2 | |
| 58 | Safety net | 847542 | 1 | Right |
| 59 | Safety net | 847541 | 1 | Left |
| 60 | Hexagon screw | 945970 | 8 | |
| 61 | Elbow nipple | 942240 | 1 | |
| 62 | Cross recessed screw | 965395 | 1 | |
| 63 | Coolant pipe | 846832 | 1 | |
| 64 | Plug | 479977 | 2 | |
| 65 | Bracket | 846834 | 1 | |
| 66 | Cross recessed screw | 956092 | 1 | (241793) |
| 67 | Spring washer | 949607 | 1 | |
| 68 | Hexagon screw | 955541 | 2 | |
| 69 | Spring washer | 942336 | 2 | |
| 70 | Hose | 952980 | 1 | L=60mm |
| 71 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 72 | Fan, suction type | 864613 | 1 | Alt |
| 73 | Fan | 843563 | 1 | Spec. 867221., D70B spec. 867062, 867221, 867259, 867260, 867278. TD70B spec 867065 alt. D70BK alt., D=620mm |
| 74 | Hexagon screw | 940186 | 4 | |
| 75 | Spring washer | 941907 | 4 | |
| 76 | Spacer ring | 843839 | 1 | |
| 77 | Cable tie | 948211 | 1 | |
| 78 | T-pipe | 948092 | 1 | |
| 79 | Hose clamp | 994556 | 4 | |
| 80 | Rubber hose | 943366 | 1 | L=600mm late type |
| 81 | Rubber hose | 943366 | 1 | L=600mm late type |
| 82 | Expansion tank | 844062 | 1 | |
| 83 | Plug | 947660 | 1 | (836268) |
| 84 | Connecting pipe | 843247 | 1 | |
| 85 | Bracket | 843260 | 1 | |
| 86 | Clamp | 843266 | 1 | |
| 87 | Pressure cap | 844624 | 1 | |
| 88 | T-pipe | 864863 | 1 | For TWD1010G |
| 25A | Plug | 947660 | 1 | (836268) |
| 42A | Connector | 475450 | 1 |
| Item | Part Name | Part No. |
| 10 | Level relay 1622515 | 1622515 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V, TWD1630V TD100G, TD100HP-87, TID100K TD100G-85 TD100G-87 TD100GG-87 TD100GP-85 TD100HP-87 TD1010G, TWD1010G TD1030ME, TWD1030ME TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD120HP-86, TD121G, TID121K, TID121L-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE TD30A TD31ACE TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD61A, TD61AW, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TID61AG, TD71A, TD71AW, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TID71A, TID71AG, TID71AGP, TID71AP, TID71APB, TID61AGP TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TID100K TID100K-87 TID100KG-87 TID100KP TID100KP-87 TID162AG, TID162AGP, TID162AP, TID162APB TWD1230ME TWD1231VE TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD610P, TWD610PB, TWD710P, TWD710PB, TAD730P |
| Application | Electrical Materials Electrical Materials: A Electrical Materials: B Electrical System and Instruments Extra Electrical Equipment Radiator and Fan, 35°C Radiator and Installation Components 35CG: A Radiator and Installation Components 35CG: B Radiator and Installation Components 35CG: C Radiator and Installation Components 35CG: TD100HPB87 |
