Lock nut 848711

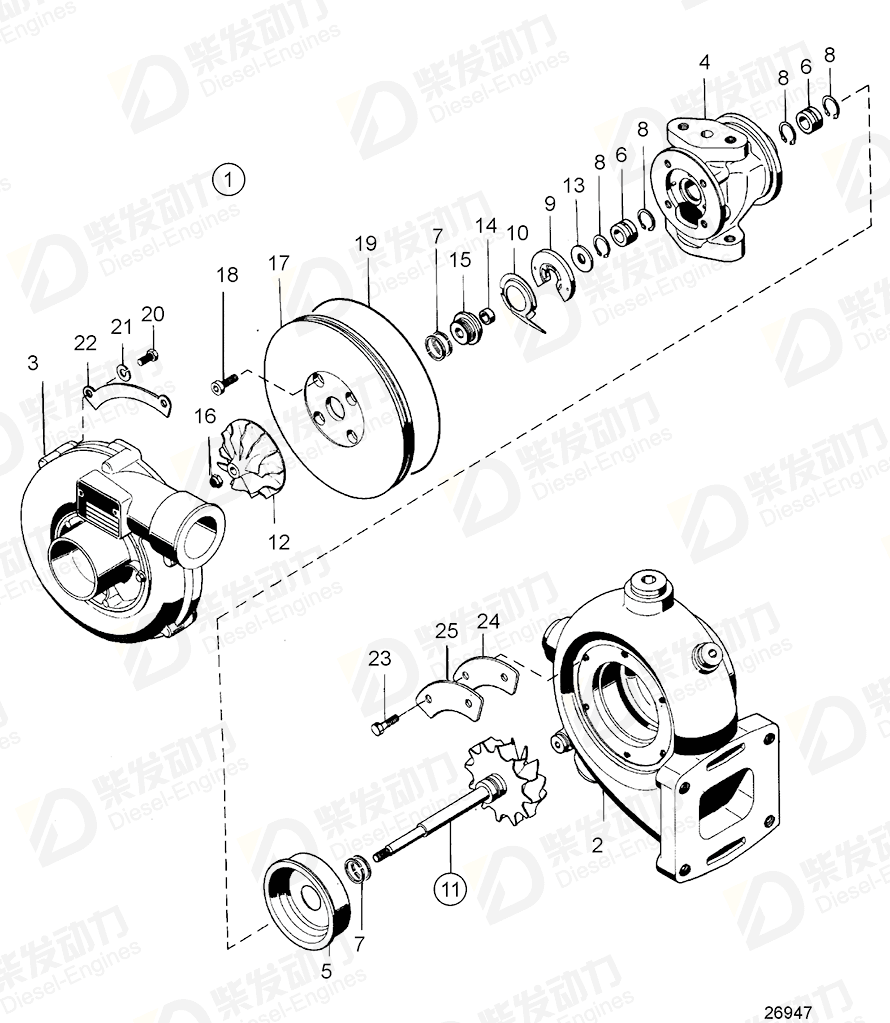

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 846807 | 1 | |
| 1 | Turbocharger, exch | 3802021 | 1 | |
| 4 | Bearing housing | 845040 | 1 | |
| 5 | Shield | 838563 | 1 | |
| 6 | Bushing | 838562 | 2 | |
| 7 | Piston ring | 845045 | 4 | |
| 8 | Lock ring | 845042 | 4 | |
| 9 | Axial bearing | 838565 | 1 | |
| 10 | Oil deflector | 845047 | 1 | |
| 11 | Rotor | 847649 | 1 | |
| 12 | Wheel | 847644 | 1 | |
| 13 | Thrust ring | 844000 | 1 | |
| 14 | Sleeve | 845050 | 1 | |
| 15 | Gasket | 845049 | 1 | |
| 16 | Lock nut | 848711 | 1 | (844003) |
| 18 | Screw | 845829 | 4 | |
| 19 | O-ring | 847643 | 1 | |
| 20 | Screw | 838570 | 8 | (844004) |
| 21 | Spring washer | 844005 | 8 | |
| 22 | Segment | 847646 | 4 | |
| 23 | Hexagon screw | 955269 | 6 | For 1570594 |
| 24 | Clamping segment | 845167 | 3 | (845116) |
| 25 | Segment | 845035 | 3 | |
| 25 | Repair kit | 847650 | 1 | See group 10A |
| Item | Part Name | Part No. |
| 16 | Lock nut 848711 | 848711 |
| Details | |
| Engine model | TD100CHC TD70CHC TD70CRC |
| Application | Repair Kits: A Repair Kits: C Repair Kits: D Turbo Turbo: 843663 Turbo: 845677 |
| Specification | |
| Descriptions | (844003) |
