Lock nut 946034

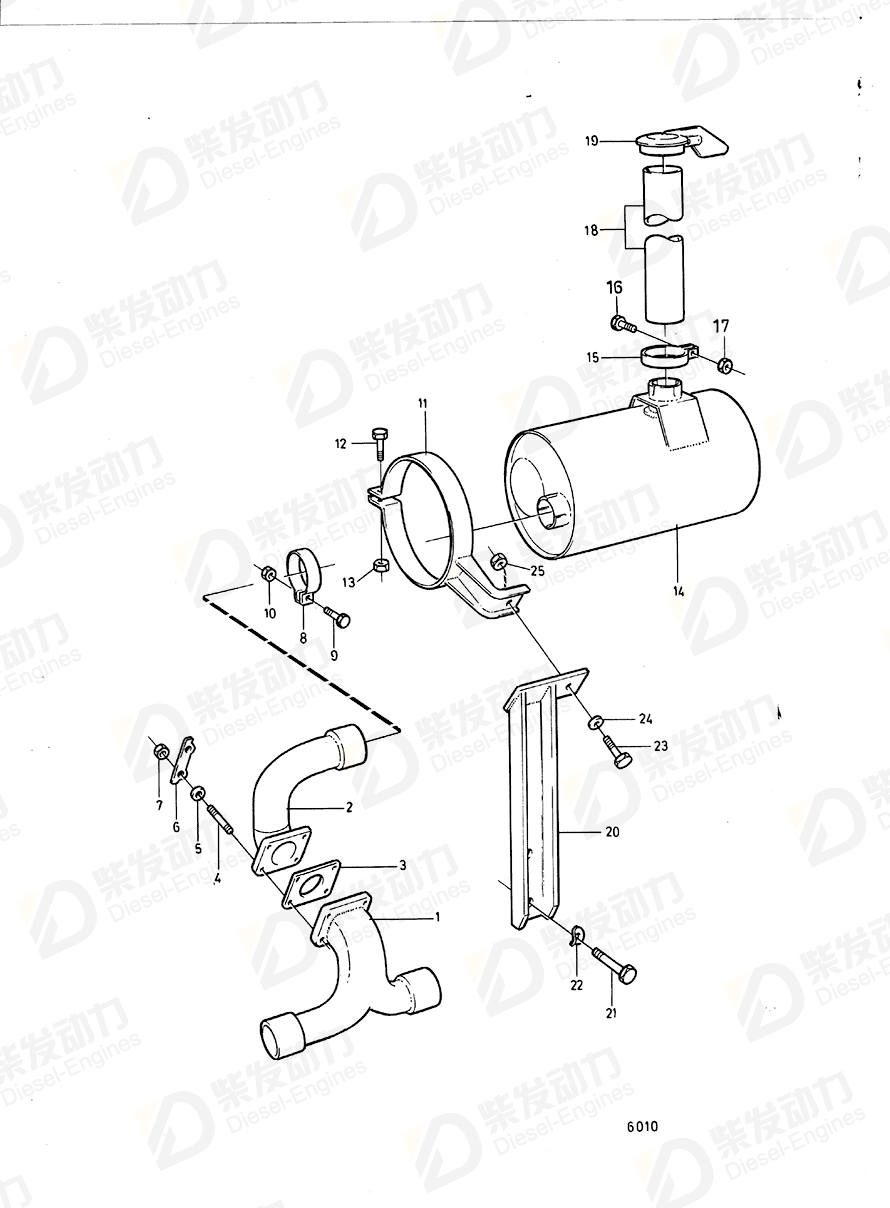

| No. | Part Name | Part Number | Qty | Description |
| 2 | Exhaust pipe | 846259 | 1 | |
| 3 | Gasket | 820785 | 1 | |
| 4 | Stud | 953261 | 4 | |
| 5 | Washer | 940097 | 4 | |
| 6 | Tab washer | 120307 | 2 | |
| 7 | Nut | 943152 | 4 | |
| 8 | Clamp | 191296 | 1 | Suction type |
| 9 | Hexagon screw | 955319 | 1 | |
| 10 | Lock nut | 945654 | 1 | |
| 11 | Bracket | 1575983 | 1 | |
| 12 | Hexagon screw | 955319 | 1 | |
| 13 | Lock nut | 945654 | 1 | |
| 14 | Silencer | 476584 | 1 | |
| 15 | Clamp | 191296 | 1 | Suction type |
| 16 | Hexagon screw | 955319 | 1 | |
| 17 | Lock nut | 945654 | 1 | |
| 18 | Tube | 846260 | 1 | |
| 19 | Rain cap | 845579 | 1 | Late type alt 3'' |
| 20 | Support | 846258 | 1 | |
| 21 | Hexagon screw | 955560 | 2 | |
| 22 | Spring washer | 940280 | 2 | |
| 23 | Hexagon screw | 955340 | 1 | |
| 24 | Washer | 955897 | 1 | |
| 25 | Lock nut | 946034 | 1 |
| Item | Part Name | Part No. |
| 25 | Lock nut 946034 | 946034 |
| Details | |
| Engine model | D100B D70B TD100A TD120GG TD120HPP TD60B TD60D-83 TD70G TD70G-83 TID120FPP TID120HPP TID121FG TID70GPP |
| Application | Silencer and Exhaust Pipe Power Pack Silencer and Exhaust Pipe Spec.867285 Std Spec.867284 Alt SILENCER AND INSTALLATION COMPONENTS Silencer and Installation Components, Power Pack Silencer and Installation Components, Power Pack: A Silencer and Installation Components, Power Pack: B SILENCER AND INSTALLATION COMPONENTS: B SILENCER AND INSTALLATION COMPONENTS: TID121FP |
