Lock nut 946420

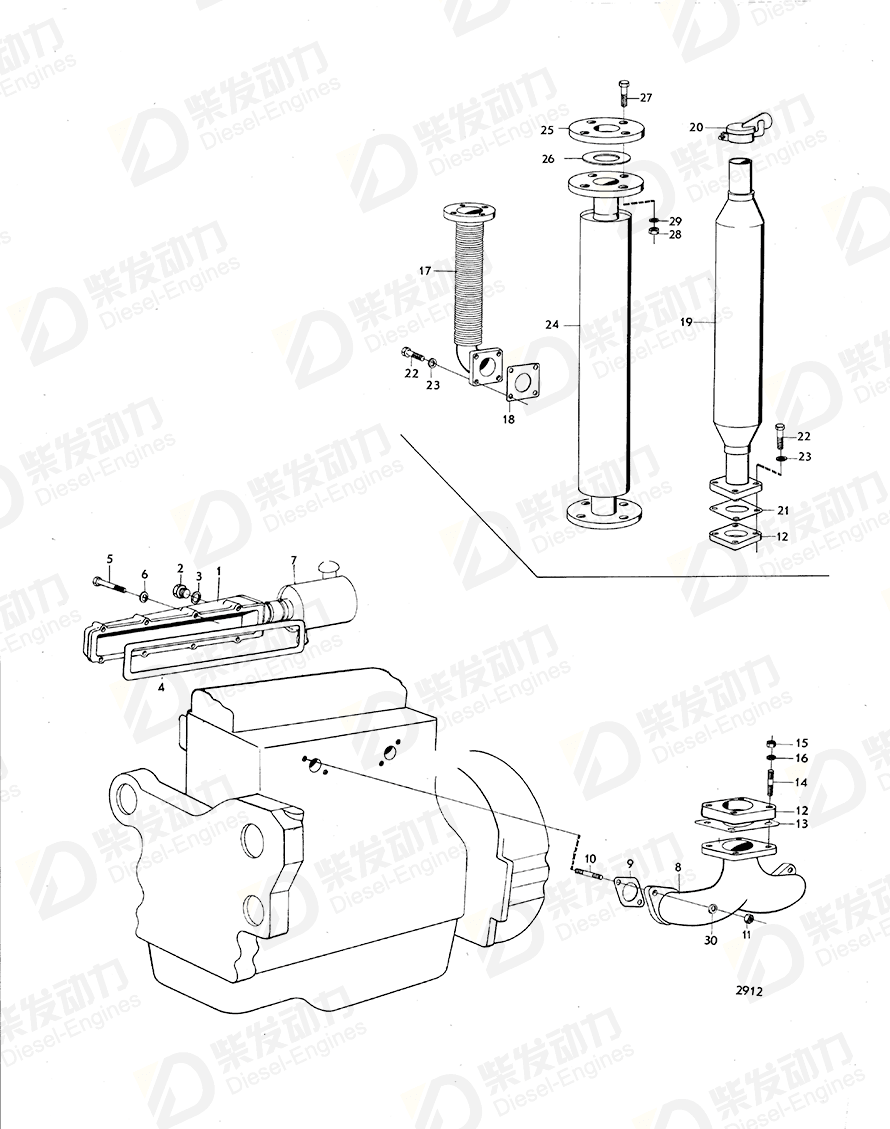

| No. | Part Name | Part Number | Qty | Description |
| 1 | Tube | 787951 | 1 | |
| 2 | Plug | 191026 | 2 | |
| 2 | Plug | 192114 | 1 | |
| 3 | Gasket | 957185 | 1 | |
| 4 | Gasket | 785445 | 1 | |
| 5 | Hexagon screw | 940161 | 8 | For engine with 40° angle of inclination, L=45mm |
| 6 | Spring washer | 941907 | 8 | |
| 8 | Exhaust pipe | 785418 | 1 | |
| 9 | Gasket | 4804248 | 2 | (787454) |
| 10 | Stud | 953488 | 4 | |
| 10 | Stud | 953490 | 4 | D42A PP SPEC. 16053, 867638. |
| 11 | Nut | 943152 | 4 | |
| 11 | Lock nut | 946420 | 4 | |
| 12 | Flange | 740652 | 1 | NO LONGER USED |
| 13 | Gasket | 4804247 | 1 | (740655) |
| 14 | Stud | 953257 | 4 | L = 35 MM |
| 15 | Hexagon nut | 955827 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 16 | Spring washer | 942336 | 4 | |
| 17 | Exhaust hose | 830631 | 1 | |
| 18 | Gasket | 4804247 | 1 | (740655) |
| 19 | Spark arrester | 787730 | 1 | (748226) |
| 20 | Rain cap | 786851 | 1 | (739578) |
| 21 | Gasket | 4804247 | 1 | (740655) |
| 22 | Hexagon screw | 940115 | 4 | |
| 23 | Toothed washer | 955950 | 4 | |
| 24 | Silencer | 820978 | 1 | |
| 25 | Flange | 820905 | 2 | |
| 26 | Gasket | 807578 | 2 | |
| 27 | Hexagon screw | 955367 | 8 | |
| 28 | Hexagon nut | 955785 | 8 | |
| 29 | Spring washer | 941912 | 8 | |
| 30 | Washer | 940097 | 4 |
| Item | Part Name | Part No. |
| 11 | Lock nut 946420 | 946420 |
| Details | |
| Engine model | D42A TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TD1030ME TD1030VE TWD1030ME TWD1031VE |
| Application | Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel Injection Pump, Fuel Filter and Shut-off Valve. Standard Fuel System with Electronic Speed Control INDUCTION-AND EXHAUST MANIFOLD |
