Lock nut 950352

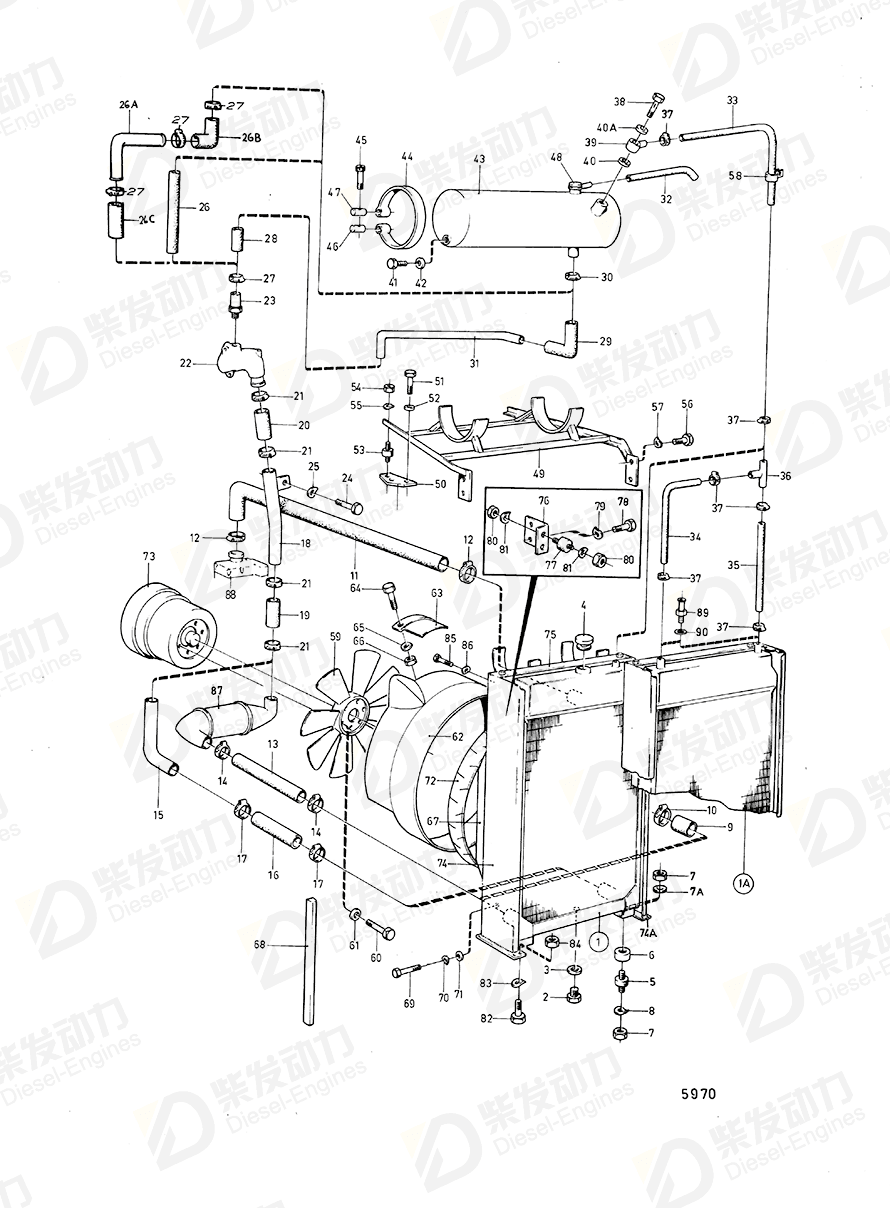

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 843989 | 1 | Classified engine |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 957178 | 1 | |
| 4 | Radiator cap insert | 323685 | 1 | |
| 5 | Rubber cushion | 833720 | 2 | |
| 6 | Sleeve | 807228 | 2 | |
| 7 | Hexagon nut | 955850 | 4 | |
| 8 | Spring washer | 940280 | 4 | |
| 9 | Rubber cap | 824474 | 1 | |
| 10 | Hose clamp | 943480 | 1 | MO-XXXXX/98707., (951797) |
| 11 | Hose | 836106 | 1 | |
| 12 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 13 | Rubber hose | 943372 | 1 | L=90mm |
| 14 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 15 | Coolant pipe | 836108 | 1 | Early type |
| 16 | Rubber hose | 943372 | 1 | L=90mm |
| 17 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 18 | Coolant pipe | 820639 | 1 | |
| 19 | Rubber hose | 943372 | 1 | L=90mm |
| 20 | Rubber hose | 943372 | 1 | L=90mm |
| 21 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 23 | Nipple | 941845 | 1 | |
| 24 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 25 | Spring washer | 942336 | 1 | |
| 26 | Rubber hose | 944386 | 1 | |
| 27 | Hose clamp | 994560 | 2 | |
| 28 | Rubber hose | 944386 | 1 | |
| 29 | Hose | 826224 | 1 | Late type |
| 30 | Hose clamp | 994560 | 4 | |
| 31 | Pipe | 836707 | 1 | Shaft and spacer ring 910396 replaces earlier production without spacer ring |
| 32 | Hose | 192618 | 1 | L=1400mm |
| 33 | Hose | 13776 | 1 | L=450mm early type |
| 37 | Hose clamp | 994556 | 2 | |
| 38 | Hollow screw | 944153 | 1 | |
| 39 | Banjo nipple | 836267 | 1 | |
| 40 | Gasket | 957178 | 1 | |
| 41 | Plug | 836268 | 1 | |
| 42 | Gasket | 957175 | 1 | |
| 43 | Expansion tank | 836199 | 1 | |
| 44 | Tensioning band | 339958 | 2 | |
| 45 | Hexagon screw | 31406 | 2 | |
| 46 | Clevis pin, threaded | 31404 | 2 | |
| 47 | Pin | 31405 | 2 | |
| 48 | Cover | 334687 | 1 | |
| 49 | Bracket | 836129 | 1 | Shaft and spacer ring 910396 replaces earlier production without spacer ring |
| 50 | Bracket | 836216 | 2 | Shaft and spacer ring 910396 replaces earlier production without spacer ring |
| 51 | Hexagon screw | 959798 | 4 | |
| 52 | Washer | 940097 | 3 | |
| 53 | Rubber cushion | 803762 | 2 | Shaft and spacer ring 910396 replaces earlier production without spacer ring |
| 54 | Hexagon nut | 955850 | 4 | |
| 55 | Spring washer | 940280 | 4 | |
| 56 | Hexagon screw | 955294 | 4 | |
| 57 | Spring washer | 941907 | 4 | |
| 58 | Clamp | 18387 | 2 | |
| 59 | Fan, suction type | 836039 | 1 | D=720mm |
| 59 | Fan, pusher type | 836045 | 1 | Shaft and spacer ring 910396 replaces earlier production without spacer ring, D=720mm |
| 59 | Fan | 843517 | 1 | Åkerman spec. 867454., D70B spec. 867055, 867056, 867057 MOXXXXX/6622-. D70B spec. 867061, 867063, 867277. TD70B spec. 867065. D70B spec. 867059, 867260 alt. D70BK alt., D=620mm |
| 59 | Fan | 843563 | 1 | Spec. 867221., D70B spec. 867062, 867221, 867259, 867260, 867278. TD70B spec 867065 alt. D70BK alt., D=620mm |
| 60 | Hexagon screw | 940186 | 4 | |
| 60 | Hexagon screw | 955535 | 6 | |
| 61 | Washer | 940097 | 6 | |
| 62 | Fan guard | 824349 | 1 | Alt. TD100A 9766, TD100AK 9879, D100BK 867019 |
| 62 | Fan protector | 837253 | 1 | D42A PP spec. 16053, 867638 |
| 63 | Belt protector | 836007 | 1 | Alt. TD100A 9766, TD100AK 9879, D100BK 867019 |
| 63 | Engagement protectio | 836022 | 1 | Spec. 867055 |
| 64 | Hexagon screw | 940100 | 2 | |
| 64 | Hexagon screw | 955513 | 2 | |
| 65 | Washer | 955893 | 2 | |
| 66 | Lock nut | 950352 | 2 | |
| 67 | Fan shroud | 824477 | 1 | Åkerman |
| 67 | Fan shroud | 836282 | 1 | MO-XXXXX/98707 |
| 67 | Fan shroud | 837228 | 1 | MOXXXXX/98708- |
| 68 | Sealing strip | 836046 | 2 | Spec. 867054, 867055, 867132, 867259, 867260, 867277 MO-XXXXX/32501. spec. 867278. |
| 69 | Hexagon screw | 955268 | 14 | |
| 69 | Hexagon screw | 955270 | 10 | |
| 70 | Spring washer | 941906 | 14 | |
| 71 | Washer | 955893 | 14 | |
| 72 | Sealing cloth | 823683 | 1 | For engine with 2 pc oil cooler 836821., Spec. 867054, 867055, 867132, 867259, 867260, 867277 MO-XXXXX/32501. spec. 867278 |
| 72 | Sealing cloth | 836055 | 1 | FOR SPEC VERSION 45CG |
| 74 | Bracket | 837221 | 1 | Right |
| 75 | Cross stay | 837223 | 1 | |
| 76 | Anchorage | 837387 | 2 | |
| 77 | Cushion | 1228599 | 4 | |
| 78 | Hexagon screw | 940199 | 4 | |
| 79 | Spring washer | 941907 | 4 | |
| 7A | Washer | 955898 | 2 | Late type |
| 80 | Hexagon nut | 955781 | 8 | |
| 80 | Hexagon nut | 955825 | 8 | Late type |
| 81 | Spring washer | 941906 | 8 | |
| 82 | Hexagon screw | 940134 | 8 | |
| 83 | Spring washer | 941909 | 8 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 84 | Hexagon nut | 940157 | 8 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 85 | Hexagon screw | 940114 | 6 | |
| 86 | Spring washer | 942336 | 6 | |
| 88 | Upper section | 822344 | 1 | |
| 40A | Gasket | 957176 | 1 | For governor 225-1200. |
| 74A | Bracket | 837222 | 1 | Left |
| Item | Part Name | Part No. |
| 66 | Lock nut 950352 | 950352 |
| Details | |
| Engine model | D100A D100B D120A D70B TD100A TD120A TD120ARC TD120BRC TD120GG TD121CRC TD70B TD70G-83 TID70G |
| Application | Air Compressor 15.5W31 and Installation Components Air Compressor TUFLO 700 and Installation Components: A Air Compressor TUFLO 700 and Installation Components: B Fan, Fan- and Belt Protection with Installation Components: A Fan, Fan- and Belt Protection with Installation Components: B Fan, Fan- and Belt Protection with Installation Components: C Fan, Fan-and Belt Protection with Inst.components, MO-XXXXX/33071: A Fan, Fan-and Belt Protection with Inst.components, MO-XXXXX/33071: B Fan-and Belt Protection with Inst- Allation Components, Generator Radiator and Installation 35 CG , 45 CG: 35°C Radiator and Installation 35 CG , 45 CG: 35CG Radiator and Installation 35 CG , 45 CG: 45°C Radiator and Installation 35 CG , 45 CG: 45CG Radiator and Installation Components Radiator and Installation Components: A Radiator and Installation Components: B |
| Specification | |
| Descriptions | Spec. 867055., Late type Spec. 867132 alt, D70BK alt., D70B spec. 867055, 867056, 867057 MOXXXXX/6622-. D70B spec. 867259, 867260. TD7B spec. 867065. D70BK alt. |
