Lock nut 950353

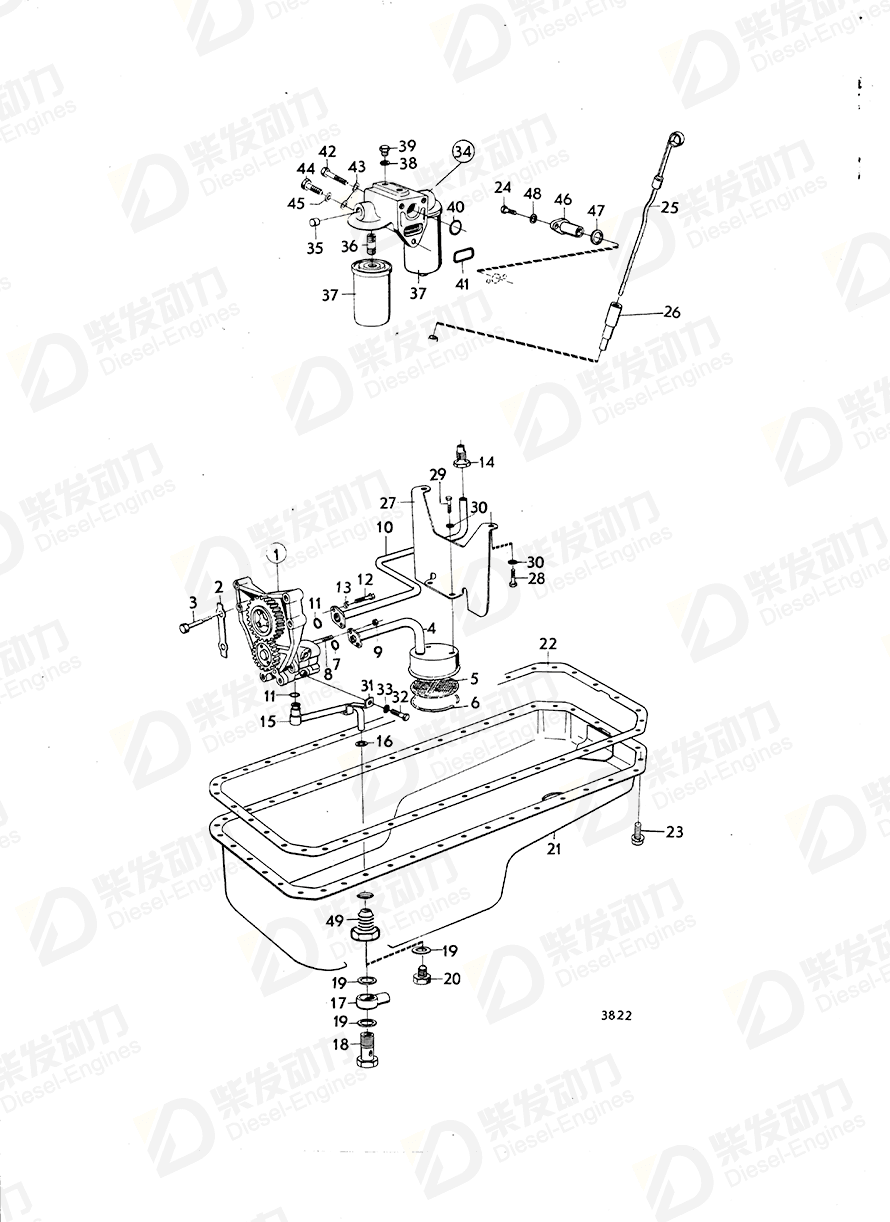

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 821120 | 1 | |
| 2 | Tab washer | 190529 | 2 | |
| 3 | Hexagon screw | 955538 | 4 | |
| 4 | Suction pipe | 823795 | 1 | |
| 5 | Wire gauze | 414621 | 1 | |
| 6 | Retaining ring | 118125 | 1 | |
| 7 | O-ring | 948229 | 1 | Early type |
| 8 | Stud | 942596 | 2 | |
| 9 | Lock nut | 950353 | 2 | |
| 10 | Delivery pipe | 823794 | 1 | |
| 11 | O-ring | 947061 | 2 | |
| 12 | Hexagon screw | 192548 | 2 | |
| 13 | Spring washer | 941907 | 2 | |
| 14 | Fitting | 466907 | 1 | |
| 16 | O-ring | 947060 | 1 | |
| 17 | Banjo nipple | 191928 | 1 | |
| 18 | Hollow screw | 191929 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 19 | Gasket | 957185 | 2 | |
| 20 | Magnetic plug | 192538 | 1 | |
| 21 | Sump | 823791 | 1 | |
| 22 | Gasket | 422025 | 1 | |
| 23 | Flange screw | 942402 | 41 | |
| 24 | Hexagon screw | 940100 | 2 | |
| 25 | Oil dipstick | 422432 | 1 | |
| 26 | Extension pipe | 412845 | 1 | |
| 27 | Baffle plate | 467394 | 1 | |
| 28 | Hexagon screw | 955523 | 2 | |
| 29 | Hexagon screw | 940113 | 2 | |
| 30 | Spring washer | 941907 | 4 | |
| 31 | Bracket | 821282 | 1 | |
| 32 | Hexagon screw | 955523 | 1 | |
| 33 | Spring washer | 941907 | 1 | |
| 34 | Oil filter housing | 423064 | 1 | |
| 36 | Nipple | 423067 | 2 | |
| 37 | Oil filter | 4785974 | 2 | |
| 38 | Gasket | 957185 | 2 | |
| 39 | Plug | 192114 | 2 | |
| 40 | O-ring | 949657 | 1 | (925060) |
| 41 | O-ring | 925069 | 1 | |
| 42 | Hexagon screw | 955543 | 2 | |
| 43 | Washer | 940097 | 2 | |
| 44 | Hexagon screw | 955535 | 1 | |
| 45 | Spring washer | 942336 | 1 | |
| 46 | Reduction valve | 421123 | 1 | |
| 47 | O-ring | 949721 | 1 | (925062) |
| 48 | Spring washer | 941906 | 2 | |
| 49 | Fitting | 466907 | 1 |
| Item | Part Name | Part No. |
| 9 | Lock nut 950353 | 950353 |
| Details | |
| Engine model | D100A D100A, D100B D100B D100B, TD100A D120A D120A, TD120A D70B D70B, TD70B TD100A TD100G, TD100G-85, TID100K TD100G-87 TD100G-87, TID100K-87 TD120A TD120GG TD70B |
| Application | Alternator and Installation Components, Classed Engine: A Alternator and Installation Components, Classed Engine: B Alternator and Installation Components, MO-XXXXX/30307: A Alternator and Installation Components, MO-XXXXX/30307: B Alternator and Installation Components, MO-XXXXX/30307: C Alternator and Installation Components, MOXXXXX/30308- Alternator and Installation Components, MOXXXXX/33072- Alternator and Installation Components, Spec 867108, 867153 Alternator and Installation Components, Spec.867117 Alt Alternator and Relay with Installation Components: A Alternator and Relay with Installation Components: B Electrical System and Instrument: A Electrical System and Instrument: B ELECTRICAL SYSTEM AND INSTRUMENTS Electrical System and Instruments: A Electrical System and Instruments: B Extra Alternator Spec 9921, 9922, Alt Lubricating System, 1000 Hours Running Lubricating System, 1000 Hours Running, Spec.9931, 9934, 867023 Lubricating System, 40° Inclination Lubricating System, Angle of Inclination 40° Lubricating System, Spec.9755, 9762, 9803, 9946, 867017, 867024,867045 Lubricating System: A Lubricating System: B |
| Specification | |
| Descriptions | D70B spec.867057,867058, (MOXXXXX/15607-,see lubricating system standard model),867059,867063,867221,867283.TD70B spec.867065 alt. D70B spec.867060. TD70B spec.867066. D70B spec.867055 alt. |
Related Products
Tags: Lock nut, Volvo Penta, 950353
