Lock nut 950385

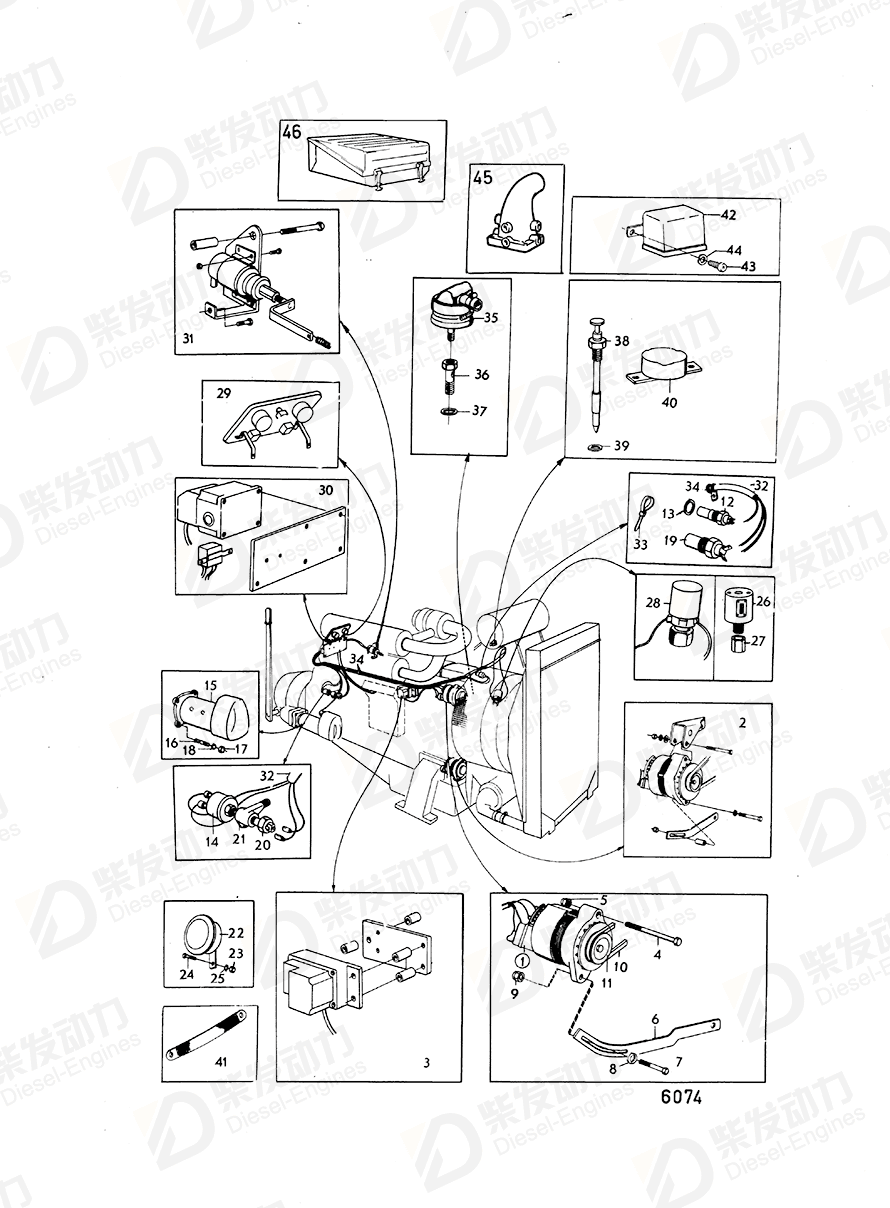

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 827349 | 1 | 28V 25A,later prod |
| 4 | Spring washer | 941909 | 1 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 4 | Hexagon screw | 955699 | 1 | |
| 4 | Hexagon screw | 955701 | 1 | L=89mm, early type |
| 5 | Lock nut | 950385 | 1 | Early type |
| 6 | Tensioner | 823107 | 1 | |
| 7 | Hexagon screw | 940186 | 1 | |
| 8 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 9 | Lock nut | 950353 | 1 | |
| 10 | V-belt | 947951 | 1 | |
| 11 | Pulley | 843248 | 1 | |
| 12 | Sensor | 827150 | 1 | AQ200D MO-11576, AQ225D MO-11736, AQ260A MO-11506, AQ290A MO-12259., Late type |
| 13 | Gasket | 11996 | 1 | |
| 14 | Sensor | 881432 | 1 | |
| 15 | Starter motor | 870998 | 1 | 24V repl by 847308 |
| 16 | Stud | 953486 | 3 | |
| 17 | Hexagon nut | 955827 | 3 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 18 | Spring washer | 942336 | 3 | |
| 19 | Thermo monitor | 822858 | 1 | 93°C,later prod |
| 19 | Contact | 822859 | 1 | 86°C,alt |
| 20 | Contact | 843812 | 1 | |
| 21 | T-nipple | 942490 | 1 | |
| 22 | Horn | 850420 | 1 | |
| 23 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 24 | Hexagon screw | 955535 | 1 | |
| 25 | Spring washer | 942336 | 1 | |
| 26 | Hour counter | 820554 | 1 | Mechanical |
| 26 | Hour counter | 820555 | 1 | Mechanical |
| 26 | Hour counter | 820556 | 1 | Mechanical |
| 27 | Hexagon nut | 325842 | 1 | |
| 28 | Tachometer sensor | 1507899 | 1 | |
| 32 | Cable block | 836197 | 1 | For MS3B reverse gear |
| 33 | Cable tie | 827353 | 1 | |
| 34 | Clamp | 942400 | 1 | |
| 35 | Pressure monitor | 823416 | 1 | |
| 36 | Hollow screw | 823417 | 1 | |
| 37 | Gasket | 957178 | 2 | |
| 38 | Level indicator | 352390 | 1 | |
| 39 | Gasket | 11994 | 1 | |
| 40 | Level relay | 1501203 | 1 | |
| 41 | Chassis ground cable | 11411 | 1 | |
| 42 | Relay | 870451 | 1 | |
| 43 | Cross recessed screw | 950019 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 44 | Spring washer | 941905 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| Item | Part Name | Part No. |
| 5 | Lock nut 950385 | 950385 |
| Details | |
| Engine model | D120A TD120A |
| Application | Electrical System and Instruments: A Electrical System and Instruments: B |
| Specification | |
| Descriptions | Early type |
