Lock nut 971091

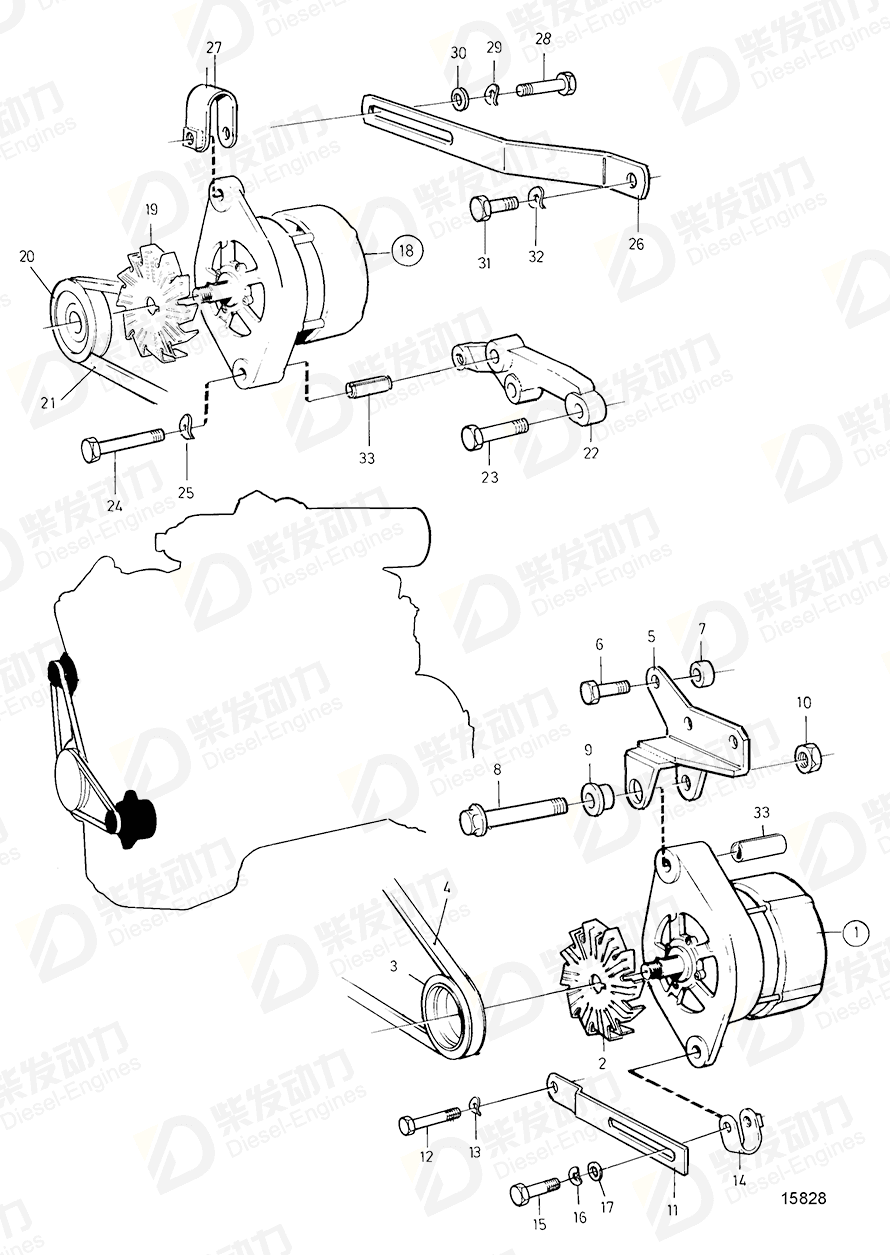

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 872021 | 1 | For 24V electric system., 28V 60A, repl by 873757 |
| 3 | Pulley | 822573 | 1 | |
| 4 | V-belt | 978367 | 1 | |
| 5 | Bracket | 3825163 | 1 | |
| 6 | Hexagon screw | 955537 | 3 | |
| 7 | Spacer sleeve | 823575 | 3 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 8 | Flange screw | 966367 | 1 | M14X100 |
| 9 | Spacer sleeve | 1675685 | 1 | |
| 10 | Lock nut | 971091 | 1 | |
| 11 | Tensioner | 849007 | 1 | Spec 867925 |
| 12 | Hexagon screw | 955541 | 1 | |
| 13 | Spring washer | 942336 | 1 | |
| 14 | Tensioning loop | 466734 | 1 | |
| 15 | Hexagon screw | 955299 | 1 | |
| 16 | Spring washer | 941907 | 1 | |
| 17 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 18 | Alternator | 872021 | 1 | For 24V electric system., 28V 60A, repl by 873757 |
| 20 | Pulley | 820459 | 1 | Replaced by 1pc 841768. |
| 21 | V-belt | 966927 | 1 | L=1338mm spec 867925 |
| 22 | Bracket | 843037 | 1 | |
| 23 | Hexagon screw | 955540 | 2 | MOXXXXX/105195- |
| 24 | Hexagon screw | 955699 | 1 | |
| 25 | Spring washer | 941909 | 1 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 26 | Tensioner | 843695 | 1 | |
| 27 | Tensioning loop | 466734 | 1 | |
| 28 | Hexagon screw | 955299 | 1 | |
| 29 | Spring washer | 941907 | 1 | |
| 30 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 31 | Hexagon screw | 940162 | 1 | MO-XXXXX/105194 |
| 32 | Spring washer | 942336 | 1 | |
| 33 | Spring pin | 1610144 | 2 |
| Item | Part Name | Part No. |
| 10 | Lock nut 971091 | 971091 |
| Details | |
| Engine model | TD100G-87 |
| Application | Alternator, Low-Left, SNXXXXXXXXXX/268617- Alternator, Twin, Low L - High R Alternator, Twin, Low L-High R, SNXXXXXXXXXX/268617- Alternator, Twin, Low L/R |
