Lock ring 422360

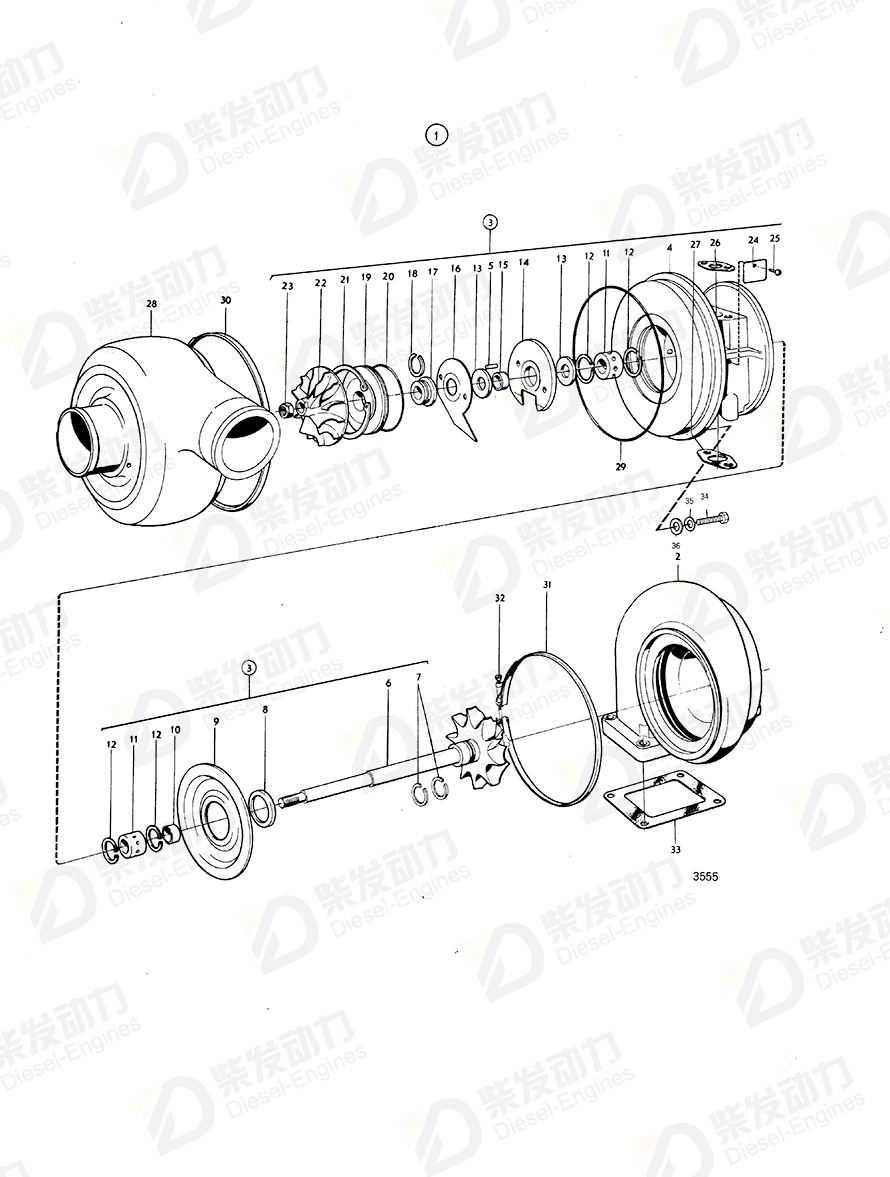

| No. | Part Name | Part Number | Qty | Description |
| 3 | Rotor | 836136 | 1 | |
| 6 | Turbine rotor | 422659 | 1 | |
| 8 | Lock ring | 422360 | 1 | |
| 12 | Lock ring | 417727 | 4 | |
| 13 | Thrust ring | 467026 | 2 | |
| 15 | Spacer sleeve | 422660 | 1 | |
| 16 | Splash plate | 422662 | 1 | |
| 17 | Ring retainer | 422661 | 1 | |
| 19 | Cover | 420466 | 1 | |
| 21 | Lock ring | 420467 | 1 | |
| 22 | Compressor wheel | 423521 | 1 | |
| 23 | Nut | 1518784 | 1 | (422669) |
| 26 | Gasket | 417378 | 1 | |
| 27 | Gasket | 417381 | 1 | |
| 29 | Rubber ring | 422668 | 1 | |
| 30 | Clamp | 422666 | 1 | |
| 31 | Clamp | 422667 | 1 | |
| 32 | Nut | 420473 | 1 | |
| 33 | Gasket | 417382 | 1 | |
| 36 | Repair kit | 273179 | 1 |
| Item | Part Name | Part No. |
| 8 | Lock ring 422360 | 422360 |
| Details | |
| Engine model | D100A TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100A TD120A TD120BHC TD120BRC TD120C TD120GG TD120HP-86 TD121CHC TD121CRC TD121G TD121G-87 TD121GG, TD121GGP TD121GG-86 TID120FG TID121FG TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 |
| Application | REPAIR KIT: B Repair Kits Repair Kits, Repair Kits,: B Repair Kits: A Repair Kits: B Repair Kits: C Repair Kits: D Turbo Turbo: 422582 Turbo: 467369 TURBO: 470109 TURBO: 470779 Turbo: 824383 Turbo: 837455 Turbo: 842067 Turbo: 842427 TURBO: 844450 Turbo: 844451 Turbo: 844452 Turbo: 844549 Turbo: 845117 Turbo: 845713 Turbo: 847827 Turbo: 848427 Turbocharger, Components |
