Lock washer 11030747

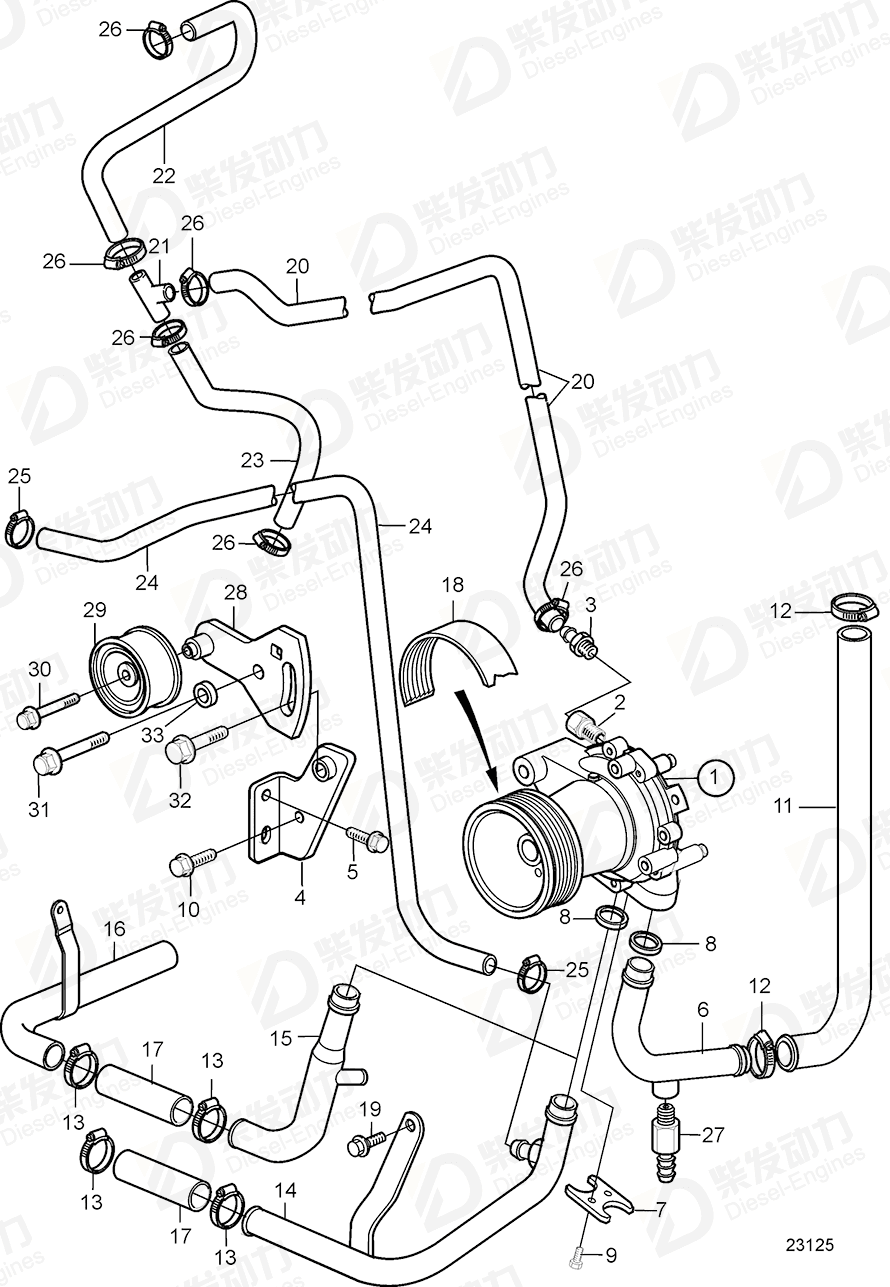

| No. | Part Name | Part Number | Qty | Description |
| 1 | Water pump | 3830046 | 1 | |
| 2 | Nipple | 862109 | 1 | |
| 3 | Nipple | 942722 | 1 | |
| 4 | Bracket | 3835375 | 1 | |
| 5 | Flange screw | 968436 | 2 | |
| 6 | Coolant pipe | 3835916 | 1 | |
| 7 | Lock washer | 11030747 | 1 | |
| 8 | Sealing ring | 11030751 | 2 | |
| 9 | Flange screw | 946934 | 2 | |
| 10 | Flange screw | 965194 | 1 | |
| 11 | Rubber hose | 944386 | 1 | |
| 12 | Hose clamp | 994560 | 2 | |
| 13 | Hose clamp | 994561 | 1 | |
| 14 | Coolant pipe, radiator | 3835378 | 1 | Replaced by 1 pc pipe 3837335, 1 pc pipe 3837337, hose 952973 (100mm) and 2 pcs hose clamp 943476. |
| 15 | Coolant pipe | 3837337 | 1 | |
| 16 | Coolant pipe | 3837335 | 1 | |
| 17 | Hose | 952973 | 1 | L = 110 MM |
| 18 | V-ribbed belt | 979057 | 1 | |
| 19 | Flange screw | 946440 | 1 | |
| 20 | Rubber hose | 943367 | 1 | L=1700mm |
| 21 | Connector | 419446 | 1 | Spec. 867131. |
| 22 | Rubber hose | 943367 | 1 | L=1700mm |
| 23 | Rubber hose | 943367 | 1 | L=1700mm |
| 24 | Hose | 952969 | 1 | (943368) L=600mm |
| 25 | Hose clamp | 943472 | 2 | |
| 26 | Hose clamp | 994556 | 6 | |
| 27 | Shut-off cock | 949918 | 1 | (82745) |
| 28 | Belt tensioner | 3843730 | 1 | |
| 29 | Idler pulley | 3827501 | 1 | Replaced by 20747516 |
| 31 | Flange screw | 979934 | 1 | |
| 32 | Flange screw | 965196 | 1 | |
| 33 | Spacer tube | 3843732 | 1 |
| Item | Part Name | Part No. |
| 7 | Lock washer 11030747 | 11030747 |
| Details | |
| Engine model | TAD1631G, TAD1631GE TD164KAE TWD1240VE TWD1643GE, TWD1652GE, TWD1653GE TWD1644GE, TWD1645GE TWD1663GE TWD1672GE, TWD1673GE |
| Application | Circulation pump for Aftercooler External Cooling System, Water Pump Water Pump and Thermostat for Dual Cooling Circuit Water Pump and Thermostat for Dual Cooling Circuit. SN2016080036- Water Pump for Aftercooler, High Mounting Water Pump for Aftercooler, Low Mounting |
