Lock washer 1543464

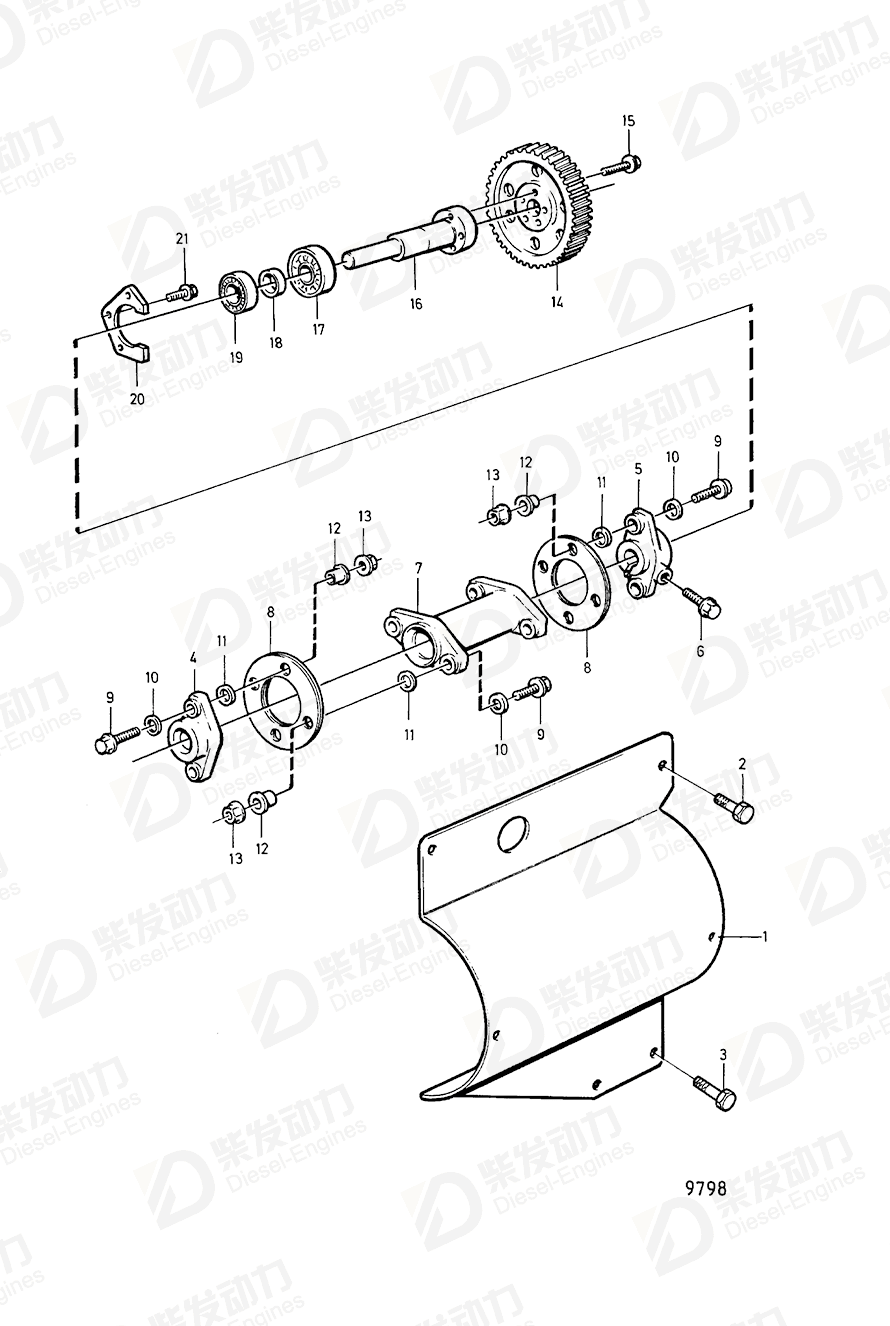

| No. | Part Name | Part Number | Qty | Description |
| 1 | Protecting plate | 849284 | 1 | TWD1630P |
| 2 | Flange screw | 946470 | 2 | |
| 3 | Flange screw | 946440 | 2 | |
| 4 | Companion flange | 1543975 | 1 | |
| 5 | Companion flange | 1547352 | 1 | |
| 6 | Flange screw | 471529 | 1 | |
| 7 | Spacer | 1543804 | 1 | |
| 8 | Companion disc | 479458 | 6 | |
| 9 | Flange screw | 965185 | 8 | |
| 10 | Washer | 976945 | 8 | |
| 11 | Washer | 479399 | 8 | |
| 12 | Sleeve | 478897 | 8 | |
| 13 | Flange nut | 971095 | 8 | Alt |
| 14 | Gear | 1543447 | 1 | |
| 15 | Flange screw | 946752 | 5 | |
| 16 | Shaft | 1543551 | 1 | |
| 17 | Ball bearing | 184708 | 1 | |
| 18 | Stop ring | 1546132 | 1 | |
| 19 | Ball bearing | 11014 | 1 | |
| 20 | Lock washer | 1543464 | 1 | |
| 21 | Flange screw | 945444 | 3 |
| Item | Part Name | Part No. |
| 20 | Lock washer 1543464 | 1543464 |
| Details | |
| Engine model | TAD1630P, TWD1630P TAD1630V, TWD1630V TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G TWD1630G, TAD1630G, TAD1630GE |
| Application | Coupling for Fuel Injection Pump with Cover |
Related Products
Tags: Lock washer, Volvo Penta, 1543464
