Lock washer 421415

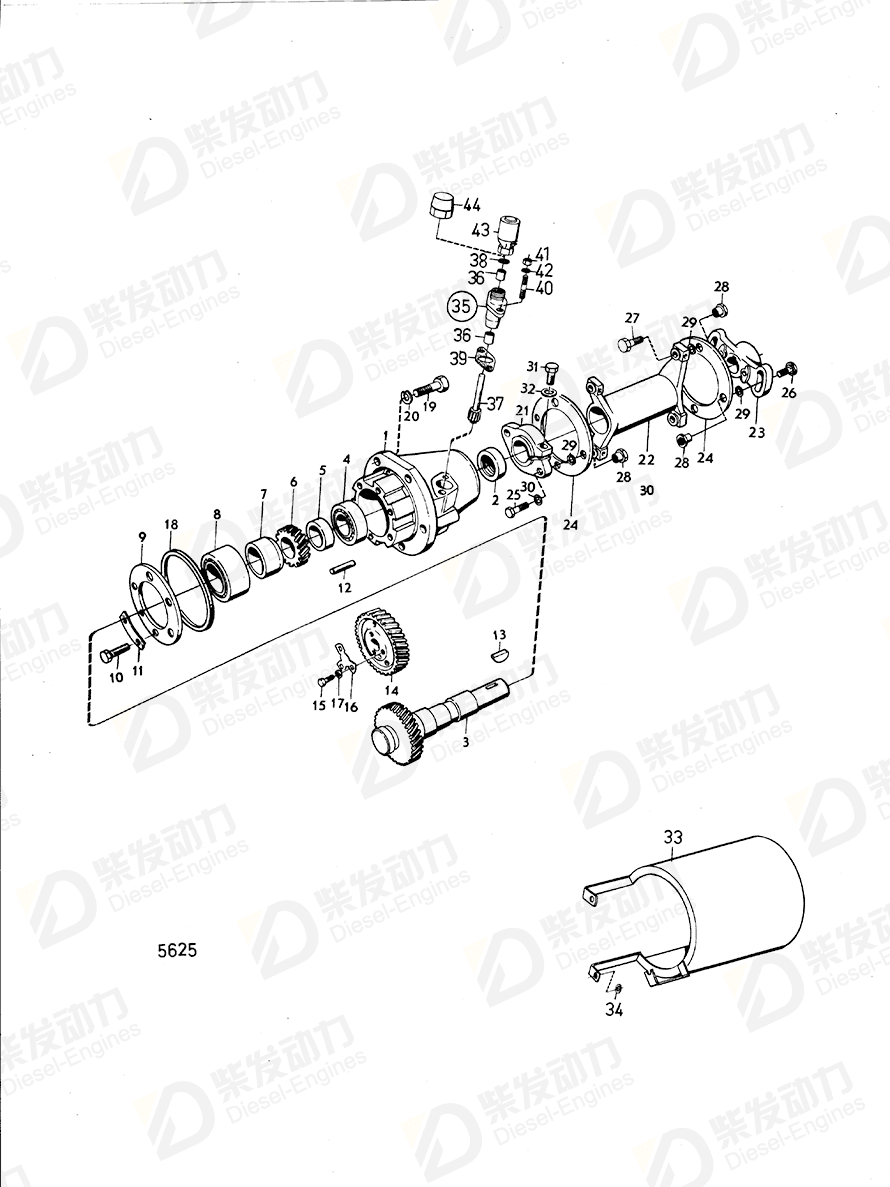

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bearing housing | 421074 | 1 | |
| 2 | Sealing ring | 941580 | 1 | |
| 3 | Shaft | 422073 | 1 | |
| 4 | Ball bearing | 11013 | 1 | |
| 6 | Stop ring | 421088 | 1 | Spec. 867578, 867590. |
| 7 | Stop ring | 421083 | 1 | Spec. 867578, 867590. |
| 8 | Ball bearing | 181577 | 1 | |
| 9 | Washer | 423074 | 1 | |
| 10 | Hexagon screw | 940100 | 6 | |
| 11 | Lock washer | 421415 | 3 | |
| 12 | Pin | 950586 | 1 | |
| 13 | Woodruff key | 422329 | 1 | |
| 14 | Gear | 423079 | 1 | |
| 15 | Hexagon screw | 102056 | 3 | |
| 16 | Lock washer | 467052 | 1 | |
| 17 | Washer | 467055 | 3 | |
| 18 | Sealing ring | 423123 | 1 | |
| 19 | Hexagon screw | 955525 | 4 | |
| 19 | Hexagon screw | 955527 | 1 | |
| 20 | Spring washer | 941907 | 5 | |
| 21 | Companion flange | 422184 | 1 | |
| 22 | Intermediate section | 422185 | 1 | |
| 23 | Companion flange | 422461 | 1 | |
| 24 | Dog clutch disc | 417512 | 6 | |
| 25 | Hexagon screw | 921642 | 2 | |
| 26 | Hexagon screw | 422469 | 2 | |
| 27 | Hexagon screw | 955676 | 4 | |
| 28 | Nut | 422187 | 8 | |
| 29 | Washer | 417514 | 8 | |
| 30 | Washer | 940097 | 2 | |
| 31 | Hexagon screw | 940160 | 1 | SAE1-2 |
| 32 | Washer | 955896 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 33 | Pump companion guard | 822875 | 1 | |
| 34 | Washer | 955894 | 1 | |
| 35 | Bearing housing | 823474 | 1 | |
| 36 | Bearing bushing | 191776 | 2 | |
| 37 | Axle shaft | 422125 | 1 | |
| 38 | Sealing ring | 943821 | 1 | |
| 39 | Gasket | 422130 | 1 | |
| 40 | Stud | 953224 | 2 | |
| 41 | Hexagon nut | 955825 | 2 | Late type |
| 42 | Spring washer | 941906 | 2 | |
| 44 | Protecting cover | 822723 | 1 |
| Item | Part Name | Part No. |
| 11 | Lock washer 421415 | 421415 |
| Details | |
| Engine model | D120A, TD120A D70B D70CHC, D70CRC, TD70CHC, TD70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100ARC TD100CHC TD100CRC TD100G-87 TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HPP TD1210G, TWD1210G, TWD1211G TD121CHC TD121CRC TD121GP-87 TD70B TD70G TD70G-83 TID120FG TID120HPP TID121FG TID70G |
| Application | Coupling for Fuel Injection Pump with Cover Coupling for Fuel Injection Pump with Cover, SN-2120187412 Coupling for Injection Pump with Cover, Earlier Production Drive Device for Fuel Injection Pump: A Drive Device for Fuel Injection Pump: B DRIVE DEVICE, FUEL INJECTION PUMP Drive Device, Fuel Injection Pump: A Drive Device, Fuel Injection Pump: B Drive Device, Fuel Injection Pump: C Drive Device, Fuel Injection Pump: D Fuel Injection Pump and Fuel Inj.Pump Coupling. Spec.867578 Fuel Injection Pump Coupling Fuel Injection Pump Coupling. Fuel Injection Pump Coupling: A Fuel Injection Pump Coupling: B Fuel Injection Pump Coupling: C |
| Specification | |
| Descriptions | SN-XXXXXXXXXX/187412 |
