Lock washer 846521

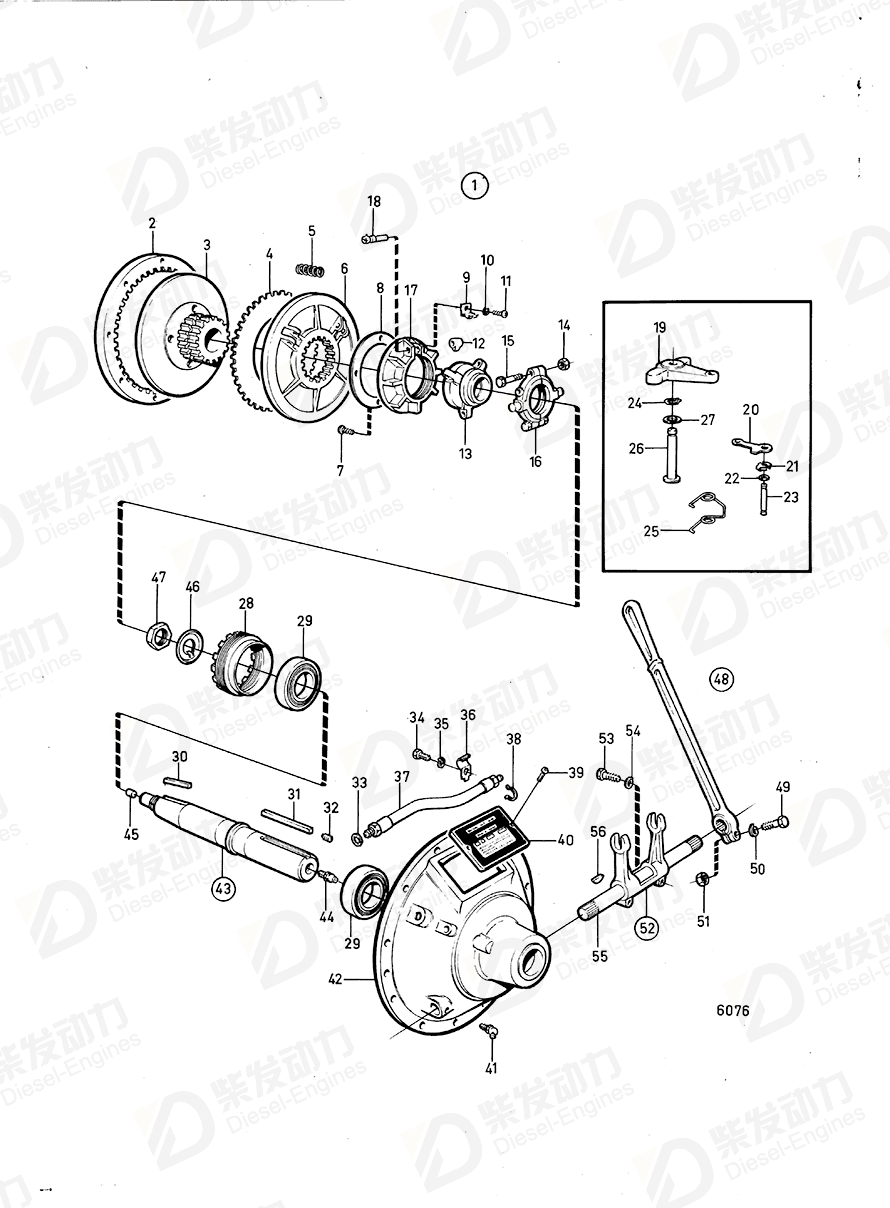

| No. | Part Name | Part Number | Qty | Description |
| 1 | Clutch | 842519 | 1 | 111/2'' - Borg & Beck THD SER.62076., Earlier production-rubber element bushing with int. thread, Alt |
| 2 | Drive ring | 846542 | 1 | |
| 3 | Drive plate | 846541 | 1 | |
| 4 | Disc | 846540 | 1 | |
| 5 | Return spring | 846539 | 4 | |
| 6 | Pressure plate | 846531 | 1 | |
| 7 | Screw | 846530 | 3 | |
| 8 | Adjusting plate | 846529 | 1 | |
| 9 | Lock spring | 846525 | 1 | |
| 10 | Spring washer | 846528 | 1 | |
| 11 | Screw | 846527 | 1 | |
| 12 | Lock | 846526 | 1 | |
| 13 | Release sleeve | 846522 | 1 | |
| 16 | Release bearing | 6603860 | 1 | |
| 17 | Adjusting ring | 846523 | 1 | |
| 18 | Lock pin | 846524 | 1 | |
| 19 | Release arm | 846532 | 4 | |
| 20 | Link | 846537 | 8 | |
| 21 | Striker plate | 846501 | 16 | |
| 22 | Washer | 846502 | 16 | |
| 23 | Pin | 846538 | 8 | |
| 24 | Striker plate | 846535 | 8 | |
| 25 | Spring | 846536 | 4 | |
| 26 | Pin | 846533 | 4 | |
| 27 | Washer | 846534 | 8 | |
| 28 | Retainer | 846519 | 1 | |
| 29 | Bearing bolt | 240779 | 2 | |
| 30 | Key | 846517 | 1 | |
| 31 | Key | 846516 | 1 | |
| 32 | Screw | 6603864 | 1 | |
| 33 | Lock washer | 846557 | 1 | |
| 34 | Screw | 6603868 | 1 | |
| 35 | Spring washer | 941907 | 1 | |
| 36 | Striker plate | 846487 | 1 | |
| 37 | Lubricating hose | 846488 | 1 | |
| 38 | Lock ring | 846493 | 1 | |
| 39 | Screw | 6603880 | 2 | |
| 40 | Cover | 846513 | 1 | |
| 41 | Lubricating nipple | 846512 | 2 | |
| 42 | Housing | 846511 | 1 | |
| 43 | Shaft | 846514 | 1 | |
| 44 | Lubricating nipple | 6603865 | 1 | |
| 45 | Screw | 846515 | 1 | |
| 46 | Lock washer | 846521 | 1 | |
| 47 | Nut | 846520 | 1 | |
| 48 | Lever | 846543 | 1 | |
| 49 | Screw | 846509 | 1 | |
| 50 | Spring washer | 6603859 | 1 | |
| 51 | Nut | 846510 | 1 | |
| 52 | Fork | 846544 | 1 | |
| 53 | Screw | 6603858 | 2 | |
| 54 | Spring washer | 6603859 | 2 | |
| 55 | Shaft | 6603896 | 1 | |
| 56 | Key | 6603893 | 2 |
| Item | Part Name | Part No. |
| 46 | Lock washer 846521 | 846521 |
| Details | |
| Engine model | TAD1030P TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE TD121G-87, TWD1210V, TWD1211V TD121GP-87, TWD1210P, TWD1211P TWD1030ME TWD1240VE, TAD1241VE, TAD1242VE |
| Application | Clutch Clutch: 842520 Clutch: 862733 Friction Clutch AP214 |
