Main bearing kit 85103708

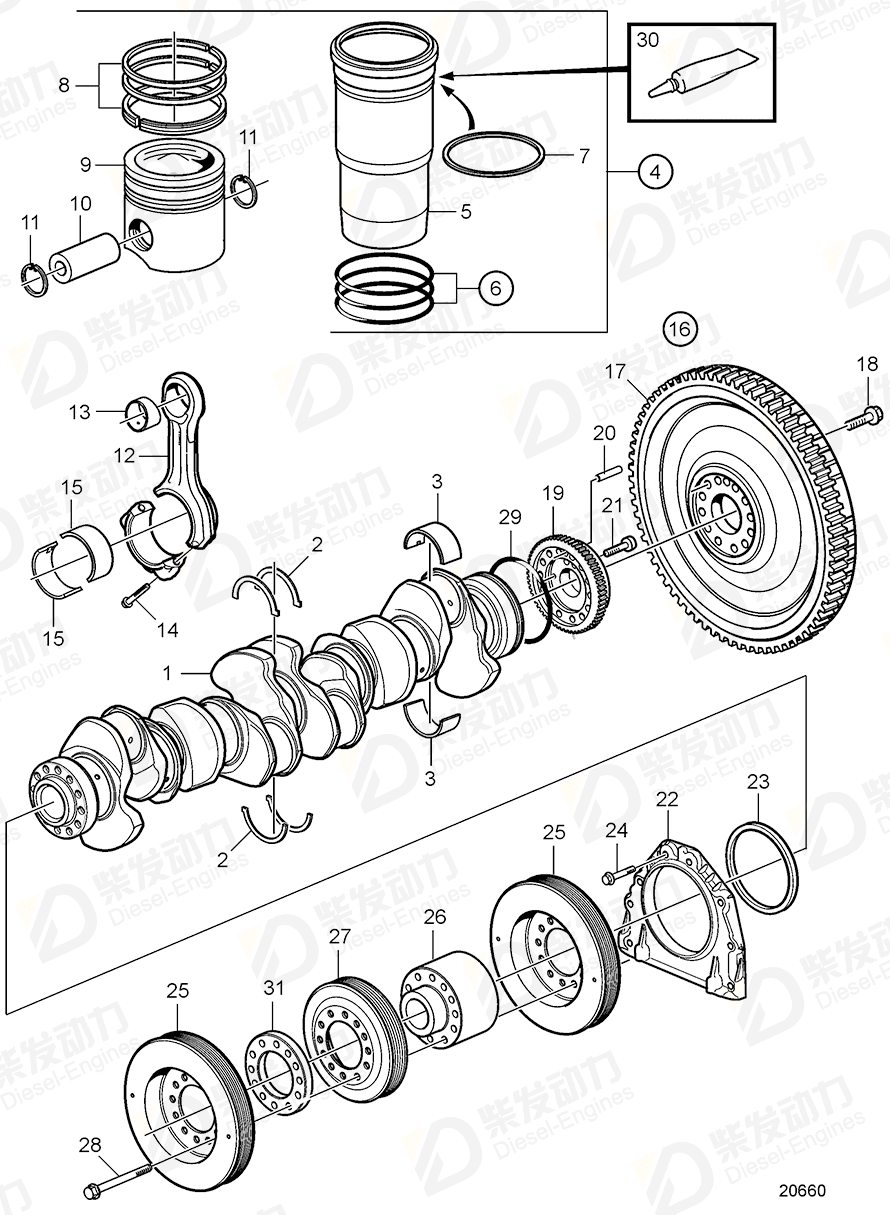

| No. | Part Name | Part Number | Qty | Description |
| 1 | Crankshaft | 8148110 | 1 | |
| 2 | Thrust washer kit | 3093651 | 1 | |
| 2 | Thrust washer kit | 3093652 | 1 | O.S=0,1mm |
| 2 | Thrust washer kit | 3093653 | 1 | O.S=0,20mm (276793) |
| 2 | Thrust washer | 3093654 | 1 | O.S=0,30mm |
| 3 | Main bearing kit | 85103707 | 7 | Std |
| 3 | Main bearing kit | 85103708 | 7 | O.S=0,25mm |
| 3 | Main bearing kit | 85103709 | 7 | O.S=0,50mm |
| 3 | Main bearing kit | 85103710 | 7 | O.S=0,75mm |
| 3 | Main bearing kit | 85103711 | 7 | O.S=1,0mm |
| 3 | Main bearing kit | 85103712 | 7 | O.D=1,25mm |
| 4 | Cylinder liner kit | 3817084 | 6 | |
| 5 | Cylinder liner | 3809305 | 6 | |
| 6 | Gasket kit | 85103699 | 1 | |
| 7 | Shim kit | 3807675 | 1 | TH=0,2mm |
| 7 | Shim kit | 3807677 | 1 | TH=0,3mm |
| 7 | Shim kit | 3807678 | 1 | TH=0,5mm |
| 8 | Oil scraper ring | 3586361 | 6 | |
| 8 | Piston ring | 3586592 | 6 | Upper |
| 8 | Piston ring | 3809035 | 6 | Lower |
| 8 | Piston ring kit | 3817086 | 6 | |
| 9 | Piston | 3587596 | 6 | |
| 10 | Gudgeon pin | 3161285 | 6 | |
| 11 | Lock ring | 3161087 | 12 | |
| 12 | Connecting rod | 8148030 | 6 | |
| 12 | Connecting rod | 20730038 | 6 | |
| 14 | Flange screw, camshaft | 8192804 | 24 | |
| 15 | Big-end bearing kit | 85103713 | 6 | Std |
| 15 | Big-end bearing kit | 85103714 | 6 | O.S=0,25mm |
| 15 | Big-end bearing kit | 85103715 | 6 | O.S=0,50mm |
| 15 | Big-end bearing kit | 85103716 | 6 | O.S=0,75mm |
| 15 | Big-end bearing kit | 85103717 | 6 | O.S=1,0mm |
| 15 | Big-end bearing kit | 85103718 | 6 | O.D=1,25mm |
| 16 | Flywheel | 3589430 | 1 | |
| 17 | Ring gear | 8193939 | 1 | |
| 18 | Flange screw | 21340868 | 12 | |
| 19 | Gear, crankshaft | 8148111 | 1 | |
| 20 | Pin | 950658 | 1 | |
| 21 | Hex. socket screw | 941761 | 2 | |
| 22 | Crankshaft seal | 20513482 | 1 | |
| 22 | Cover | 20777236 | 1 | |
| 23 | Crankshaft seal | 21779548 | 1 | SN7011385241- |
| 23 | Crankshaft seal | 85108423 | 1 | |
| 24 | Flange screw | 984736 | 8 | |
| 25 | Vibration damper | 3586367 | 2 | |
| 26 | Spacer | 888657 | 1 | |
| 27 | Pulley | 888704 | 1 | |
| 28 | Flange screw | 984824 | 12 | M8x140mm |
| 29 | O-ring | 949736 | 1 | |
| 30 | Sealant | 1161231 | 1 | 304ml |
| 30 | Sealant | 1161277 | 1 | 20g |
| 31 | Spacer | 3837447 | 1 |
| Item | Part Name | Part No. |
| 3 | Main bearing kit 85103708 | 85103708 |
| Details | |
| Engine model | TAD940GE TAD940VE, TAD941VE, TAD942VE TAD940VE, TAD941VE, TAD942VE, TAD943VE TAD941GE TAD950VE, TAD951VE, TAD952VE |
| Application | Crank Mechanism Repair Kits |
| Specification | |
| Descriptions | O.S=0,25mm |
