Marking label 860086

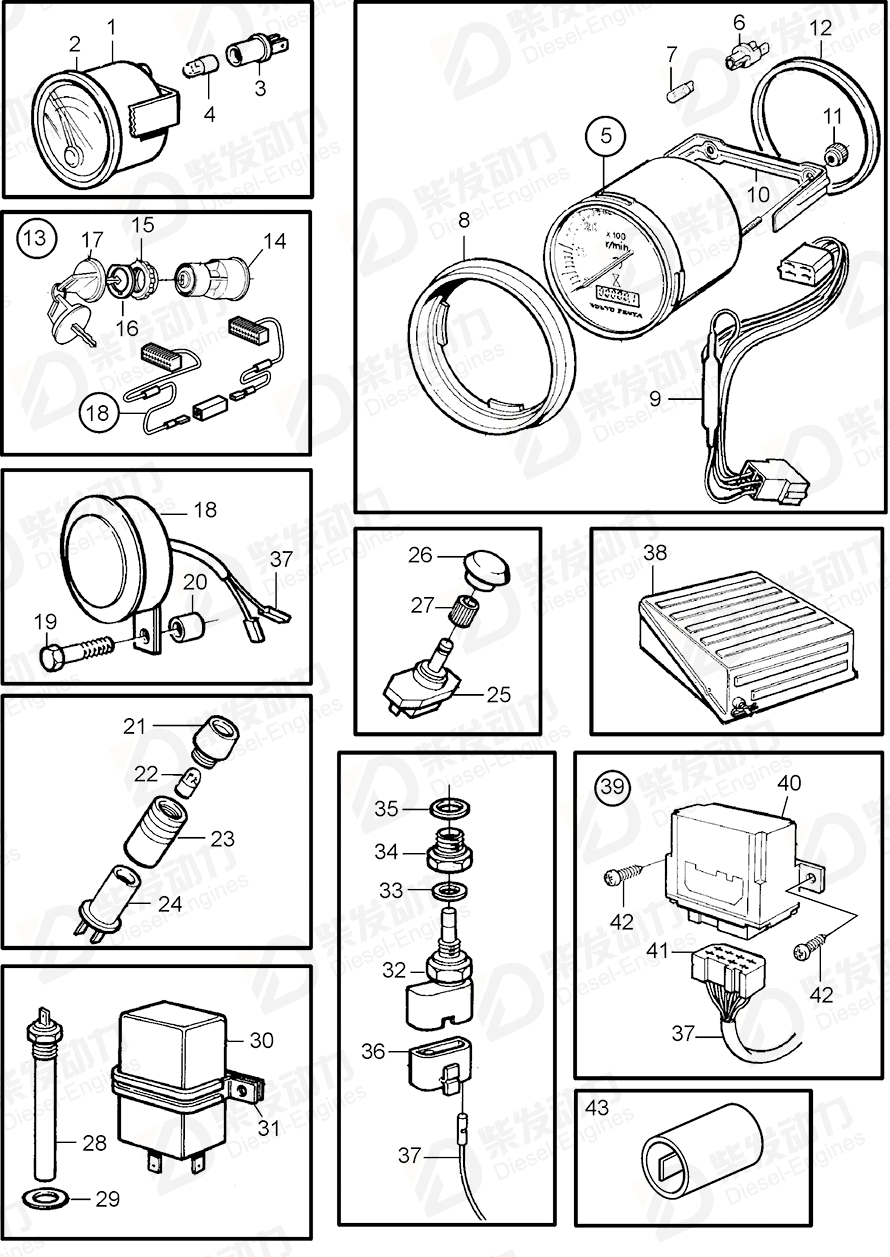

| No. | Part Name | Part Number | Qty | Description |
| 1 | Hour counter | 828615 | 1 | |
| 1 | Thermometer, temperature | 849848 | 1 | 24V |
| 1 | Oil pressure gauge, oil-pressure | 849849 | 1 | 24V |
| 1 | Tachometer, hour/tachometer | 854908 | 1 | Replaced by operating clock/tachometer 873998 and intermediate ring 873721., 24V |
| 1 | Voltmeter | 862096 | 1 | |
| 1 | Thermometer, oil | 863408 | 1 | |
| 1 | Tachometer, tachometer | 872040 | 1 | Replaced by operating clock/tachometer 873998 and intermediate ring 873721., 24V |
| 1 | Hour recorder, hour meter | 872479 | 1 | 12-24V |
| 1 | Thermometer | 873196 | 1 | |
| 1 | Oil pressure gauge | 873198 | 1 | |
| 2 | Front ring | 858643 | 1 | (828542) |
| 2 | Front ring | 858644 | 1 | For 872040., D=95mm |
| 3 | Bulb socket | 808175 | 1 | |
| 3 | Bulb socket | 863945 | 1 | For 873625,873624,873664 |
| 4 | Bulb | 19923 | 1 | |
| 4 | Bulb | 182059 | 1 | |
| 4 | Bulb | 828818 | 1 | 24V 2WBA7S |
| 4 | Bulb | 863946 | 1 | 12Vx1,2W W2x4,6d |
| 4 | Bulb | 863947 | 1 | 24V 1, 2W, W2x4,6d |
| 5 | Tachometer kit, hour/tachometer | 873998 | 1 | Used without diod cable 873695., 12V-24V |
| 6 | Bulb socket | 863945 | 1 | For 873625,873624,873664 |
| 7 | Bulb | 863947 | 1 | 24V 1, 2W, W2x4,6d |
| 8 | Ring | 873683 | 1 | |
| 9 | Diode cable, tachometer | 873695 | 1 | |
| 10 | Brace kit | 873208 | 1 | |
| 12 | Intermediate ring | 873721 | 1 | 80-72mm |
| 13 | Starter switch | 3587072 | 1 | (864277) |
| 14 | Starter switch | 888001 | 1 | |
| 15 | Plastic nut | 859955 | 1 | |
| 16 | Marking label | 860086 | 1 | |
| 17 | Key | 859953 | 2 | |
| 18 | Horn | 874050 | 1 | 24V, (872874) |
| 19 | Flange screw | 947760 | 1 | M8x40mm |
| 20 | Spacer sleeve | 807425 | 1 | L=24mm |
| 21 | Lens | 827766 | 1 | |
| 22 | Bulb | 182059 | 1 | |
| 23 | Sleeve | 819350 | 1 | |
| 24 | Bulb socket | 808175 | 1 | |
| 25 | Switch | 875819 | 1 | |
| 26 | Knob | 837726 | 1 | |
| 27 | Nut | 843002 | 1 | |
| 28 | Sensor | 1581226 | 1 | For expansion tank made of plastic., L=136mm (849371) |
| 28 | Level indicator | 1581232 | 1 | |
| 29 | Gasket | 11994 | 1 | |
| 30 | Level relay | 1622515 | 1 | |
| 31 | Clamp | 941772 | 1 | |
| 32 | Temperature sensor, oil | 862627 | 1 | Max 150°C |
| 33 | Gasket | 11998 | 1 | |
| 34 | Adapter | 863312 | 1 | |
| 35 | Gasket | 949329 | 1 | |
| 36 | Housing | 1307048 | 1 | 2-pole |
| 39 | Timer relay, starter element | 872613 | 1 | |
| 40 | Timer relay | 874100 | 1 | |
| 41 | Housing | 944076 | 1 | 6,3x8 natural |
| 43 | Diode | 20382270 | 1 |
| Item | Part Name | Part No. |
| 16 | Marking label 860086 | 860086 |
| Details | |
| Engine model | TAD1030GE, TAD1031GE, TAD1032GE TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TID162AG, TID162AGP, TID162AP, TID162APB |
| Application | Electrical Materials Instrument Panel |
