Needle bearing 240453

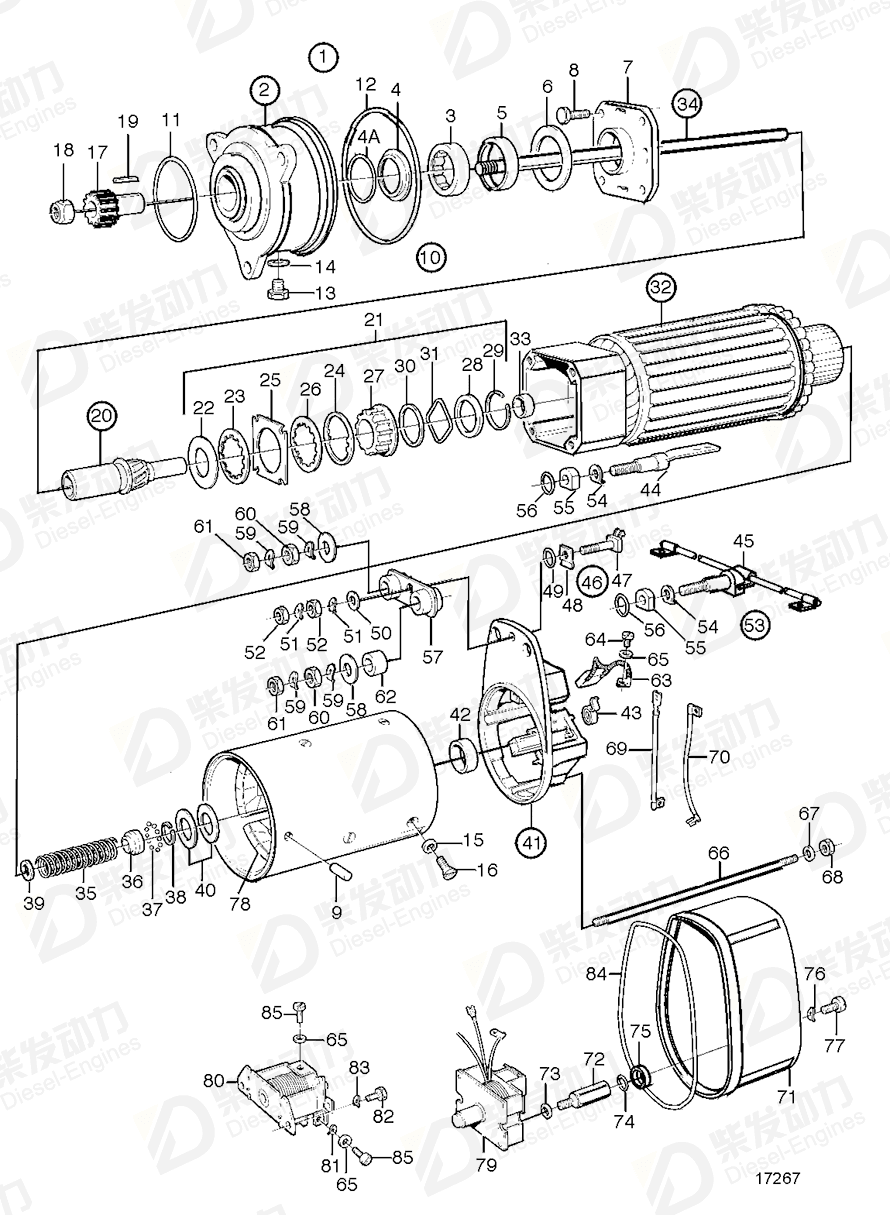

| No. | Part Name | Part Number | Qty | Description |
| 1 | Starter motor | 847308 | 1 | 24V |
| 1 | Starter motor | 881682 | 1 | |
| 1 | Starter motor, exch | 3803598 | 1 | |
| 2 | Bearing shield | 243319 | 1 | |
| 3 | Needle bearing | 240453 | 1 | |
| 4 | Sealing ring | 240450 | 1 | |
| 5 | Bearing bushing | 240455 | 1 | |
| 6 | Spacer washer | 240457 | 1 | |
| 7 | Bearing shield | 240456 | 1 | |
| 8 | Screw | 848095 | 4 | |
| 9 | Pin | 848092 | 1 | |
| 10 | Small parts kit | 273517 | 1 | |
| 16 | Screw | 848091 | 8 | |
| 17 | Starter pinion | 243180 | 1 | |
| 18 | Nut | 1696396 | 1 | |
| 19 | Key | 240473 | 1 | |
| 20 | Disc clutch | 244539 | 1 | |
| 21 | Small parts kit | 6644414 | 1 | |
| 32 | Anchor | 848093 | 1 | |
| 33 | Needle bearing | 243091 | 1 | |
| 34 | Rotor shaft | 6212793 | 1 | |
| 35 | Compression spring | 6212617 | 1 | |
| 36 | Stop ring | 6212622 | 1 | |
| 37 | Ball | 184453 | 11 | (844412) |
| 38 | Lock ring | 240471 | 1 | |
| 39 | Washer | 844410 | 1 | |
| 40 | Shim | 240486 | 1 | TH=0.3mm |
| 40 | Shim | 240487 | 1 | TH=0.5mm |
| 40 | Shim | 241904 | 1 | TH=0.2mm |
| 41 | Bearing | 843534 | 1 | |
| 42 | Bearing bushing | 240481 | 1 | |
| 43 | Brush spring | 240478 | 4 | |
| 44 | Terminal screw | 240479 | 1 | |
| 45 | Terminal screw | 243174 | 1 | |
| 46 | Small parts kit | 6643672 | 1 | |
| 4A | Spring | 240451 | 1 | |
| 53 | Small parts kit | 3094494 | 1 | |
| 63 | Brush set | 3094854 | 1 | |
| 63 | Carbon brush set | 6212621 | 1 | (6212707) |
| 64 | Screw | 6643679 | 4 | |
| 65 | Spring washer | 941905 | 8 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 66 | Bolt | 240483 | 1 | |
| 66 | Screw | 240638 | 3 | |
| 67 | Washer | 955892 | 4 | |
| 68 | Hexagon nut | 955781 | 4 | |
| 69 | Cable | 847987 | 1 | |
| 70 | Cable | 847988 | 1 | |
| 71 | Cover | 243324 | 1 | |
| 72 | Bolt | 243713 | 2 | |
| 73 | Washer | 6212619 | 2 | (240498) |
| 74 | Gasket | 870829 | 2 | |
| 75 | Washer | 848097 | 2 | |
| 76 | Spring washer | 941906 | 2 | |
| 77 | Cross recessed screw | 956094 | 2 | |
| 78 | Field winding | 6212791 | 1 | |
| 79 | Actuator solenoid | 241897 | 1 | |
| 80 | Starter solenoid | 241898 | 1 | |
| 81 | Washer | 940090 | 3 | |
| 82 | Hexagon screw | 955294 | 2 | |
| 83 | Spring washer | 941907 | 2 | |
| 84 | O-ring | 848096 | 1 | |
| 85 | Screw | 244218 | 4 |
| Item | Part Name | Part No. |
| 3 | Needle bearing 240453 | 240453 |
| Details | |
| Engine model | DH10A, DH10A 285, DH10A 360, DH10A Rail, THD102KD, THD102KB, THD102K-KB TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD610V, TWD610V, TD630VE, TWD630VE TD71A, TID71A, TWD731VE, TAD730V, TWD740VE TWD710V, TAD730V |
| Application | Starter Starter Motor, Components Starter Motor, Oil Proofed, Components STARTER MOTOR: 843510 STARTER MOTOR: 843511 Starter: 240347 Starter: 4774617 Starter: 843510 Starter: 843511 Starter: 870870 Starter: 870998 |
