Nipple 479954

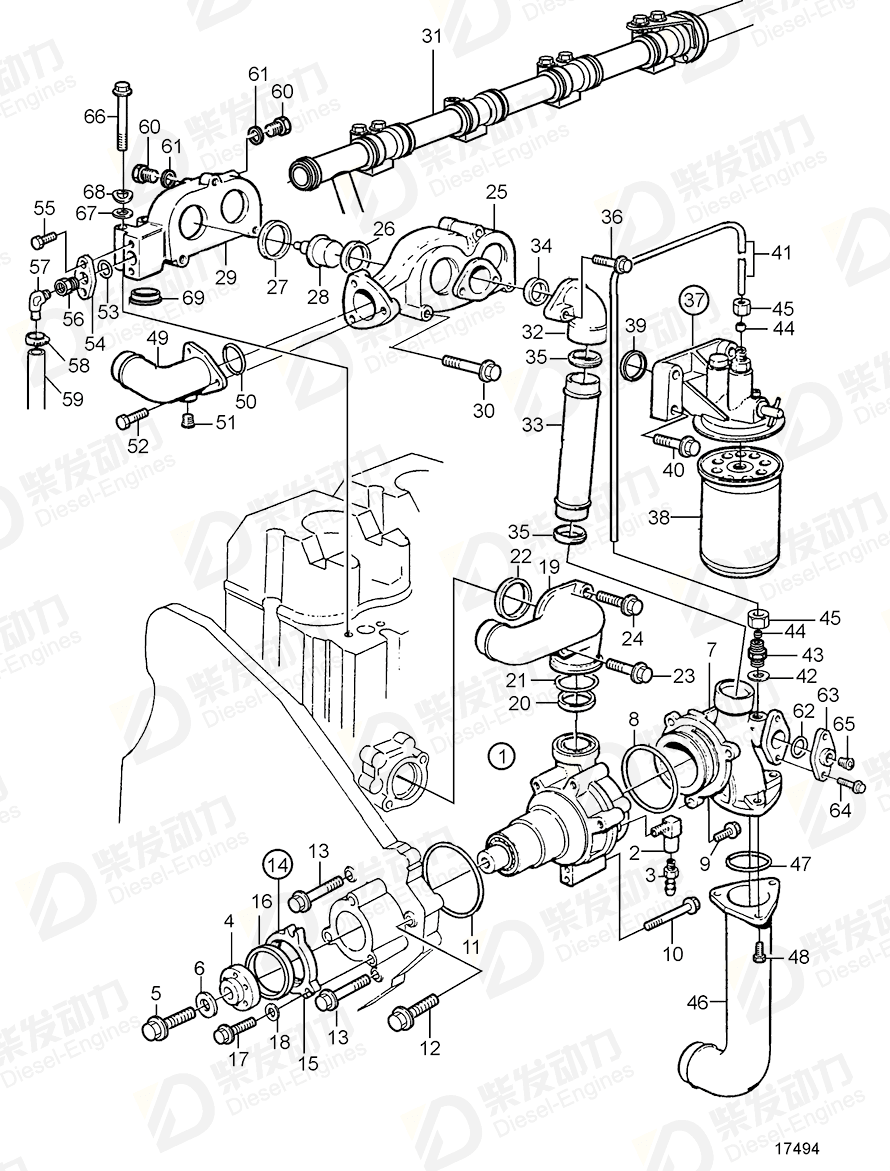

| No. | Part Name | Part Number | Qty | Description |
| 1 | Water pump | 1543380 | 1 | Replaced by 8149980., SN-XXXXXXXXXX/12948 |
| 1 | Coolant pump | 1556330 | 1 | Replaced by 8149980., SNXXXXX12949-24994 |
| 1 | Coolant pump | 3803305 | 1 | SNXXXXX24995- |
| 1 | Coolant pump | 8149980 | 1 | SNXXXXX24995- |
| 2 | Elbow nipple | 1543847 | 1 | |
| 3 | Shut-off cock | 947893 | 1 | |
| 4 | Hub | 1543891 | 1 | |
| 5 | Flange screw | 471555 | 1 | |
| 6 | Washer | 1543923 | 1 | L=75mm |
| 7 | Rear section | 1556080 | 1 | L=80mm |
| 8 | O-ring | 925096 | 1 | |
| 9 | Flange screw | 945444 | 3 | |
| 10 | Flange screw | 965183 | 2 | |
| 11 | O-ring | 925266 | 1 | Included in repair kit 3830711. |
| 12 | Flange screw | 965223 | 1 | L=75mm |
| 13 | Flange screw | 947790 | 2 | |
| 15 | Retainer | 1543539 | 1 | |
| 16 | Sealing ring | 1543908 | 1 | |
| 17 | Flange screw | 946470 | 3 | |
| 18 | Washer | 955894 | 3 | |
| 19 | Connecting pipe | 866159 | 1 | |
| 20 | Sealing ring | 1543573 | 1 | |
| 20 | Sealing ring | 1556397 | 1 | |
| 21 | Back-up ring | 1556412 | 1 | 75°C |
| 22 | Sealing ring | 1543172 | 1 | |
| 22 | Sealing ring | 1556389 | 1 | |
| 23 | Flange screw | 965182 | 1 | |
| 24 | Flange screw | 945444 | 1 | |
| 25 | Thermostat housing | 1556987 | 1 | |
| 26 | Sealing ring | 1544710 | 2 | |
| 27 | Sealing ring | 1544410 | 2 | |
| 28 | Thermostat | 3839110 | 2 | 75°C |
| 29 | Thermostat housing | 862141 | 1 | |
| 30 | Flange screw | 965184 | 3 | |
| 32 | Connecting pipe | 1556081 | 1 | (1661964) |
| 33 | Pipe | 1556082 | 1 | |
| 34 | Sealing ring | 1556949 | 1 | |
| 35 | Sealing ring | 1543572 | 2 | |
| 36 | Flange screw | 973924 | 2 | |
| 38 | Coolant filter | 20532237 | 1 | |
| 39 | Sealing ring | 469846 | 1 | |
| 40 | Flange screw | 946671 | 4 | |
| 41 | Tube | 1556088 | 1 | |
| 42 | Gasket | 957178 | 1 | |
| 43 | Nipple | 941754 | 1 | |
| 44 | Ferrule | 956969 | 2 | |
| 45 | Fitting nut | 956983 | 2 | |
| 46 | Coolant pipe | 849739 | 1 | |
| 47 | O-ring | 925255 | 1 | |
| 48 | Flange screw | 945444 | 3 | |
| 49 | Tube | 862103 | 1 | (190130) |
| 50 | O-ring | 925255 | 1 | |
| 51 | Plug | 479977 | 1 | |
| 52 | Flange screw | 945444 | 3 | |
| 53 | Sealing ring, pipe bend | 469482 | 1 | (424346) |
| 54 | Flange | 471705 | 1 | |
| 55 | Flange screw | 946173 | 2 | |
| 56 | Nipple | 479954 | 1 | (190130) |
| 57 | Hose nipple, air venting | 947681 | 1 | (942758) |
| 58 | Hose clamp | 994556 | 2 | |
| 59 | Rubber hose | 943366 | 1 | L=600mm late type |
| 60 | Plug | 960632 | 2 | |
| 61 | Gasket | 11998 | 2 | |
| 62 | Sealing ring | 1543577 | 1 | |
| 63 | Flange | 849649 | 1 | |
| 64 | Flange screw | 945444 | 2 | |
| 65 | Plug | 479977 | 1 | |
| 66 | Hexagon screw | 100222 | 3 | |
| 67 | Washer | 191172 | 3 | Spec.867054, 867221. |
| 68 | Spring washer | 941907 | 3 | |
| 69 | Sealing ring | 1543566 | 2 | O.S=32,5mm |
| Item | Part Name | Part No. |
| 56 | Nipple 479954 | 479954 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V, TWD1031VE TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230P, TWD1210P, TWD1211P TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TAD1630P TAD1630V TAD1630V, TWD1630V TAD730G TAD730P TAD730V TD100G-87 TD1010G, TWD1010G TD1030ME TD1030VE, TAD1030V, TWD1031VE TD1210G TD1210G, TWD1210G, TWD1211G TD121G-87, TWD1210V, TWD1211V, TAD1230V TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE TD121GP-87 TD121GP-87, TWD1211P TD610G, TWD610G TD610M TD610V TD61A, TD61AW, TD61ACE, TD61AG, TD61AP TD630ME TD630VE TD640VE TD710G, TWD710G TD71A, TD71AW, TD71ACE, TD71AG, TD71AP TD71A, TID71A, TWD710V TD730ME, TWD731ME TD730VE, TWD731VE TID162AG, TID162AGP, TID162AP, TID162APB TID61AG TWD1030ME TWD1210G, TWD1211G TWD1210P TWD1230ME TWD1230VE, TWD1231VE TWD1231VE TWD1620G TWD1630G TWD1630P TWD1630V TWD610P TWD610V TWD630ME TWD630VE TWD710P TWD730ME TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Cylinder Block Cylinder Block and Related Parts Cylinder Block SN-2071097292: A Cylinder Block SN-2071097292: B Cylinder Block SN2071097293-: A Cylinder Block SN2071097293-: B Cylinder Block, Earlier Production Cylinder Block: 422960 Cylinder Block: 479650 Cylinder Block: 479752 Cylinder Block: A Cylinder Block: B Cylinder Block: C Cylinder Block: SN-2071097292 Cylinder Block: SN2071097293- Radiator and Fan, Earlier Prod. Thermostat Housing Water Pump and Thermostat Water Pump and Thermostat Housing Water Pump and Thermostat Housing, Earlier Prod. Water Pump and Thermostat Housing, Later Prod.: A Water Pump and Thermostat Housing, Later Prod.: B Water Pump and Thermostat Housing, Later Prod.: C Water Pump and Thermostat Housing, SN-XXXXXXXXXX/6060 Water Pump and Thermostat Housing, SNXXXXXXXXXX/6061- Water Pump and Thermostat SN-XXXXXXXXXX/21158 Water Pump and Thermostat SNXXXXXXXXXX/211549-: A Water Pump and Thermostat SNXXXXXXXXXX/211549-: B Water Pump and Thermostat: A Water Pump and Thermostat: B Water Pump, Thermostat and Fan Bearing |
| Specification | |
| Descriptions | (190130) (3826916) Late type |
